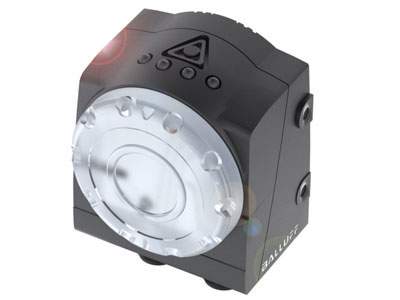

BVS001F (BVS UR-3-105-E)
BVS-E Universal vision sensor. Focal length: 6.0 mm
- BVS-E vision sensor provides reliable fault detection and exact quality control for parts and products
- They are extremely economical in doing so: multiple features can be checked at the same time and changeover times can be reduced to a minimum by simply changing the inspection task for changing lots
Datasheet
Product Specification
| Product group | BVS-E Universal vision sensor |
| Focal length | 6.0 mm |
| Image resolution | VGA 640 x 480 pixels |
| Sensor type | Vision CMOS image sensor black-white |
| Range | 50...1000 mm |
| Field of view | 34 x 25 mm ... 676 x 507 mm |
| Housing material | Aluminum, die-cast ABS |
| Light type | Infrared |
| Dimension | 51.5 x 70 x 40 mm |
| Switching output | 3x PNP normally open (NO) |
| Interface | RS232 (9.6...115.2 kBaud) |
| Connection | Connection 1 M12x1-Male, 8-pole, A-coded Connection 2 M12x1-Male, 4-pole, D-coded |
| Operating voltage Ub | 22...26 VDC |
| Ambient temperature | -10...55 °C |
| Approval/Conformity | CE, cULus |
| IP rating | IP54 |
