BVS001H (BVS UR-3-101-E)

BVS-E Universal vision sensor. Focal length: 8.0 mm

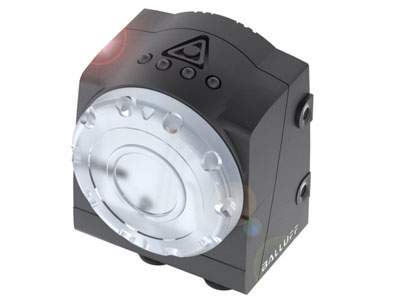

Anewtech Systems Machine Vision Balluff BVS E Universal vision sensor BVS001H
  • BVS-E vision sensor provides reliable fault detection and exact quality control for parts and products
  • They are extremely economical in doing so: multiple features can be checked at the same time and changeover times can be reduced to a minimum by simply changing the inspection task for changing lots
Product Specification
Product groupBVS-E Universal vision sensor
Focal length16.0 mm
Image resolutionVGA 640 x 480 pixels
Sensor typeVision CMOS image sensor black-white
Range50...1000 mm
Field of view24 x 18 mm ... 480 x 3600 mm
Housing materialAluminum, die-cast ABS
Light typeLED, red light
Dimension51.5 x 70 x 40 mm
Switching output3x PNP normally open (NO)
InterfaceRS232 (9.6...115.2 kBaud)
ConnectionConnection 1 M12x1-Male, 8-pole, A-coded
Connection 2 M12x1-Male, 4-pole, D-coded
Operating voltage Ub22...26 VDC
Ambient temperature-10...55 °C
Approval/ConformityCE, cULus
IP ratingIP54
