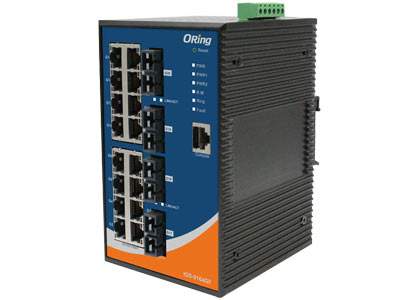

O-IGS-9164FX/9164GF
Industrial 20-port managed Gigabit Ethernet switch with 16x10/100/1000Base-T(X) and 4x100Base-FX, multi-mode, 2Km/1310nm
- Supports O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
- Open-Ring support the other vendor's ring technology in open architecture
- O-Chain allow multiple redundant network rings
- *note Supports standard IEC 62439-2 MRP (Media Redundancy Protocol) function
- Supports IEEE 1588v2 clock Synchronization
- Supports IPV6 new internet protocol version
- Supports Modbus TCP protocol
Datasheet
Product Specification
| Model | IGS-9164GF-MM-SC | IGS-9164GF-SS-SC | IGS-9164FX-MM-SC | IGS-9164FX-SS-SC |
| Physical Ports | ||||
| 10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX | 16 | 16 | 16 | 16 |
| Fiber Ports Number | 4 | 4 | 4 | 4 |
| Fiber Ports Standard | 1000Base-SX | 1000Base-LX | 100Base-FX | 100Base-FX |
| Fiber Mode | Multi-mode | Single-mode | Multi-mode | Single-mode |
| Fiber Diameter (μm) | 62.5/125 μm 50/125 μm | 9/125 μm | 62.5/125 μm 50/125 μm | 9/125 μm |
| Fiber Optical Connector | SC | SC | SC | SC |
| Typical Distance (km) | 0.55 km | 10 km | 2 km | 30 km |
| Wavelength (nm) | 850 nm | 1310 nm | 1310 nm | 1310 nm |
| Max. Output Optical Power (dBm) | -4 dBm | -3 dBm | -14 dBm | -8 dBm |
| Min. Output Optical Power (dBm) | -9.5 dBm | -9.5 dBm | -23.5 dBm | -15 dBm |
| Max. Input Optical Power (Saturation) | 0 dBm | -3 dBm | 0 dBm | 0 dBm |
| Min. Input Optical Power (Sensitivity) | -18 dBm | -20 dBm | -31 dBm | -34 dBm |
| Link Budget (dB) | 8.5 dB | 10.5 dB | 7.5 dB | 19 dB |
| Technology | ||||
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol ) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) | |||
| MAC Table | 8K | |||
| Priority Queues | 8 | |||
| Processing | Store-and-Forward | |||
| Switch Properties | Switching latency: 7 us Switching bandwidth: 40Gbps Max. Number of Available VLANs : 4095 VLAN ID Range : 1 to 4094 IGMP multicast groups: 256 for each VLAN Port rate limiting: User Define | |||
| Jumbo frame | Up to 9.6K Bytes | |||
| Security Featues | Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q ) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Https / SSH enhance network security | |||
| Software Features | STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging IGMP Snooping IP-based bandwidth management Application-based QoS management DOS/DDOS auto prevention Port configuration, status, statistics, monitoring, security DHCP Server/Client/Relay SMTP Client Modbus TCP | |||
| Network Redundancy | O-Ring Open-Ring O-Chain *note MRP MSTP (RSTP/STP compatible) | |||
| RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1 | |||
| LED Indicators | ||||
| Power Indicator(PWR) | Green : Power LED x 3 | |||
| Ring Master Indicator (R.M.) | Green : Indicates that the system is operating in O-Ring Master mode | |||
| O-Ring Indicator (Ring) | Green : Indicates that the system operating in O-Ring mode Green Blinking : Indicates that the Ring is broken. | |||
| Fault Indicator (Fault) | Amber : Indicate unexpected event occurred | |||
| 10/100/1000Base-T(X) RJ45 Port Indicator | Up Green LED for Link/Act indicator. Down dual color LED : Green for 1000Mbps indicator, Amber for 10/100Mbps indicator | |||
| 1000Base-X Fiber Port Indicator (IGS-9164GF series model only) | Green for port Link/Act. | |||
| 100Base-FX Fiber Port Indicator (IGS-9164FX series model only | Green for port Link/Act. | |||
| Fault Contact | ||||
| Relay | Relay output to carry capacity of 1A at 24VDC | |||
| Power | ||||
| Redundant Input Power | Dual DC inputs. 12~48 VDC on 6-pin terminal block | |||
| Power Consumption (Typ.) | 16.32 Watts | 18.5 Watts | ||
| Overload Current Protection | Present | |||
| Reverse Polarity Protection | Present | |||
| Physical Characteristics | ||||
| Enclosure | IP-30 | |||
| Dimensions (W x D x H) | 96.4 (W) x 105.5 (D) x 154 (H) mm (3.8 x 4.15 x 6.06 inch) | |||
| Weight (g) | 1243 g | 1228 g | ||
| Environmental | ||||
| Storage Temperature | -40 to 85°C (-40 to 185°F) | |||
| Operating Temperature | -40 to 75°C (-40 to 167°F) | |||
| Operating Humidity | 5% to 95% Non-condensing | |||
| Regulatory Approvals | ||||
| EMI | FCC Part 15, CISPR (EN55022) class A | |||
| EMS | IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 | |||
| Shock | IEC60068-2-27 | |||
| Free Fall | IEC60068-2-32 | |||
| Vibration | IEC60068-2-6 | |||
| Safety | EN60950-1 | |||
O-IGS-9164GF/FX series are managed redundant ring Ethernet switch with 16x10/100/1000Base-T(X) ports and 4-port fixed optical fiber port. O-IGS-9164GF provided 4x1000Base-X fiber ports and IGS-9164FX provided 4x100Base-FX fiber ports. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) /Open-Ring/O-Chain/*note MRP/Fast Recovery and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40 oC to 75°C. O-IGS-9164GF/FX series can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.
