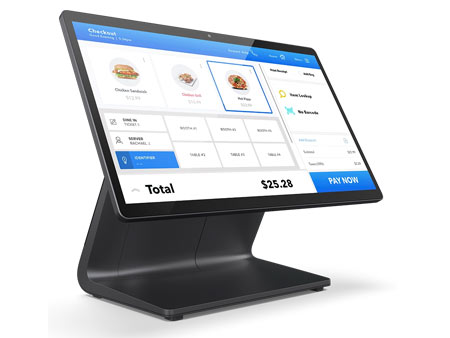

EloPOS Z30 with Intel
15.6-inch full HD interactive display. Intel Elkhart Lake J6426
Built on Elo’s unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connectivity hub, contained cable routing, optional customer-facing touchscreen display and your choice of Windows 10, ChromeOS Flex and Linux, the EloPOS Z30 brings one of the sleekest form factors to the market.
- 15.6-inch full HD interactive display.
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Intel Elkhart Lake J6426
Datasheet
| Part Number(s) | EloPOS Z30, No OS, with CFD: E984463 EloPOS Z30, Windows 10, with CFD: E984657 EloPOS Z30, No OS, without CFD: E984089 EloPOS Z30, Windows 10, without CFD: E984275 |
| Enclosure Color | Dark Gray Metallic |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 10 Touch |
| Processor | Intel Elkhart Lake J6426 |
| Graphics | Intel UHD Graphics |
| BIOS | AMI |
| Memory (RAM) | 8GB 3200MHz DDR4 SO-DIMM on 1 slot (Expandable to 32 GB maximum on 1 slot) |
| Storage | 128GB M.2 NVME SSD (GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less) |
| OS | No OS Windows 10 IoT Enterprise LTSC 64-bit |
| OS Languages | Windows 10 – 36 Language groups |
| Control Buttons | Power button |
| Diagonal Size | 15.6'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area | 13.55" x 7.62" / 344 mm x 194 mm |
| Resolution | 1920 x 1080 @ 60Hz |
| Number of Colors | 16.2 million |
| Brightness (typical) | LCD Panel: 300 nits TouchPro PCAP: 255 nits |
| Response Time-total (typical) | 25 ms |
| Contrast Ratio | 1000:1 |
| Viewing Angle | Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total |
| I/O Ports | I/O ports on display: USB-C Connector Supports USB 2.0/3.0, DP output (Requires 20V/40W USB-C Power Delivery 2.0 if not using IO Hub for power) I/O ports on stand: DC in Jack 4x USB3.0 LAN RJ45 (Gigabit) (wo Wake on Lan at S5 support) RJ12 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by BIOS) Powered USB 24V Full-function USB-C (Power up to 27W, USB 3.0, Display Port) (non-CFD model only) |
| Integrated Customer-Facing Display | Size - 10.1 inch Resolution - 1200 x 1920 Active Display Area - 5.33" x 8.53" / 135.36 mm x 216.58 mm Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total Brightness - LCD Panel: 450 nits, TouchPro PCAP: 387 nits Number of Colors - 8-bit (16.7M) Touch Technology - TouchPro PCAP Sealing - Touchscreen sealed to LCD Number of Touches - 10 |
| Webcam | 8MP Max Resolution: 1920x1080 30fps Auto Focus |
| Wireless | 802.11 a/b/g/n/ac/ax 2.4GHz and 5GHz and 6GHz |
| Bluetooth | Bluetooth 5.2 |
| Antenna | 2T2R design |
| Microphone | Digital Microphone |
| Speakers | 2x 2W internal speakers |
| Trusted Platform Module (TPM) | TPM 2.0 |
| Power Supply | External 24VDC universal-type power supply brick AC input voltage: 100-240 VAC Input frequency: 50-60 Hz Maximum output power: 150W |
| Power Consumption (Typical) | ON With CFD: 40W ON Without CFD: 32W SLEEP: <2.0W OFF: <0.5W |
| Dimensions | 14.3" x 17.6" x 7.10" / 362.8 mm x 298.7 mm x 180.4 mm |
| Shipping Box Dimensions | 18.11" x 10.63" x 15.71" / 460 mm x 270 mm x 399 mm |
| Weight (Unpackaged) | 8.8 lbs / 4 kg |
| Weight (Packaged) | 14.1 lbs / 6.4 kg |
| Operating Temperature | 0°C to 35°C / 32°F to 95°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 10% to 90% Storage: 0% to 95% (38.7℃ max wet bulb temperature) |
| Regulatory approvals and declarations | UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA |
| Real-Time Clock | CR2450 lithium metal battery |
| MTBF | 50,000 hours demonstrated |
| Warranty | 3-year |
| Extended Service Options | 4 year Warranty Coverage – Elo P/N: E819598 5 year Warranty Coverage – Elo P/N: E819795 3 year Warranty Coverage + AUR – Elo P/N: E820186 4 year Warranty Coverage + AUR – Elo P/N: E820388 5 year Warranty Coverage + AUR – Elo P/N: E820582 |
| What's in the Box | EloPOS Z30 North American Power Cable European Power Cable Quick Install Guide 150W Power Brick 2x Zip Ties M4x8 flat head screw 2x M4x6 mm Flat head screw (Backup) Base Plate – for mounting to a countertop |
| Stands, Mounts & Kits | 0702L - Elo P/N: E796382 1002L - Elo P/N: E155834 1002L - Elo P/N: E324341 1302L - Elo P/N: E683595 1502L - Elo P/N: E125496 |
EloPOS Z30 with Intel

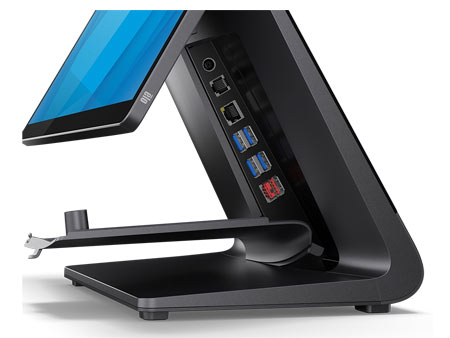

Integrated I/O
From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.
Powerful Touchscreen
The EloPOS Z30 offers a fully integrated 15.6-inch full HD interactive display.

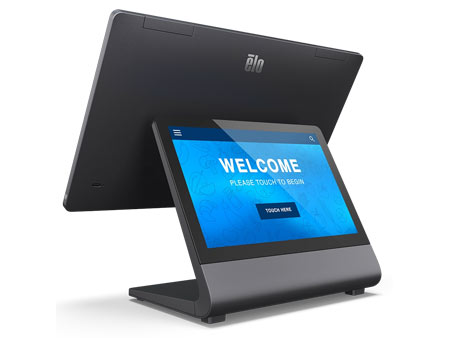

Interactive display for customers
With an integrated CFD, customers can review transactions, participate in loyalty programs and see the promotions.
Commercial-grade performance
Built with Intel 11th Generation processors and integrated Trusted Platform Modules
