WM-W24L100-MRA1ID3S

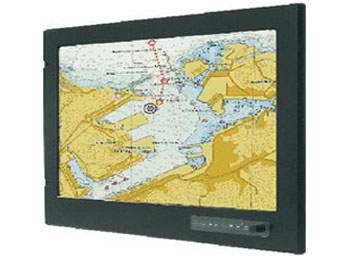

24" Marine Panel PC. Intel Dual Core Atom N2600 Processor

Anewtech-marine-panel-pc-WM-W24L100-MRA1ID3S

Features

  • Intel® Dual Core Atom N2600 Platform
  • Fanless Design
  • Dimming knob control backlight brightness from nearly 0% to 100%
  • High Brightness technology enhance visibility
  • Panel (flush) mount IP66 aluminum housing with powder coating design (IP54 rear)
  • 9 to 36V DC power input acceptable
  • High quality touchscreen / AR protection glass for option
  • Ease of use front panel OSD control
  • Enhanced shock and vibration resistance

Specification

TFT Characteristics
Size 24"
Resolution 1920x1080
Pixel Pitch (RGB) 0.276 (H) x 0.276 (V) mm
Contrast Ratio 5000:1
Brightness 250 nit(typ.)
Viewing Angle -89 ~ 89(H) ; -89~89(H)
Active Display Area 531.36mm(H)x 298.89mm(V)
Max Colors 16.7M,8bit
System Specifications
Processor Intel® Dual Core Atom N2600 1.6GHz
BIOS AMI 4Mbit Flash
Chipset Intel NM10 express chipset
Memory 1 x DDR3 800/1066MHz SODIMM,(Max 4GB)
SATA 1 x SATA2
Ethernet Dual Broadcom BCM57780 GbE controller
VGA 1x VGA Connector
Audio Realtek ALC886 HD Audio Codec
USB Port 2 x USB2.0
Serial Port 4 x RS232, 1 x RS232/422/485
Storage 32GB SSD
Expansion slot 4xRS232 or 4xIsolate RS422/485(optional)
Power Considerations
Power Supply Options 9 to 36 V DC power supply with terminal block.
Power Consumption 100 W typical, normal operation
Mechanical Specification
Operating Temperature -15 to 55 deg.C
Operating Humidity 5% to 95% (non condensing)
Anti-Vibration 5Hz~500Hz / 1Grms/3 Axis
Anti Shock 15G, 11ms duration
I/O Connectors
Ethernet LAN 2 x RJ 45-10/100/1000 Mbps
COM 1 x RS232/422/485
USB 2 x USB Type-A Receptacle
RGB Out 1 x VGA 15P DSUB (female)
Power Input 1 x DC Terminal block
Available Options
Mechanical Options Panel (Flush) mount with IP66
Touch Screen Options 5 Wire Resistive
AR Safety Glass Option 3mm Anti-reflective protection glass
VESA Mounting Yes
Standards and Certification
Certification IEC60945, DNV2.4, IACS-E10, CE, FCC
