A-NUC-ADN
Intel® Alder Lake-N Fanless NUC System
- Intel® Alder Lake-N Processor
- Single Memory Socket, Max. Up to 16GB DDR5 4800 MHz
- Support 2.5” Storage, Key-E for Wi-Fi (CNVi), dTPM 2.0
- Dual Intel® 2.5 Gigabit Ethernet
- Max. 3-Display (2-HDMI 2.0b, 1-DP from Type C)
- Max. 5-USB 3.2 (4-Type A, 1-Type C)
Datasheet
Product Specification
| System Information | |
| Processor | Intel® Processor N97(4-Core, 6M, 12W) |
| System Memory | 1 x 262-pin SODIMM Socket Max. up to 16GB DDR5 4800 MHz |
| I/O Chipset | ITE IT5782VG |
| BIOS Information | AMI 256Mb UEFI BIOS |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step |
| H/W Status Monitor | Monitoring CPU Temperature, Voltage with Auto Throttling Control |
| TPM | TPM 2.0 |
| SBC | NUC-ADN |
| Expansion | |
| M.2 | 1 x M.2 Key-E 2230 (PCIe, USB 2.0, CNVi) |
| Storage | |
| 2.5 Drive Bay | 1 x 2.5” Drive Bay (7mm) |

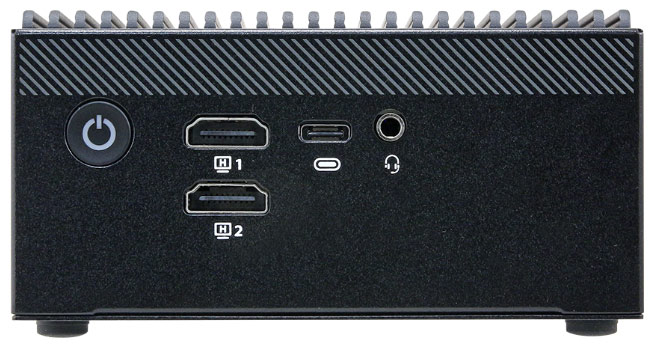

| Front I/O | |
| USB | 1 x USB3.2 Gen 2 type C, support DP/PD Max. 30W |
| Power Button | 1 x Power Button w/LED |
| LAN Port | 2 x RJ45 |
| Audio | 1 x Audio Jack (Mic-in+Line-out) |
| HDMI | 2 x HDMI 2.0b |
| Rear I/O | |

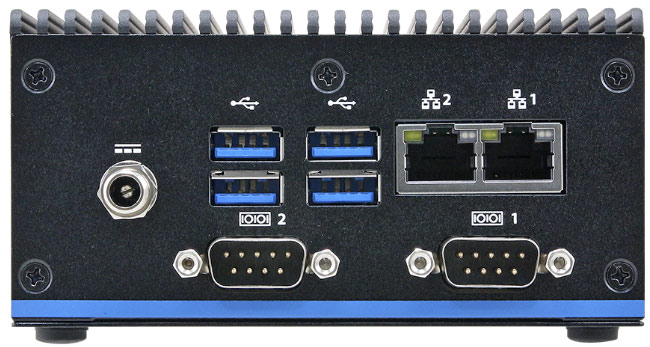

| USB | 4 x USB3.2 Gen 2 |
| COM Port | 1 x RS232/422/485 (BIOS) 1 x RS232 |
| LAN Port | 2 x RJ45 w/LED |
| AC/DC Input | 1 x Lockable DC Jack |
| Right I/O | |
| Antenna | 2 x Antenna Mounting with Dust Cover |
| Display | |
| Graphic Chipset | Intel® UHD Graphics |
| Resolution | HDMI 2.0b: 4096x2160@60Hz |
| Audio | |
| Audio Codec | Realtek ALC888S |
| Ethernet | |
| LAN Chipset | 2 x Intel® Ethernet Controller I226V |
| Data Rate Per Port | 10/100/1000/2.5G Base-Tx GbE compatible |
| Power Requirement | |
| Voltage Input Spec. | +12V DC-in |
| Voltage Input Connector | 1 x Lockable DC Jack |
| ACPI | Single power ATX support S0, S3, S4, S5 |
| Power Mode | AT/ATX (ATX is default setting) |
| Adapter | 60W AC to DC Adapter (Default)/ 120W AC to DC Adapter (Option) Note1: 60W for general mode (w/o Type C PD workload) Note2: 120W for full load mode (w/Type C PD workload) |
| Software Support | |
| OS | Win10, Win11, Linux |
| Certification | |
| Certification Information | CE/FCC Class B, UKCA |
| Mechanical & Environmental | |
| Operating Temp. | 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow |
| Storage Temp. | -30°C ~ 70°C (-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 115mm x 111.2mm x58mm (4.58"x 3.78" x 2.28") |
| Vibration Test | With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis |
| Shock Test | With SSD: 55G, IEC 60068-2-27, Half Sine, 11ms, Z Axis |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces |
| Onboard I/O | |
| COM Port | 2x2x5P 1.27mm header (RS-232, RS-232/422/485) |
| EC Debug | 1x1x3P 2.0mm header |
| Front Panel | 1x2x5P 1.27mm header (Include buzzer function) |
| SATA Signal | 1x1x7P SATA Connector |
| eSPI | 1x2x5P 1.27mm header |
| RTC Battery | 1x1x2P 1.25mm wafer reserved for the wired RTC battery *The lifetime of the RTC battery selecting needs to meet the DQV standard. |
| AT/ATX Selector | 1x1x3P 2.0mm header (AT/ATX) |
| SATA PWR | 1x1x2P 2.0mm wafer |
Ordering Information
| Part No. | Description |
| NUC-ADN-N97-A1-1R | Intel® Alder Lake N97 Fanless NUC System |
