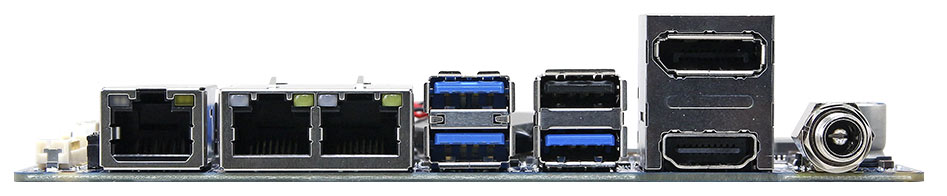

A-ECM-TWL3
Intel® Processor N150, N250, & Intel® Core™ 3 Processor N355 3.5”Micro Module
- Onboard Intel® Processor N150, N250, & Intel® Core™ 3 Processor N355
- Top Layer Soldered Processor
- Triple Display, DP 1.4a, HDMI 2.0b, 1 x 2CH LVDS/eDP
- 2 x Intel® I210AT Gigabit Ethernet, 1 x Intel® I226V 2.5 Gigabit Ethernet
- Triple Expansion Slot, M.2 Key-B, M.2 Key-E, M.2 Key-M
- DC in +9V ~ +36V

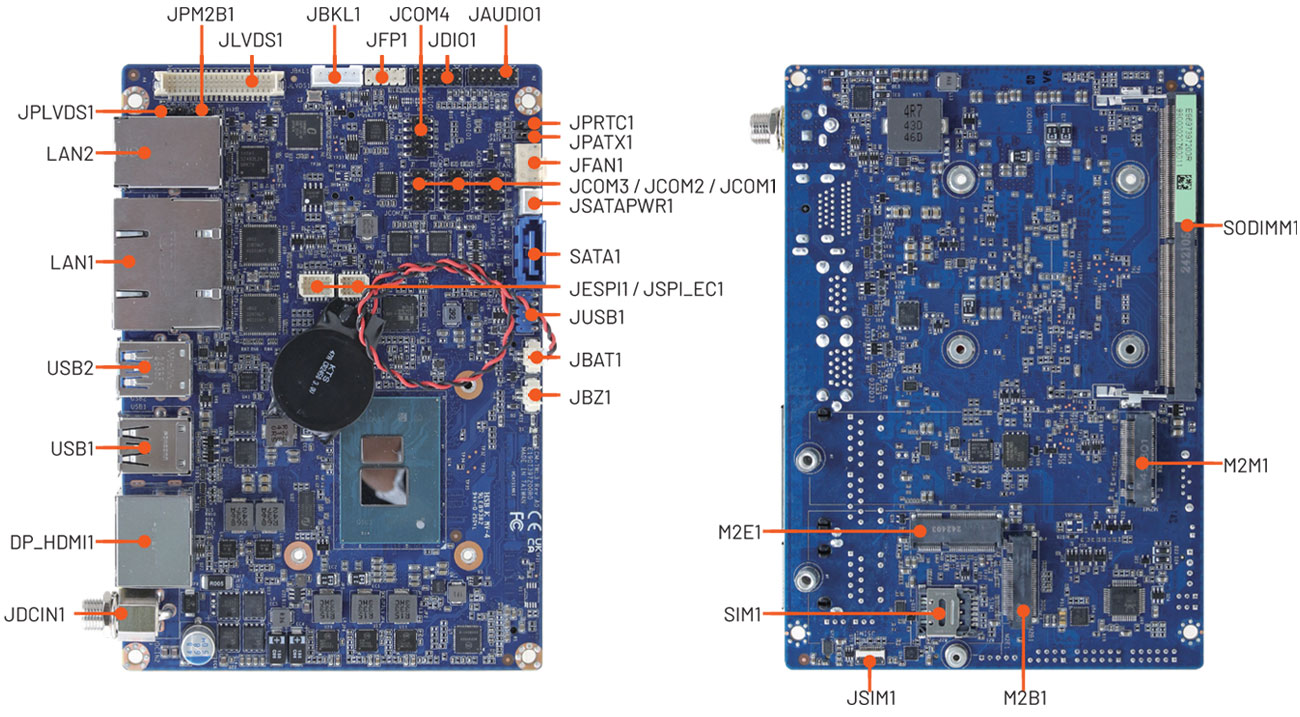

Product Specification
| System Information | |
| Processor | Onboard Intel® Processor N150, N250, & Intel® Core™ 3 Processor N355 |
| System Memory | 1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB Max. |
| I/O Chipset | EC iTE IT5782VG |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step |
| BIOS | AMI BIOS, 256Mbit SPI Flash ROM |
| H/W Status Monitor | CPU temperature monitoring Voltages monitoring CPU fan speed control |
| TPM | Onboard NuvoTon_NPCT760AABYX, co-lay Infineon_ SLB9670VQ2.0 |
| Board | 3.5" |
| Expansion | |
| Expansion | 1 x M.2 Key B 3042/3052, BOM Optional PCIe x 1 or USB3.2 Gen1 + USB2.0 (default USB3.2), support 5G (3.3V & 3.8V), 1 x SIM card slot, support WWAN+GNSS or SSD 1 x M.2 Key E 2230 support WiFi (1 x PCIe x 1, USB2.0 Signal), CNVi not support Twin Lake & Amston Lake, only support Alder Lake processor 1 x M.2 Key M 2242/2280 (1 x PCIe Gen3 x1 / SATA auto detection) |
| Storage | |
| Storage | 1 x M.2 (Key M, 2242/2280) 1 x M.2 (Key B, 3042/3052) 1 x SATA III |
| Display | |
| Graphic Chipset | Intel® UHD Graphics |
| Spec. & Resolution | HDMI 2.0b Max resolution 4096 x 2160@60Hz DP 1.4 Max resolution 4096 x 2160@60Hz LVDS 1920 x 1080 Dual channel 18/24-bits or eDP 1920 x 1080@60Hz (2 Lanes) |
| Multiple Display | Triple Display |
| LVDS | 1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS |
| Audio | |
| Audio Codec | Realtek ALC888S HD Audio Decoding Controller |
| Audio Interface | Line-out, Line-in, Mic-in |
| Ethernet | |
| LAN Chipset | 2 x Intel® I210AT 1 x Intel® I226V |
| Ethernet Interface | 10/100/1000/2.5G Base-Tx GbE compatible |
| LAN Port | 3 x RJ-45 |
| Power Requirement | |
| Power Mode | AT/ATX (Default Setting: AT) |
| Software Support | |
| OS | Windows 11, Linux |
| Certification | |
| Certification Information | CE, FCC, RoHS Compliant |
| I/O | |
| USB | 3 x USB3.2 Gen2, 1 x USB2.0 at I/O 2 x USB2.0 by pin header |
| COM Port | 2 x RS-232/RS422/RS485 2 x RS-232 |
| SATA | 1 x SATA III |
| DIO | 1 x 8-bit GPIO |
| MIO | 2 x 6 pin for eSPI 1 x SIM Card Slot |
| Mechanical & Environmental | |
| Operating Temp. | 0°C ~ 60°C (-4~140°F) with 0.5m/s Air Flow |
| Storage Temp. | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.44lbs (0.2kg) |
| Power Requirement | DC in +9V ~ +36V |
| Dimension (L x W) | 5.7" x 4" (146mm x 101mm) |
