P-DCO-1000-ASL
DIN-Rail Fanless Embedded Computer with Intel® Atom® CPU, 2x DP, 2x COM, 4x USB, 4x LAN
- Support Intel® Atom® x7433RE Processor
- 1x 262-pin DDR5 SODIMM. Max. up to 16GB
- Dual Independent Display by 2x Display Port
- 4x 2.5GbE LAN
- 1x M.2 (B Key, 3042/3052, PCIe x2, support NVMe)
- 1x M.2 (B Key, 3042/3052, USB 3.2 Gen2 & USB2.0, support 4G/5G Module)
- 2x RS-232/422/485, 2x USB 3.2 Gen2, 2x USB 2.0
- 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -40°C to 55°C
- TPM 2.0 Supported
- UL 61010-1, UL 61010-2-201, CE, FCC Class A, UKCA, ICES-003
Datasheet
| System | |
| Processor | Support Intel® Atom® Processor (Up to 9W TDP) Intel® Atom® Processor x7433RE, Quad Core, CPU HFM 1.5 GHz/1C Turbo 3.2GHz, GPU 32EU, TDP 9W Intel® Atom® Processor x7835RE, Eight Core, CPU HFM 1.0 GHz/1C Turbo 3.6GHz, GPU 32EU, TDP 12W |
| System Chipset | SoC integrated |
| LAN Chipset | 2.5 GbE1: Intel I226 2.5 GbE2: Intel I226 2.5 GbE3: Intel I226 2.5 GbE4: Intel I226 (Support TSN) (LAN #1-2 Shared PCIe Gen 2 x1 Lane bandwidth) |
| System Memory | 1x 262-Pin DDR5 4800MHz SODIMM. Max. up to 16GB (In-Band ECC Supported) |
| Graphics | Intel® UHD Graphics |
| BIOS | AMI SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 2x DisplayPort 1.4, DP (4096 x 2160@60Hz) |
| Multiple Display | Dual Display |
| Storage | |
| M.2 | 1x M.2 (B Key, 3042/3052, PCIe x2, support NVMe), Default 128G SSD |
| SIM Socket | 1x Dual Nano SIM Socket |
| Expansion | |
| M.2 | 1x M.2 (B Key, 3042/3052, USB 3.2 Gen2 & USB2.0, support 4G/5G Module) 1x M.2 (E Key, 2230, PCIe x1 & USB2.0, support Wifi/Bluetooth) |
| Operating System | |
| Windows | Windows 10/Windows 11 |
| Linux | Linux kernel 6.2 |
| I/O | |
| CAN | 2x 2-pin Internal header (Optional) |
| COM | 2x RS-232/422/485 |
| DIO | 4 in / 4 out (Isolated) |
| LAN | 4x RJ45 |
| OOB | 1x RJ45 (Optional) |
| USB | 2x USB 3.2 Gen 2 (10 Gbps) 2x USB 2.0 |
| Others | 4x WiFi Antenna Holes 1x Power Switch, 1x Reset Switch 1x AT/ATX Internal Switch Jumper 1x 2-PIN Remote Power On/Off 1x Internal CMOS Battery Cable |
| Power | |
| Power Adapter | Optional AC/DC 12V/5A, 60W |
| Power Mode | AT, ATX |
| Power Supply Voltage | 9~36VDC |
| Power Connector | 3-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -40°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 61010-1, UL 61010-2-201 CE, FCC Class A, UKCA, ICES-003 |
| Vibration | DIN-Rail Wall Mount with NVMe SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis DIN-Rail Mount with NVMe SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis |
| Shock | With SSD: 20G, half sine, 11ms |
| Physical | |
| Dimensions (W x D x H) | 150 x 105 x 50 mm |
| Weights | 0.85 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | DIN-Rail Mounting Wall Mounting |
DCO-1000-ASL Series: DIN-Rail Fanless Embedded Computer
DCO-1000-ASL with fanless, compact and DIN-Rail mounted design features the Intel Atom x7433RE processor, ensuring powerful performance and energy efficiency. Ideal for space-constrained installations requiring high reliability, the DCO-1000-ASL excels in advanced data processing at the edge, making it essential for successful IoT implementations in demanding industrial settings.
- Small Form Factor with DIN-Rail Mounting
- Doubling Performance with DDR5 Memory
- Support Up to 4x 2.5 GbE LAN
- OOB (Out-of-Band) Module for Remote Management
Small Form Factor Design & Din rail Mounting
- Ultra-Compact Design (150x105x49mm): Maximizes space efficiency in tight areas

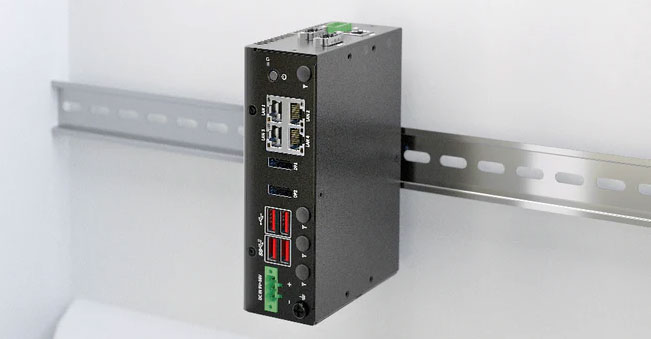

- Din-Rail Mounting: Enables quick, secure installations and easy maintenance
Intel® Atom® x7433RE/x7835RE Processor
| Processor | X7433RE | X7835RE |
| Cores | 4 | 8 |
| Max TDP | 9 W | 12 W |
| CPU Max Turbo Frequency | 3.4 GHz | 3.6 GHz |
| Graphics Max Dynamix Frequency | 1 GHz | 1.2 GHz |
Blazing-Fast DDR5 Integration

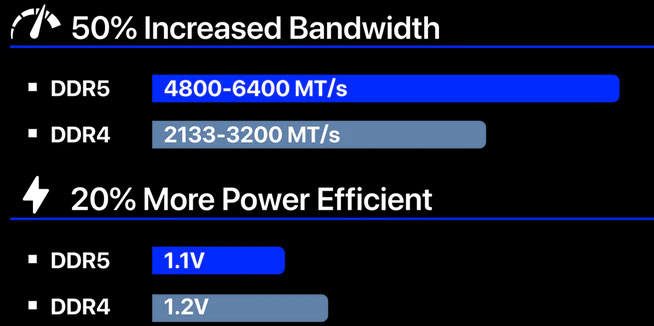

- Increases transfer speeds compared to its predecessor
- Offers enhanced performance, lower latency, and improved power efficiency
M.2 Expansions & Wireless Connectivity
- 1x M.2 B Key (2242, PCIe x2, support NVMe Storage)
- 1x M.2 B Key (3042/3052, USB 3.2 Gen2 & USB2.0, support 4G/5G Module)
- 1x M.2 E key (2230, PCIe x1 & USB2.0, support Wifi/Bluetooth)
Build Rugged, Build Ready

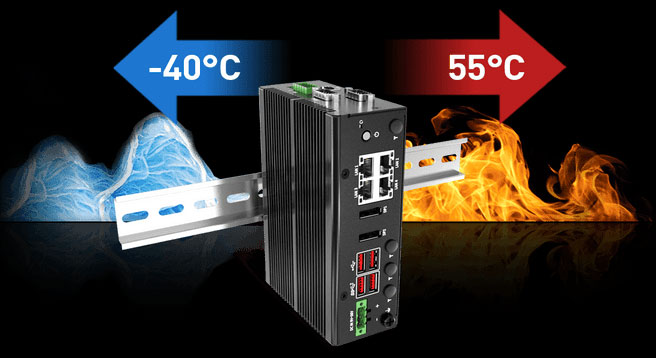

Extended Operating Temperature: -40°C to 55°C MIL-STD-810G Shock & Vibration: 20G/5Grms Wide Power Input: 9~36VDC Power Protection: OCP, OVP, RPP
Beyond the Network : Out-Of-Band Management
Gain easy and reliable 24/7 remote management for your edge deployments even when the OS is unresponsive. Utilizing the Allxon Portal (a secure cloud-based management platform from Allxon), IT teams are able to tap into:
- Dedicated RJ45 port for secure, hardware-level access
- Control hardware at the BIOS level for power cycling and troubleshooting
- Recover systems remotely even when the OS or main network is down
- Manage devices centrally across distributed edge mesh network deployments

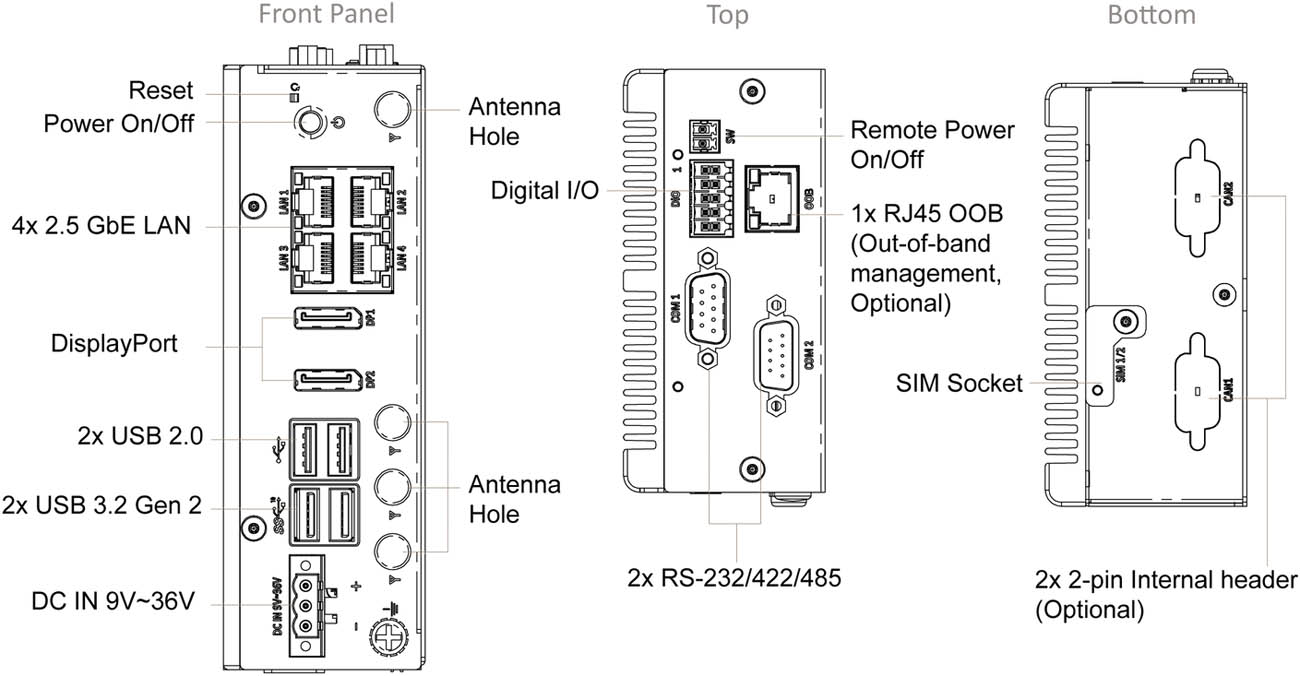

Mechanical Layout

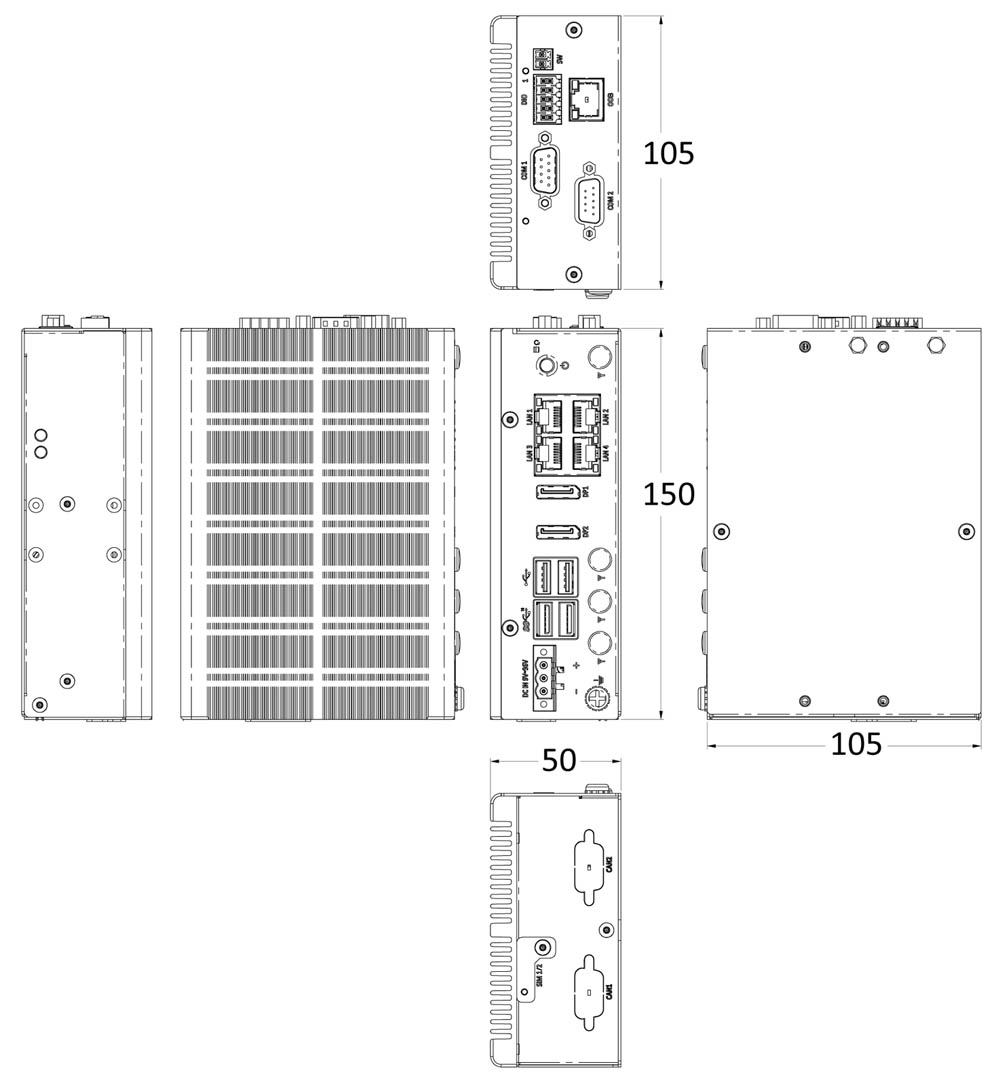

Dimension
