AD-MIC-743-AT
AI Inference System Accelerated by NVIDIA® Jetson Thor™ Module
- Embedded with NVIDIA® Jetson T5000™ up to 2070 TFLOPS (FP4)
- Supports 1 x QSFP28 (4 x 25GbE)
- Supports 1 x 5GbE, 4 x USB 3.2 Gen 2, 1 x M.2 AEkey(WiFi), 1 x M.2 Bkey (LTE)
- Support multiple purpose of large AI model for Generative AI application
Datasheet
Product Specification

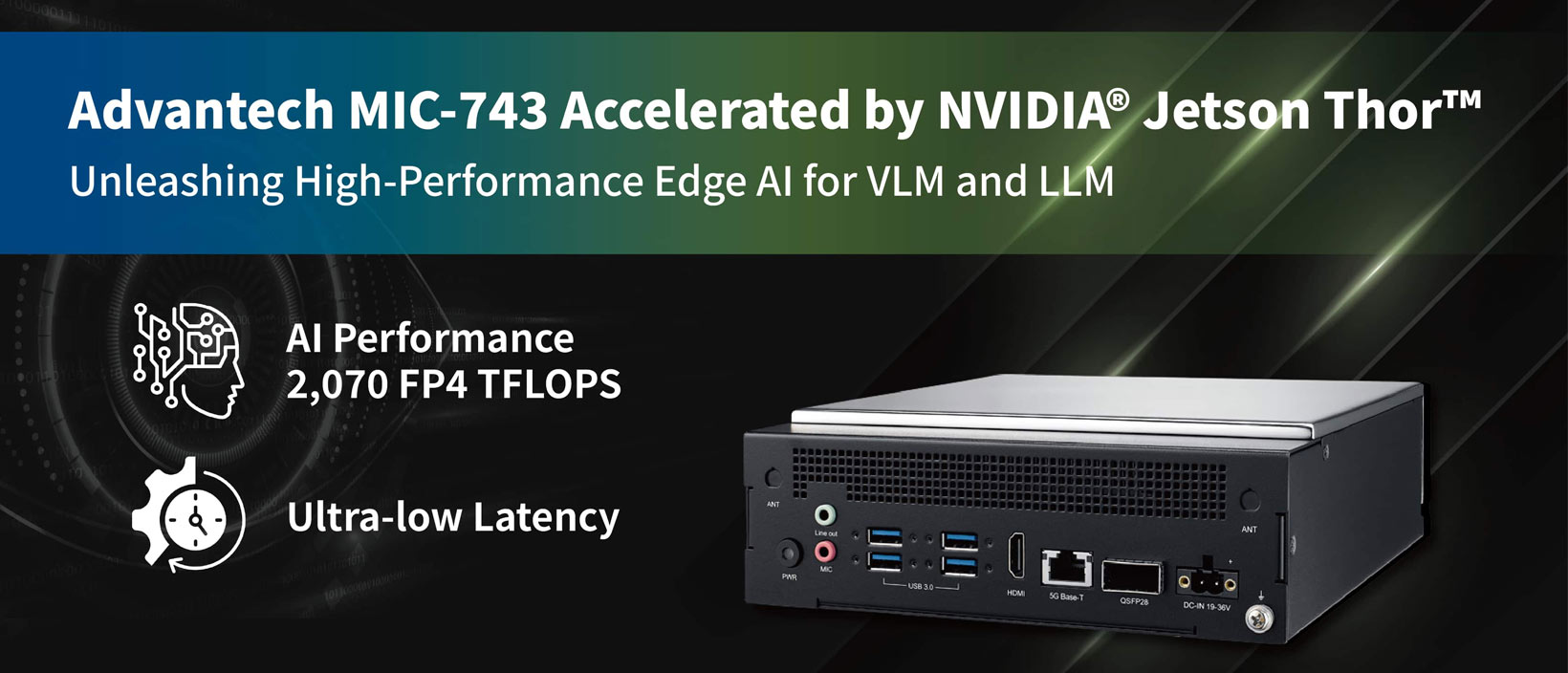

Unleashing High-Performance Edge AI for VLM and LLM
Equipped with NVIDIA Jetson Thor module, Jetson T5000, the MIC-743 delivers up to 2,070 FP4 TFLOPs of AI performance, enabling real-time inferencing for complex edge applications. Its 2560 CUDA cores and 96 Tensor cores provide massive processing power for AI workloads such as deep learning and computer vision. The 128GB LPDDR5X memory ensures sufficient bandwidth and capacity to handle large AI models, including VLM and LLM inferencing, without bottlenecks.
Together, these features empower MIC-743 to run multi-modal AI tasks simultaneously, supporting video language model (VLM), large language models, and intelligent video analytics at the edge.
| Processor System | |
| CPU | 14 core Arm® Neoverse V3AE (64-bit) SMP CPU architecture L1 Cache (I, D) per core: 64KB + 64KB, L2 1MB, L3 16MB |
| GPU | 2560 NVIDIA® CUDA® cores 96 5th Gen Tensor cores MAXN: 1.57 GHz |
| Memory | 128GB LPDDR5X |
| Ethernet | |
| RJ45 | 1 x 10/100/1000/2500/5000 Mbps Ethernet |
| QSFP28 | 4 x 25GbE |
| I/O | |
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| USB | 4 x USB 3.2 Gen 2 |
| OTG USB | 1 x Micro USB |
| Console | 1 x microUSB console for debug (UART to USB) |
| Audio | 1 x audio speaker out, MIC in on board |
| SIM card | 1 x Nano SIM on side of board |
| Expansion | |
| M.2 Ekey | 1 x 2230 E-key (Signal: PCIex1 + USB2.0) |
| M.2 Bkey | 1 x 3052/3042 B-key (Signal: USB3.0 + USB2.0) |
| Power | |
| Input | 19-36V |
| Power Type | Terminal Block 2 Pin |
| Internal pin header | 3 x SMART FAN |
| Environment | |
| Operating Temperature | -10 ~ 35 °C with 0.7 m/s air flow |
| Operating Humidity | 95% @ 40 °C (non-condensing) |
| Vibration | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Mechanical | |
| Dimension (W x H x D) | 195 x 200 x 71.5 mm with rubber foot |
| Weight | 2kg |
| Installation | Desktop |
| Operating System | |
| JetPack | NVIDIA JetPack 7.0 |
| Certification | |
| EMC, Safety | CB/UL/CE/FCC/BSMI/CCC (No RED certification) |
