AD-AIMB-586

Intel 8th 9th Gen Intel® Core™ i7/i5/i3 LGA1151 uATX with VGA/DP/DVI-D/eDP(LVDS), 14 COM,8 USB3.0, 12 USB 2.0,Dual Lan

Anewtech-AIMB-586

Features

  • Supports Intel® 8th Gen Xeon/ Core™ i7/i5/i3 processor with Q370/C246 chipset
  • Four U-DIMM sockets support up to 64GB DDR4 2400/2666 MHz SDRAM
  • Supports HDMI2.0a(option),2 DP++,eDP/LVDS(option) display
  • Supports Intel AMT 12.0 and Intel vPro competent
  • Supports PCIE Gen3, 4 USB3.1, 10 x USB2.0/USB 3.0, upto 4 x SATAIII and quad GbE LAN, M.2(M-key),M.2(E-key)
  • Supports Software RAID 0, 1, 5, 10, TPM 1.2/2.0 (optional)
  • Supports WISE-PaaS/EdgeSense and Embedded Software APIs

Datasheet

Specification

Model AIMB-586QG2-00A1E AIMB-586WG2-00A1E
Form Factor
Form Factor Micro ATX Micro ATX
Processor
CPU Intel® Core™ i7/i5/i3/Pentium Intel Xeon/ Core i7/ i5/ i3/ Pentium/ Celeron
CPU TDP 80W/65W/35W 80W/65W/35W
BIOS AMI EFI 128Mbit AMI EFI 128Mbit
Core Number 2 / 4 / 6 2 / 4 / 6
Frequency 2.2GHz ~ 3.8GHz 2.2GHz ~ 3.8GHz
L3 Cache 2 ~ 8MB 2 ~ 12MB
Chipset Intel Q370 Intel C246
Memory
Max. Capacity 64 GB 64 GB
Technology Dual Channel DDR4, 2400/2666MHz ECC/Non-ECC with 288 pin U-DIMM Dual Channel DDR4, 2400/2666MHz ECC/Non-ECC with 288 pin U-DIMM
ECC Support No Yes
Socket 4 x 288-pin DIMM 4 x 288-pin DIMM
Display
Controller Intel HD Graphics Intel HD Graphics
Graphic Engine DirectX11.1, Open GL 4.0 DirectX 11.2, OpenGL 5.0, OpenCL 2.1
Graphic Memory 1GB maximum shared memory with 2GB and above system memory installed 1GB maximum shared memory with 2GB and above system memory installed
LCD (TTL/LVDS/eDP) eDP: support to 3840 x 2160 @ 60 Hz eDP: support to 3840 x 2160 @ 60 Hz
DDI (HDMI/DVI/DisplayPort) HDMI: upto 4096x2160@60Hz ; DP:3840x2160@60Hz HDMI: upto 4096x2160@60Hz ; DP:3840x2160@60Hz
Multiple Display Dual/ Triple Dual/ Triple
Expansion
PCI Express x 16 1 Option
PCI Express x 8 option 2
PCI Express x 1 1 1
SMBus 1 1
PCI Express x 4 1 1
Audio
Audio Interface HD Audio HD Audio
CODEC Realtek ALC888S, High Definition Audio (HD) Realtek ALC888S, High Definition Audio (HD)
Connector 2 (Line out, Mic-in) 2 (Line out, Mic-in)
Ethernet
Controller LAN1: Intel i219LM / LAN2: Intel i211AT LAN1: Intel i219LM / LAN2: Intel i210AT
Speed 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps
Connector RJ45 x 2 RJ45 x 2
Watchdog Timer
WatchDog Timer Yes Yes
Storage
SATA 6 x SATAIII (Max. Data Transfer Rate 600 MB/s) 8 x SATAIII (Max. Data Transfer Rate 600 MB/s)
RAID Software RAID 0, 1, 5, 10 Software RAID 0, 1, 5, 10
I/O
GPIO 16-bit GPIO 16-bit GPIO
USB3.0 6 6
USB2.0 6 6
COM Port 6 ( 5 x RS232, 1 x RS232/ 422/ 485) 6(5 x RS-232, 1 x RS-232/422/485)
Keypad 1 1
TPM Optional Optional
Smart Fan 5 5
Power
Power Type ATX ATX
Connector ATX24P ATX24P
Power Consumption (Full Load) 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
Battery Lithium 3 V / 200 mAh Lithium 3 V / 200 mAh
Environment
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing -40 ~ 85° C and 60° C @ 95% RH Non-Condensing
Vibration Resistance 3.5 Grm (Non-Operation Mode) 3.5 Grm (Non-Operation Mode)
Physical
Dimension (mm) 244 x 244 mm 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package 1.2 kg (2.64 lb), weight of total package
Operating System
Microsoft Windows Yes Yes
Linux Yes Yes
SUSIAccess Yes Yes
Certification
EMC CE, FCC CE, FCC

Anewtech-microatx-motherboard-aimb-586AD-AIMB-586, the newest industrial-grade Micro-ATX motherboard based on the Intel® Q370/C246/H310 chipset supporting the latest 8th generation Intel® Core™ I /Pentium®/ Celeron® and E3 Xeon® processors.

Providing high computing and graphics performance with high expandability, AD-AIMB-586 is an ideal platform for multiple applications in medical, test & measurement equipment, surveillance, Robot AGV, robot controllers and more. It bundled with WISE-PaaS/RMM software package that offers remote management and security features, plus smart software that boosts IoT applications from the edge to the cloud.

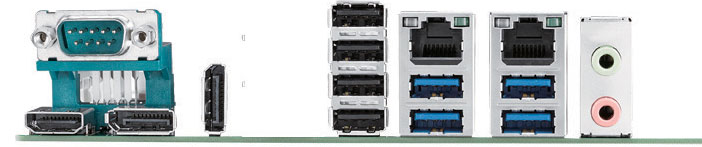

High Expandability and Rich I/O Connectivity
AD-AIMB-586 is equipped with multiple high speed I/O including: 4 x USB 3.1, 2 x USB 3.0, 8 x USB 2.0 (2 from 2nd USB controller), 6 x SATAIII (C246 sku up to 8 x SATAIII), and 2 x M.2 (M-Key x 1; E-Key x 1) supporting NVMe storage and WiFi modules.

It also supports 16-bit digital programmable I/O, 6 x COM (1 x supports RS-232/422/485) and a 6W audio amplifier (6W-2ch). AD-AIMB-586 also comes with a maximum of four PCIe expansions: PCIe x16, 2 x PCIe x8 (BOM option), PCIe x4, or PCIe x1. The PCIe Gen3 x16 slot is reserved for high performance GPU cards, the x4 slot is suitable for beamformer cards, capture cards, or HW RAID cards for applications in medical, surveillance, and edge workstations.

Flexible Dual Power Support and Max 4 LANs Design
AD-AIMB-586 provides flexibility with two power sources options, both ATX and 12V DC-in power sources have been implemented, it’s compliant with ATX PSUs and power adaptors. AD-AIMB-586 offers four Gigabit Ethernet ports and Intel iAMT 12.0 and vPro is supported (Q370/C246 PCH with selected CPU) making it highly suitable for network and security related applications.

Excellent Graphics Performance and Strict ESD Protection & Certification
With advanced HD graphics performance, AD-AIMB-586 integrates Intel HD Graphics with DX11.1, OpenCL2.1, and OpenGL5.0 to deliver enhanced graphics performance. AD-AIMB-586 supports three independent displays; either in clone mode or extended mode using HDMI, DisplayPort1.2, eDP, and LVDS (option) with high 4K2K resolution.

With enhanced Electrostatic Discharge (ESD) design, AD-AIMB-586 attains the (ESD) level 4 standard (contact 8kv and air 15kv) for high end applications. For medical appliances, an ESD tolerance level is one of the most crucial features needed to protect systems in sensitive environments.
