AD-ASMB-927
Dual 5th/4th Gen Intel® Xeon® Scalable EATX Server Board with 16x DDR5, Dual 10GbE, and IPMI
- LGA4677 EATX server board with 5th/4th Gen. Xeon® Scalable processors
- DDR5 5200 MHz RDIMM up to 4TB (16 DIMMs)
- Four PCIe x16 and two PCIe x8
- Intel® X710-AT2 dual 10GbE ports
- Nine SATA3.0 and one M.2 connector (SATA/PCIe compatible)
- 0 ~ 40 °C ambient operating temperature range
Datasheet
Product Specification
| Model | ASMB-927T2-00A1 |
|---|---|
| Form Factor | |
| Form Factor | EATX |
| Processor System | |
| CPU | 5th/4th Gen Intel® Xeon® Scalable processors |
| CPU TDP | Up to 250W |
| Frequency | Up to 3.9 GHz |
| Core Number | Up to 60 cores |
| L3 Cache | Up to 300MB |
| BIOS | AMI SPI 256 Mbit |
| UPI | 16 GT/s |
| Chipset | Intel C741 |
| DMI | Gen3 x4 |
| Memory | |
| Technology | DDR5 ECC-REG 4000/4400/4800 MHz |
| Capacity | 4TB (256 GB per DIMM) |
| ECC Support | Yes |
| Type | RDIMM |
| Socket | 16 x 288-pin DIMM |
| REG Support | Yes |
| Display | |
| Controller | ASPEED AST2600 |
| Graphic Memory | Onboard memory 64MB |
| Display Interface | VGA: Up to 1920 x 1200 |
| Expansion Interface | |
| PCI Express x 16 | 5 (Gen5) |
| PCI Express x 8 | 5 (Gen4) |
| PCI Express x 4 | - |
| PCI Express x 1 | - |
| Ethernet | |
| Controller | LAN1/ LAN2: Intel X710-AT2, BMC LAN: RTL8211FSI |
| Speed | 100/1000 Mbps & 10G Base-T |
| Connector | 3 x RJ45 |
| Watchdog Timer | |
| Output | System Reset |
| Interval | Programmable 1 ~ 255 sec/min |
| I/O | |
| SATA | 9 x SATA3 |
| USB3.0 | 2 |
| USB2.0 | 3 (1 Type-A) |
| GPIO | 8-bit |
| COM Port | 1 x RS232 |
| PS/2 Keyboard/Mouse | 1 |
| System Fan | 7 |
| Rear I/O Interface | |
| LAN | 3 |
| USB3.0 | 4 |
| USB2.0 | - |
| COM | 1 (1 x RS232) |
| VGA | 1 |
| Power Requirement | |
| Voltage | 3.3V/5V/5Vsb/12V/12V_8P |
| Current | 2.2A/1.9A/0.1A/0.3A/38.53A |
| Environment | |
| Operating-Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Non-Operating Vibration | 3.5 Grms |
| Physical Characteristics | |
| Dimensions (LxW) | 304.8 x 330.2 mm (12" x 13") |
| Weight | 1.5kg |
| Certification | |
| EMC | CE/FCC |
| Management Solution | |
| Software | IPMI 2.0 |
Case Study:
AI enabled Automated Optical Inspection (AOI) System for Secondary Battery Manufacturing
AI enabled Automated Optical Inspection (AOI) System for Secondary Battery Manufacturing
Background Information

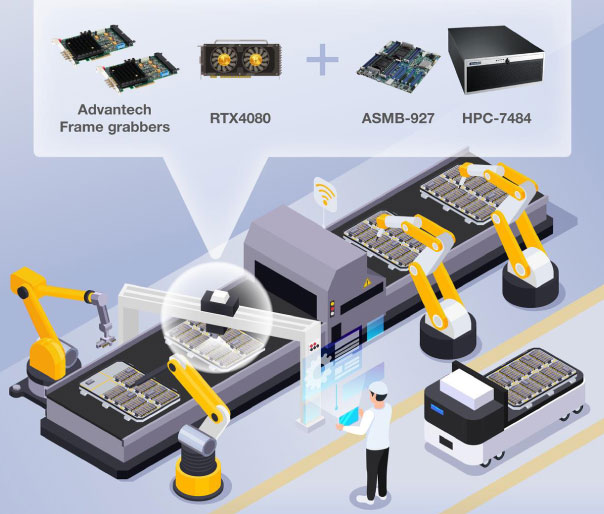

- The secondary battery industry’s need for high-performance vision inspection systems is addressed by Advantech's AI AOI vision inspection solution.
- This solution is tailored for manufacturers who require high-pixel images and high-speed inspections, integrating the HPC-7484 4U server, which enhances productivity and quality control with its compact, efficient, and cool design suitable for manufacturing lines.
System Description
- The system is equipped with 5th gen Intel® Xeon® Scalable processors, DDR5 5600Mhz, GPU cards, and CoaXPress grabber cards, supporting high-performance image capture, video analysis, and AI inference.
- Designed with a focus on thermal management and compactness, it provides a reliable solution for high-speed inspections in the secondary battery manufacturing industry.
Case Study: Integrated HIL System Enhances and Streamlines GNSS Receiver Testing
Background Information

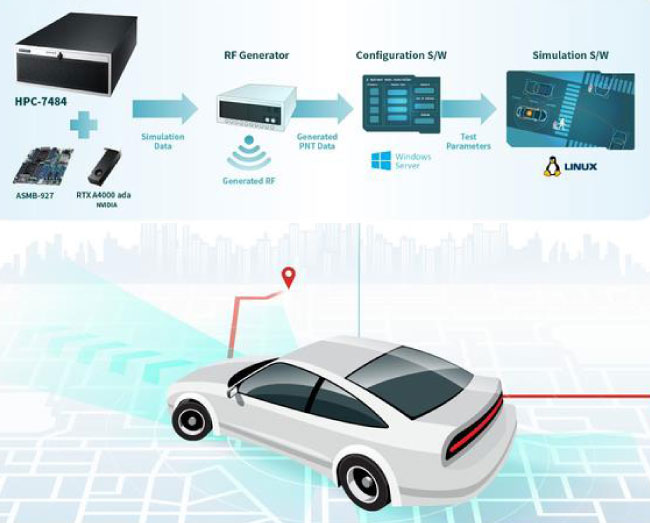

- Precision PNT systems require high accuracy and intricate testing methodologies, especially for automotive, aerospace, and military applications.
- Existing HIL simulation systems lack the necessary computing power and real-time capabilities, necessitating a robust, integrated solution for accurate testing and validation.
System Description
- ASMB-927+HPC-7484 server, with Intel® Xeon® processors and 16 DDR5 memory slots, offers powerful real-time simulation capabilities and flexible scalability for diverse environments.
- The server's NVIDIA® Quadro T400 GPU card provides high-fidelity 3D graphics rendering, enhancing visualization for complex test scenarios.
