Elo Pay 7" POS System
7-inch integrated payment POS system, Android 12 OS, Qualcomm SD660 processor
- The Elo Pay 7-inch integrated payment POS system packs the modularity merchants need into a compact enterprise-grade terminal. Complete with a 7-inch HD touch display, integrated payment, flexible Android 12 OS and Qualcomm SD660 processor

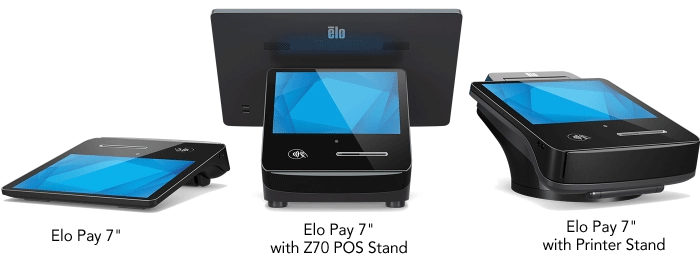

- From EMV and NFC to MSR and support for pin-on-glass, the Elo Pay 7-inch POS system supports all forms of payment. And with the ability to place it on the counter, mount it on the printer stand or integrate it on the back of the Z70 POS Stand, there is a configuration to support all types of merchants.
- Start changing the way customers and employees interact by deploying a new generation of interactive technologies that provides seamless integration, effortless provisioning and simplified device management via EloView or your preferred management tools.
Datasheet
Product Specification
| Part Number(s) | E863808 - Elo Pay 7"  |
| Enclosure Color | Black |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 10 Touch |
| Processor | Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor |
| Memory (RAM) | 4GB |
| Storage | 64GB |
| Expansion Options | 1x MicroSD |
| OS | Android 12 with Google Play Services |
| Display | 7” Optically Bonded High Definition LCD |
| Touchscreen | 10-touch Projective capacitive with Corning Gorilla Glass Water rejection |
| Sensor | Accelerometer |
| Resolution | 1920 x 1080 |
| Brightness (typical) | 400 nits |
| Contrast Ratio | 1000:1 |
| I/O Ports | Elo Pay 7": 1x USBC Small External Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-C Large External Hub: 1x DC-in, 1x RJ45 LAN, 1x RJ12 Cash Drawer, 4x USB-A, 2x USB-C, 1x Powered USB (24V) EloPOS Z70 Pay with Integrated Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 1x USB-C, 1x RJ12 Cash Drawer |
| Camera | 1x 5MP FF |
| Payment | EMV Contactless ISO 14443-A/B, MiFare, ISO-18092 EMV Chip Card Reader (chip and pin-on-glass) 3-track MSR ISO 7810/7811 |
| Certifications | PCI-PTS 6.2 (PCI Approval Number: coming soon) EMV L1 & L2 Visa PayWave (coming soon) Mastercard PayPass Amex ExpressPay Discover D-PAS Mastercard TQM (coming soon) China Union Pay International (coming soon) JCB J/Speedy (coming soon) Interac Flash (coming soon) EFTPOS (coming soon) |
| Wireless | 802.11a/b/g/n/ac with 2x2 MU-MIMO |
| Bluetooth | Bluetooth 5.0 |
| LED | 1x Amber/White LED for Power Programmable R/G/B/W LED for EMV-CL Reader Programmable R/G/B/W LED for SCR Reader |
| Keyboard | On screen keyboard |
| Audio | 2x Microphone 1x 1W speaker 1x Buzzer |
| Buttons | 1x Power button 1x Home Button |
| Printer | Paper width: 58mm Print width: 48mm Print speed: 100 mm / sec Auto-cutter Roll diameter: 48mm Sensors: paper out, cover open |
| Supported Monitors | 1002L Without Stand - E155834* (for pairing with Z70 POS Stand) 1302L Black Without Stand – E683595* (for pairing with Z70 POS Stand) 1302L Black With Stand – E683204 (for pairing with Elo Pay 7” & Elo Pay 7” with printer stand) 1502L Without Stand – E125496* (for pairing with Z70 POS Stand) 1502L With Stand – E155645 (for pairing with Elo Pay 7” & Elo Pay 7” with printer stand) *requires VESA mount kit (included in box) |
| Dimensions | 6.9" x 6.6" x 1.7" / 176 mm x 168.68 mm x 42.95 mm |
| Shipping Box Dimensions | 8.7" x 7.3" x 2.7" / 220 mm x 185 mm x 68 mm |
| Weight (Unpackaged) | 1.4 lbs / 0.616 kg |
| Weight (Packaged) | 1.6 lbs / 0.716 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 50°C / -4°F to 122°F |
| Humidity | 5% to 95% non-condensing |
| Regulatory approvals and declarations | UL, FCC (US) - Class B cUL, IC (Canada) CB (International safety) CE (Europe) - Class B RCM (Australia) China RoHS |
| ESD | Class B: 8kV contact, 15kV air |
| Warranty | 2-year |
Enjoy the convenience of integrated payment.
Elo Pay offers comprehensive payment services that enables merchants to process transactions with confidence. With access to multiple payment applications, end-to-end encryption, secure tokenization, robust terminal management services (TMS) and easy to use APIs for quick integration, merchants can get started quickly and securely.

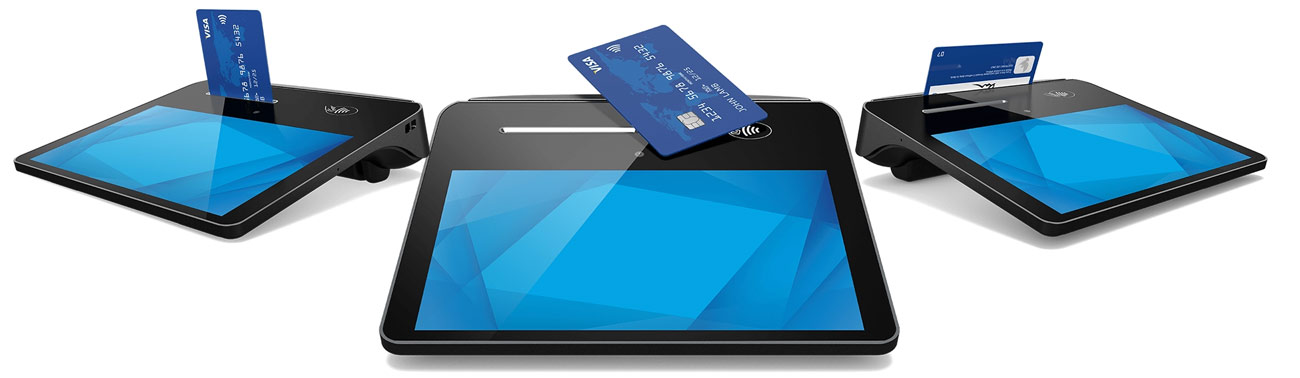

Dip. Tap. Swipe.
Whether your customers have a physical card or contactless via their mobile phone, the Elo Pay 7" POS terminal accepts all forms of payment.
- EMV - Insert cards with chips.
- NFC - Tap with contactless payments.
- MSR - Swipe cards with mag stripes.
- Pin on Glass - Enter your pin directly on the screen.
