EloPOS Z10 with Intel
15.6-inch full HD interactive display. Intel 11th Generation processors
Built on Elo’s unified architecture, the EloPOS Z10 delivers a powerful, minimalistic design to help optimize checkout in compact spaces without losing inches on your point‑of‑sale terminal. Complete with a 15.6‑inch Full HD interactive display, I/O hub, contained cable routing, your choice of Windows 10, ChromeOS Flex and Linux, and optional interactive customer-facing display, the EloPOS Z10 delivers one of the slimmest POS systems to the market.
- 15.6-inch full HD interactive display
- Intel 11th Generation processors and integrated Trusted Platform Modules
Datasheet
Product Specification
| Part Number(s) | EloPOS Z10 with No OS - E983676 + E767159 EloPOS Z10 with Win 10 - E983895 + E767159 |
| Enclosure Color | Dark Gray |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 10 Touch |
| Processor | Intel Elkhart Lake J6426 |
| Graphics | Intel UHD Graphics |
| BIOS | AMI |
| Memory (RAM) | 8GB 3200MHz DDR4 SO-DIMM on 1 slot (Expandable to 32GB maximum on 1 slot) |
| Storage | 128GB M.2 NVME SSD 72 TBW GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less. |
| TPM | 2.0 |
| Diagonal Size | 15.6'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area | 13.55" x 7.62" / 344.2 mm x 193.5 mm |
| Resolution | 1920 x 1080 @ 60Hz |
| Number of Colors | 16.2 million |
| Brightness (typical) | LCD panel: 300 nits TouchPro PCAP: 255 nits |
| Response Time-total (typical) | 25 msec |
| Contrast Ratio | 1000:1 |
| Viewing Angle | Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total |
| Webcam | 8MP Max Resolution: 1920x1080 30fps Auto Focus |
| I/O Ports | Display Head Interface: USB-C Connector Supports USB 2.0/3.0, DP output (Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power) I/O Hub: DC Input 4 x USB-A 3.0 RJ45 Ethernet LAN (Gigabit) (wo Wake on Lan at S5 support) |
| Wireless | 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz |
| Bluetooth | Bluetooth 5.2 |
| Antenna | 2T2R design |
| Microphone | Digital Microphone |
| Speakers | 2 x 2W internal speakers |
| OS | No OS Windows 10 IoT Enterprise LTSC 64-bit |
| Languages | Windows 10 - 36 Language groups |
| Power Supply | External 19VDC universal-type power supply brick AC input voltage: 100-240 VAC Input frequency: 50-60 Hz Maximum output power: 65W |
| Power Consumption (Typical) | ON: 30W SLEEP: <2.0W OFF: <0.5W |
| Dimensions | 14.3" x 9.9" x 5.5" / 362.8 mm x 252.7 mm x 139.7mm |
| Shipping Box Dimensions | I-Series: 18.11" x 12.64" x 7" / 460 mm x 321 mm x 178 mm Z10 POS Stand: 10.1" x 8.8" x 8.7" / 256 mm x 223 mm x 220 mm |
| Weight (Unpackaged) | I-Series: 3.53 lbs / 1.6 kg Z10 POS Stand: 2.52 lbs / 1.14 kg EloPOS Z10: 6.05 lbs / 2.74 kg |
| Weight (Packaged) | I-Series: 8.81 lbs / 4 kg Z10 POS Stand: 4.63 lbs / 2.1 kg |
| Operating Temperature | 0°C to 35°C / 32°F to 95°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 10% to 90% Storage: 0% to 95% (38.7°C max wet bulb temperature) |
| Energy Star | Energy Star 8.0 |
| Regulatory approvals and declarations | UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA |
| Real-Time Clock | CR2450 lithium metal battery |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | 75mm VESA mount |
| Warranty | I-Series 3 Slate with Intel: 3 years Z10 POS Stand: 2 years |
| Extended Service Options | I-Series 3 Slate with Intel: 4 year warranty coverage - Elo P/N: E819598 5 year warranty coverage - Elo P/N: E819795 3 year warranty coverage + AUR - Elo P/N: E820186 4 year warranty coverage + AUR - Elo P/N: E820388 5 year warranty coverage + AUR - Elo P/N: E820582 Z10 POS Stand: 3 year warranty coverage - Elo P/N: E375367 4 year warranty coverage - Elo P/N: E375573 5 year warranty coverage - Elo P/N: E375771 2 year warranty coverage + AUR - Elo P/N: E375970 3 year warranty coverage + AUR - Elo P/N: E376169 4 year warranty coverage + AUR - Elo P/N: E376362 5 year warranty coverage + AUR - Elo P/N: E376547 |
| What's in the Box | I-Series Slate with Intel: I-Series Slate IO Hub North America Power Cord European Power Cord 65W Power Adapter Quick Installation Guide (QIG) Z10 POS Stand: Z10 POS Stand 2x M4 x5 screws for attaching the head to the stand 4x M4 x 18 screws for attaching an CFD 4x M4 x 10 screws for attaching the plate adapter to head 1x Hex 4X108 allen wrench for adjusting hinge torque 1x Back Cover for CFD 1x Plate Adapter for I-Series 4/5 and I-Series 4 Slate Quick Install Guide Note: EloPOS Z10 with Intel is shipped in two boxes. One for the head and one for the stand |
EloPOS Z10 with Intel

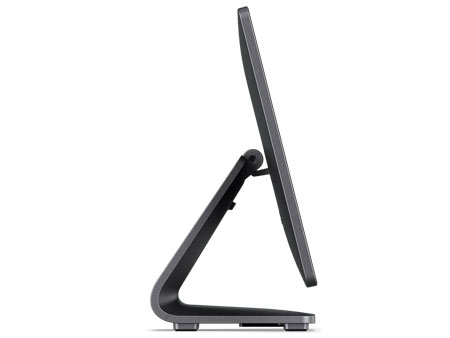

Compact form factor
Purposefully architected to fit everything you need at the point of sale into a sleek compact design

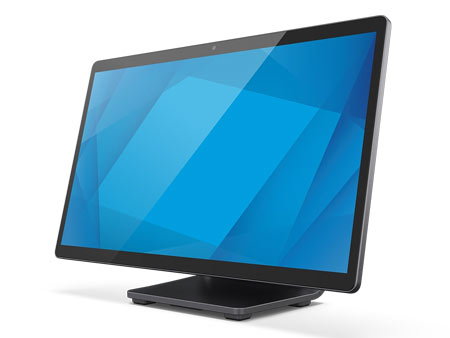

Powerful Touchscreen
The EloPOS Z10 offers a fully integrated 15.6-inch full HD interactive display

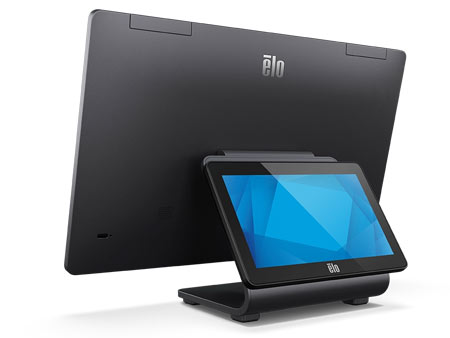

Interactive display for customers
Customers can review transactions, participate in loyalty programs and see the promotions with customer-facing touchscreen display
Commercial-grade performance
Built with Intel 11th Generation processors and integrated Trusted Platform Modules
