EC-LIVA Z11 PLUS
Mini PC supports Intel® Core™ Ultra Processor
- Intel® Core™ Ultra 7 Processor 255H
- Intel® Core™ Ultra 5 Processor 225H
- Intel® Core™ Ultra 7 Processor 155H
- Intel® Core™ Ultra 5 Processor 125H
- 2 x SO-DIMMs DDR5 6400MHz up to 96GB (225H/255H)
- 2 x SO-DIMMs DDR5 5600MHz up to 96GB (125H/155H)
- Video Output: 2 x HDMI™ ( HDMI™ port w/ CEC function), 2 x USB Type-C DisplayPort
- OS support: Windows® 11, Linux
| Platform | Intel® Core™ Ultra 7 Processor 255H Intel® Core™ Ultra 5 Processor 225H Intel® Core™ Ultra 7 Processor 155H Intel® Core™ Ultra 5 Processor 125H |
| Memory | 2 x SO-DIMMs DDR5 6400MHz up to 96GB (225H/255H) 2 x SO-DIMMs DDR5 5600MHz up to 96GB (125H/155H) |
| Storage Devices | 1 x M.2 2280 Key M PCIE NVMe Gen4 x 4 SSD 1 x M.2 2242 Key M PCIE NVMe Gen4 x 4 SSD |
| Audio | HDMI™ Audio |
| Networking | 1 x 2.5 Gigabit LAN 1 x Gigabit LAN |
| USB | 1 x USB 3.2 Gen 2x2 Type-C (FRONT PANEL) 3 x USB 3.2 Gen 2x1 (FRONT PANEL) 1 x USB 2.0 (FRONT PANEL) 2 x USB4 40Gbps Type-C (REAR PANNEL) 2 x USB 2.0 (REAR PANEL) |
| Video Output / Input | 2 x HDMI™ ( HDMI™ port w/ CEC function) 2 x USB Type-C DisplayPort |
| Wireless | 1 x M.2 2230 WLAN |
| Power | 20V/6A, 120W |
| Dimensions (mm) | 114.4 x 114.4 x 54.5 mm |
| OS Support | Windows® 11 Linux |
LIVA Z11 PLUS Mini PC
Built for high-performance deployment in space-constrained environments, the 0.71L LIVA Z11 PLUS combines embedded Intel® Core™ Ultra Processors with AI acceleration, support for up to 96GB DDR5 memory, quad 4K display output, and rich I/O connectivity. It’s the ultimate compact solution for edge computing, smart retail, medical diagnostics, and modern business productivity.
AI-Accelerated by Intel® Core™ Ultra Processors
Powered by Intel® Core™ Ultra processor (Series 1 & 2), the LIVA Z11 PLUS delivers up to 96 overall TOPS of AI performance with a built-in Neural Processing Unit (NPU) and Intel® Iris® Xe graphics. This platform offers seamless multitasking and enhanced responsiveness for workloads such as video encoding, intelligent automation, office productivity, and edge device management.

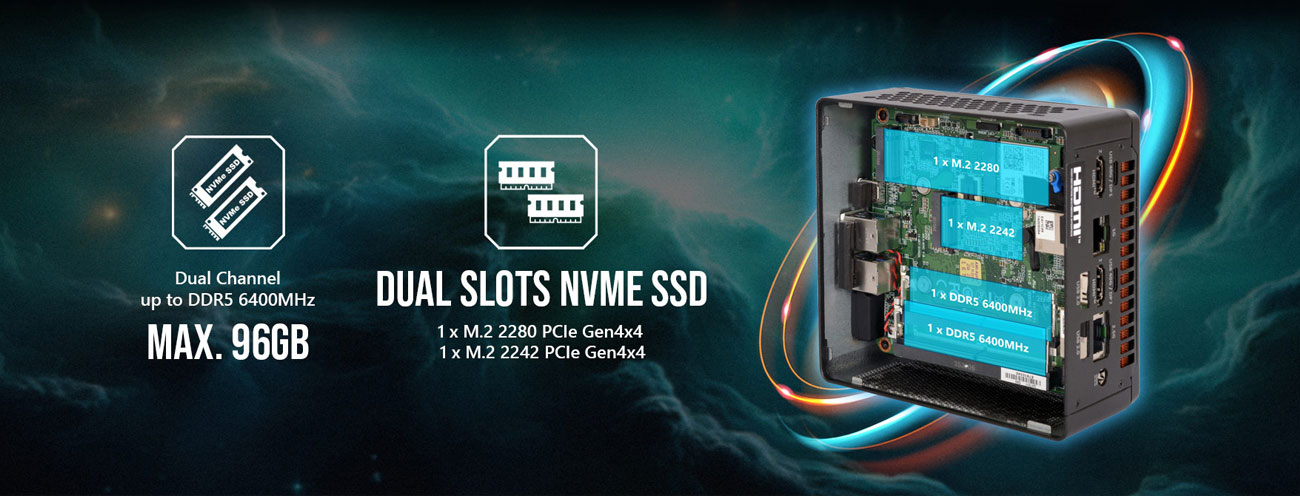

Superior Performance and High-Capacity Storage
Designed for demanding workloads, the LIVA Z11 PLUS delivers exceptional memory and storage performance in a compact footprint. It supports up to 96GB of dual-channel DDR5 memory—running at 5600MHz with Intel® Core™ Ultra processor (Series 1), or at blazing-fast 6400MHz with Series 2. Paired with dual NVMe Gen4x4 SSDs (M.2 2280 + M.2 2242), this configuration ensures accelerated boot-up, ultra-responsive multitasking, and smooth performance across AI-enhanced applications and modern business environments.

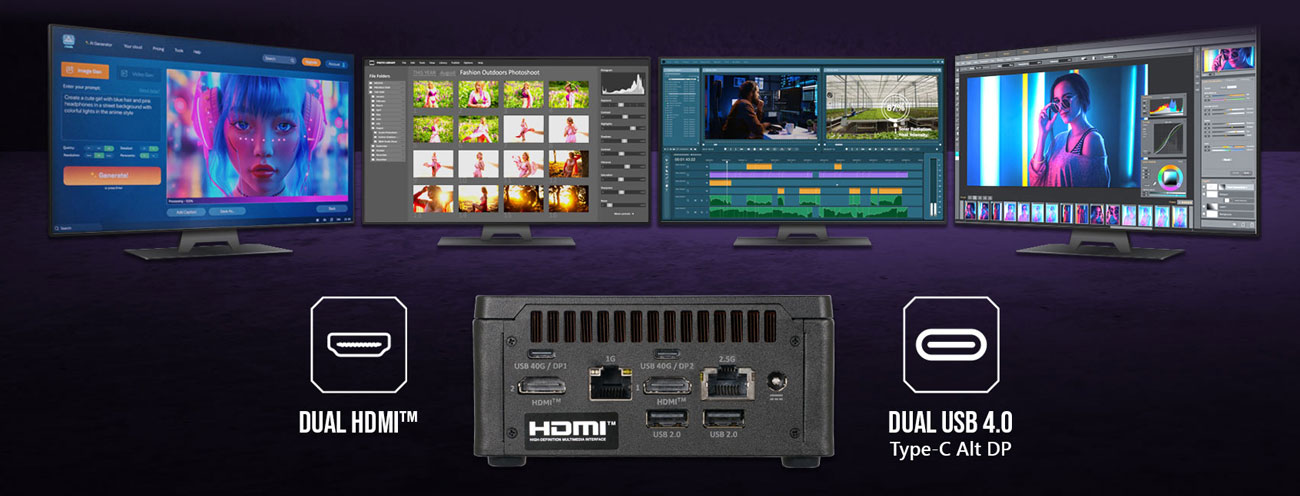

Boost Productivity with Quad 4K Display Output
Designed for advanced multitasking, LIVA Z11 PLUS enables simultaneous output to four 4K displays through two HDMI™ ports and two USB4 40Gbps Type-C (DisplayPort Alt Mode) connectors. This expanded visual workspace enhances operational efficiency and is ideal for digital signage, surveillance monitoring, financial dashboards, and content creation workflows.

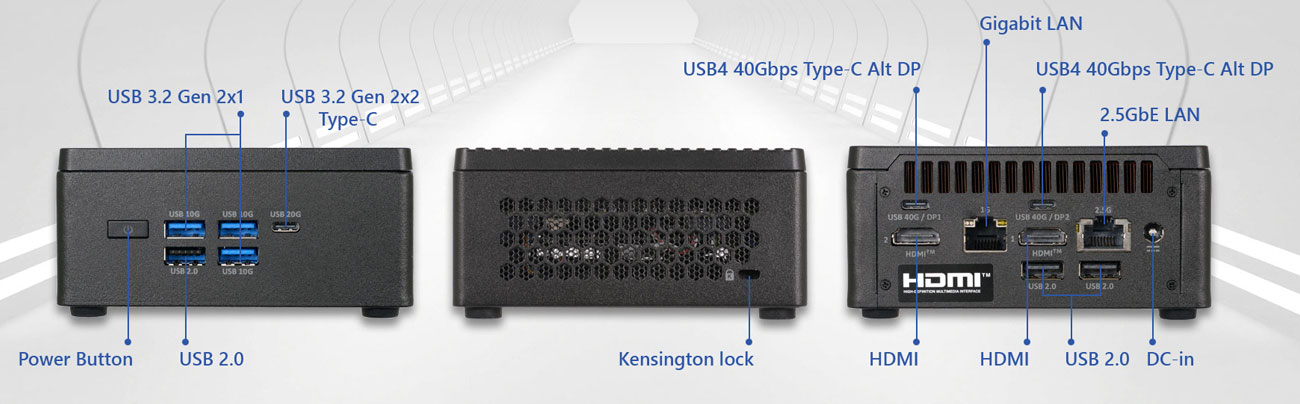

Comprehensive I/O for Maximum Integration
Despite its compact size, LIVA Z11 PLUS offers extensive connectivity to support a wide range of devices. The front panel provides one USB 3.2 Gen 2x2 Type-C, three USB 3.2 Gen 2x1, and one USB 2.0 port for convenient high-speed access. On the rear, it includes two USB4 40Gbps Type-C and two USB 2.0 ports. Combined with HDMI™, and dual LAN, this rich I/O selection ensures smooth integration into diverse business, education, and commercial setups.
