I-TANK-8700-MPHX
High-Performance AMD Ryzen™ 7000/8000 Series Mobile Processor, Fanless Embedded Computer
- Supported CPUs:
- AMD Ryzen™ 7000/8000 Series Mobile Processor
- AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W)
- AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W)
- AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W)
- 2 x2.5GbE ports
- Multiple USB ports and serial ports
- Multiple M.2 expansions and PCIe expansions
- Three independent display
- Support IPMI remote management
- CE/FCC compliant
Datasheet
Product Specification
| Form Factor | |
| SBC Form Factor | CPU: AMD Ryzen™ 7000/8000 Series Mobile Processor AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W) AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W) AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W) Chipset: SoC System Memory: 2 x SO-DIMM DDR5 5600 (16GB pre-installed) (up to 96GB) Power: DC Jack: 12 ~ 28V DC Terminal Block: 12 ~ 28V DC (with ACC Mode) Consumption: 19V@3.79 A (AMD Ryzen™ 9 7940HS with 8 GB memory) |
| I/O Interface | |

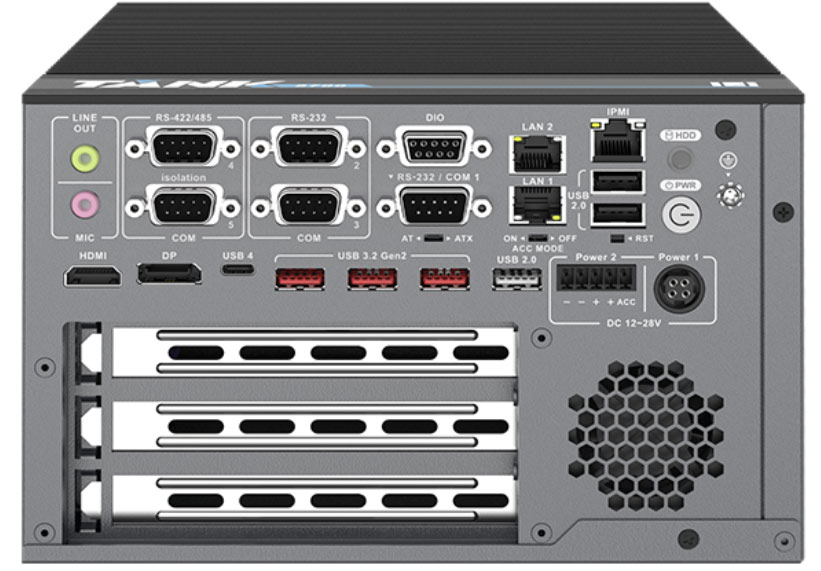

| I/O Ports | USB: 3 x USB 3.2 Gen2 , 3 x USB 2.0 Ethernet: 2 x 2.5 GbE by Realtek 8125B controller 1 x RJ45 by M.2 IRIS2 Module COM Port: 2 x RS-422/485 (with 2K isolation) (DB9) 3 x RS-232 (DB9) Digital I/O:8-bit (4-in/4-out) DB9 (Female) Display: HDMI , 1 x DP++ , 1 x USB4 (Display + USB 3.2 Gen2) Audio: 1 x Mic, 1 x Line-out TPM:1 x 20pin TPM connector (Optional TPM-IN03 module) Watchdog Timer:Programmable 1 ~ 255 sec/min |
| Expansion Slots | |
| Expansion Slots | M.2: 1 x M.2 M key (2280, PCIe Gen4 x2) 1 x M.2 A key (2230, PCIe Gen3 x1 & USB 2.0) 1 x M.2 B Key (3042/52/80, PCIe Gen3 x1 or support IRIS2 module) Backplane: 1 x PCIe Gen4 x8 1 x PCIe Gen3 x4 1 x PCIe Gen3 x1 (Only supports 3A SKU) 1 x PCI (Only supports 3B SKU) |
| System | |

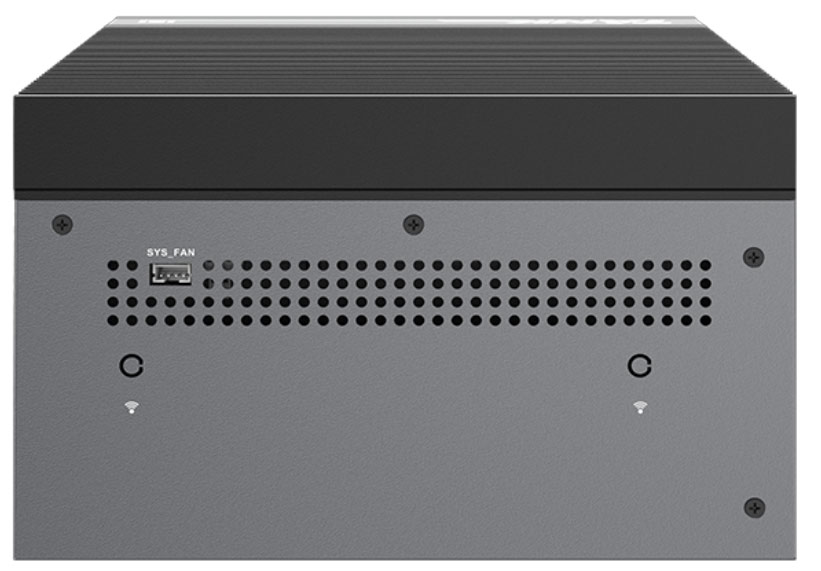

| Cooling method / System Fan | Fanless 4-pin external system fan connector |
| Drive Bays | 2 x 2.5” SATA 6Gb/s HDD/SSD bay |
| Indicator&Buttons | |
| Buttons | 1 x Power button 1 x Reset button 1 x AT/ATX switch |
| Indicators | 1 x Power LED (green) 1 x HDD LED (yellow) |
| Physical Characteristics | |
| Construction | Extruded aluminum alloy |
| Color | |
| Color | Black C + Iron Gray |
| Dimensions | |
| Dimensions | 254.4 x 205 x 127.2 |
| Weight | |
| Weight | 3.96 kg / 5.5 kg |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 10% ~ 95% non-condensing |
| Operating Vibration | Half-sine wave shock 5G, 11ms, 100 shocks per axis (With SSD) |
| Operating Shock | MIL-STD-810G 514.6C-1 (With SSD) |
| Safety & EMC | CE/FCC compliant |
| OS Support | |
| OS Support | Microsoft Windows 10 / Windows 11, Linux |
