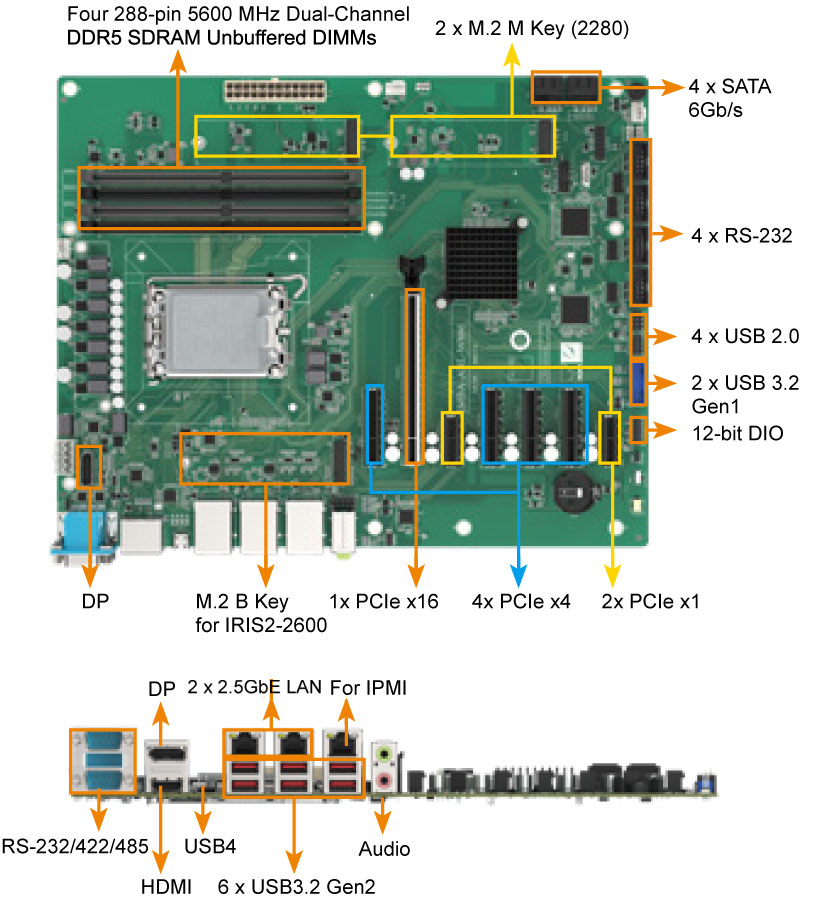

I-IMBA-ARL-W880
ATX motherboard supports high-performance Intel® Core™ Ultra Processors (Series 2) processor, DDR5, Quadruple independent displays, dual 2.5GbE LAN, M.2
- High-Performance Intel® Core™ Ultra Processors (Series 2)
- Support four 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 192GB (ECC & non-ECC support)
- Quad independent display via HDMI, DP and USB4
- Support Dual Intel® I226V/I226LM 2.5GbE controller
- Support PCIe Gen4 x1, PCIe Gen4 x4, PCIe Gen5 x16, M.2 M key and M.2 B key expansion
Datasheet
Product Specification
| Form Factor | |
| Form Factor | ATX |
| System | |
| CPU | High-Performance Intel® Core™ Ultra Processors (Series 2) (up to 125W TDP CPU) |
| Chipset | Intel® W880 |
| Memory | Four 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 192GB (ECC & non-ECC support) |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244mm x 305mm |
| Net Weight | GW: 1200g / NW: 700g |
| Storage | |
| Storage | 4 x SATA : 4 x SATA 6Gb/s (RAID 0/1/5/10 supported) |
| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 4K@30Hz |
| 2 x Display Port - 1 x DP1.4 (up to 4K@60Hz) 1 x DP1.4 (up to 4K@60Hz) internal | |
| 1 x USB4 : up to 4K@60Hz | |
| Ethernet | 2 x LAN - LAN1: Intel® I226-LM 2.5GbE controller LAN2: Intel® I226-V 2.5GbE controller |
| Audio | HD Audio - Realtek ALC888S HD codec 2 x Audio Jack (Line-out, Mic-in) on rear IO 1 x Analog audio (2x5 pin) |
| I/O Interface | 2 x External RS-232/422/485 : RS-485 support AFC |
| 4 x Internal RS-232 : 2x5 pin, P=2.54 | |
| 4 x Internal USB 2.0 : 2x4 pin, P=2.54 | |
| 1 x DIO : 12-bit digital I/O (2x7 pin) | |
| 6 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 2 x Internal USB 3.2 Gen1x2 : 5Gb/s, 2x10 pin, P=2.00 | |
| Expansion | 1 x PCIe x16 : PCIe x16 with Signal Gen5 |
| 4 x PCIe x4 : PCIe x4 open-end Gen4 | |
| 2 x PCIe x1 : PCIe Gen4 x1 | |
| 3 x M.2(NGFF) - 1 x M.2 M Key (2280, PCIe x4) NVMe support 1 x M.2 M Key (2280, PCIe x2) NVMe support 1 x M.2 B key for IRIS2-2600 | |
| Power | |
| Power Consumption | 3.3V@4.39A, 5V@12.57A, 12V@7.21A, 5Vsb@0.36A (Intel 15th Q4A9 with DDR5 4800MHz U-DIMM 16GB memory) |
| Power Supply | ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
