B-BIH6B-IHP

Mini-ITX Motherboard LGA1700, support 12th/ 13th /14th Gen Intel® Core Processor w/ Intel H610 chipset

Anewtech-Systems-Industrial-Motherboard-B-BIH6B-IHP
  • LGA1700, support 12th/ 13th /14th Gen Intel® Core Processor w/ Intel H610 chipset, Max TDP at 65W
  • Support triple display : 1 x LVDS, 2 x HDMI®, 1 x VGA
  • 2 x DDR5 5600 MHz SO-DIMM(Non-ECC), up to 96GB
  • 1 x Intel i226-V 2.5G LAN, 1 x Intel i219-V 1G LAN
  • 2 x USB3.2 Gen1 / 5 x USB2.0
  • 1 x RS232/422/485, 3 x RS232
  • 1 x SATA3
  • 1 x M.2 KEY B(2242/3042/3052), support PCIEx2
  • 1 x M.2 KEY E slot (2230), support PCIEx1+USB2.0 & Intel CNVI
  • 1 x Mini PCIe support PCIEx1+USB2.0
  • 1 x PCIE Gen4 X16 (Slot
  • DC_IN 12-24V
Product Specification

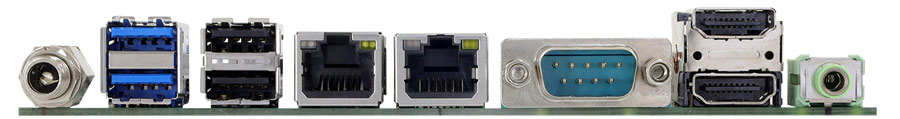

Anewtech-Systems-Industrial-Motherboard-B-BIH6B-IHP-biostar
CPU SUPPORTLGA1700, support 12th/ 13th /14th Gen Intel® Core Processor
CHIPSETIntel H610
MEMORY2 x 262-pin DDR5 5600Mhz SODIMM up to 96GB.
EXPANSION SLOT1 x M.2 B Key 2242 support PCIe3.0 x2 for NVMe storage
1 x M.2 E Key 2230 support PCIe3.0 x1 + USB2.0, support WIFI/BT module
1 x Full Size MIniPCIe support PCIe3.0x1 + USB2.0, support WIFI/BT module
1 x PCIe4.0 x16 Slot
GRAPHICSIntel® Integrated Graphics, support triple display
2 x HDMI® 1.4 connectors (4096x2160@24Hz)
1 x VGA connector (1920x1200 @60Hz)
1 x LVDS header( 1920*1200 @60Hz)
AUDIOAudio Codec: ALC897 +ALC105, support 4 ohm 2W amplifier
LANDual Intel® LAN
1 x 2.5G by i226-V
1 x 1G by i219-V
SUPER I/O CHIPFINTEK F81966
REAR I/O1 x DC_Jack
1 x COM Port , support RS-232/422/485
2 x HDMI® connector
2 x RJ45 connector, support 2.5G + 1G
2 x USB3.2 Gen1 Type A connector
2 x USB2.0 Type A connector
1 x Audio jacks, support Line-out
INTERNAL I/OExpansion slots:
2 x 262-pin DDR5 slot
1 x M.2 B Key
1 x M.2 E Key
1 x Full Size MIniPCIe w/ SIM slot
1 x PCIe4.0 x16 Slot
SATA:
1 x SATA3 7pin connector
1 x 1*4 pin SATA power box header
Display:
1 x 2*20 pin LVDS box header
1 x 1*8 pin LCD backlight control box header (5V/12V)
1 x 2*3 pin LCD power select header (3.3V/5V/12V, default is 3.3V)
Audio:
1 x 2*5 pin header for MIC-in, Line-out, Speaker-out (Amplifier)
1 x Buzzer
USB:
2 x USB2.0 by 1 x 2*5 pin header
1 x USB2.0 by 1 x 1*4 pin header
Power:
1 x 2*2 pin power connector, support DC-IN 12~24V
Serial Port:
3 x 2*5 pin RS232 box header
1 x 2*3 pin COM1 power select header (RI/5V/12V, default is RI)
Others:
1 x 1*4 pin-header for CPU Fan (PWM Fan)
1 x 1*3 pin-header for SYS Fan
1 x 2*6 pin front panel header
1 x 1*3 pin clear CMOS header
1 x 1*3 pin AT/ATX mode select header (default is ATX)
1 x 2*5 pin 8-bit DIO header
1 x Green LED for 5V standby power indicator
TPM2.0 onboard
DIMENSIONMini-ITX, 170mm x 170mm ( W x L )
ENVIRONMENT0ºC ~ 60ºC Humidity : 5% ~ 90%
OS SUPPORTSupport Windows 10/11
Support Ubuntu 22.04
