A-EMX-PTLP
Mini-ITX motherboard with onboard Intel® Panther Lake H series BGA Processors

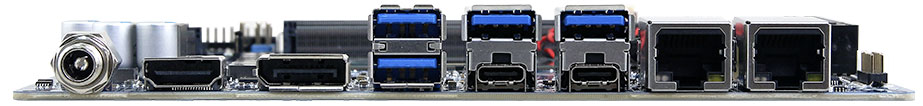

- Intel® Panther Lake H Processors
- 2 x 262-Pin DDR5 (H404) 6400MHz, (H484) 7200MHz SoDIMM/CSoDIMM Socket Supports Up to 64GB
- 3 x DP (2 from Type C), 1 x HDMI, 1 x LVDS/eDP
- 1 x PCIe x8 slot for H404 PCIe x4 Gen5, H484 PCIe x8 Gen5
- 1 x Intel® I210AT, 1 x Intel® I226LM
- 4 x USB 3.2 Gen1, 3 x USB 2.0
- 2 x M.2 Type M, 1 x M.2 Type B, 1 x M.2 Type E
- 2 x USB Type C, 5V@3A, supports USB3.2 Gen2 and DP
- DC in +12V~24V
- 5 x COM
Datasheet
| System Information | |
| Processor | Intel® Panther Lake H Processors |
| System Memory | 2 x 262-Pin DDR5 (H404)6400MHz, (H484)7200MHz SoDIMM/CSoDIMM Socket Supports Up to 64GB |
| I/O Chipset | EC iTE IT5792 |
| Watchdog Timer | H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step |
| BIOS | AMI uEFI BIOS, 256Mbit SPI Flash ROM |
| H/W Status Monitor | CPU Temperature Monitoring Voltage Monitoring CPU Fan Speed Control |
| TPM | Onboard nuvoTon NPCT760AABYX (7.2.3.1) support TPM 2.0 |
| Board | Thin Mini ITX |
| Expansion | |
| Expansion | 1 x M.2 Type B 2242/3042/3052 (with 1 x PCIe x1 (Default), USB2.0, USB 3.2 Gen2 with 1 x SIM Card Slot Support WWAN+GNSS 1 x M.2 Key E 2230 Support Wi-Fi Module and CNVi (1 x PCIe x1 & USB 2.0 Signal) 1 x M.2 Key M 2280 (PCIe x4 Gen5) Slot for Storage NVMe SSD 1 x M.2 Key M 2280 (PCIe x4 Gen4) Slot for Storage NVMe SSD |
| Display | |
| Graphic Chipset | Intel® Xe LPG Graphics |
| Spec. & Resolution | 1 x HDMI 2.1: 7680 x 4320 @30Hz 1 x DP1.4a: Max: 7680 x 4320@30Hz 2 x USB Type C supports 3840 x 2160@60Hz LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) or eDP1.2: Max 4096 x 2304@60 Hz |
| Multiple Display | 2 x DP, 2 x HDMI, 1 x LVDS, 1 x eDP (Maximum: 6 for Quadruple Independent Displays) |
| LVDS | 1 x Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) |
| Audio | |
| Audio Codec | Realtek ALC888S HD Audio Decoding Controller |
| Audio Interface | Support MIC-in, Line-out, Line-in via internal connector |
| Audio Amplifier | 2 x 6W 8Ω Amplifier |
| Ethernet | |
| LAN Chipset | 1 x Intel® i210AT Gigabit Ethernet Controller 1 x Intel® i226LM 2.5 Gigabit Ethernet Controller |
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet |
| LAN Port | 2 x RJ-45 |
| Power Requirement | |
| DC Input | 12~24V |
| oftware Support | |
| OS | Windows 11 LTSC Linux |
| Certification | |
| Certification Information | CE, FCC, RoHS Compliant |
| I/O | |
| USB | 2 x USB Type C, 5V@3A 4 x USB 3.2 Gen1 3 x USB 2.0 |
| COM Port | 3 x RS232 (JCOM1 ~ JCOM3) 2 x RS22/485 (JCOM1 and JCOM2, need to modify BIOS Setup settings and change pin header & cable) |
| DIO | 1 x 16-bit GPIO |
| Mechanical & Environmental | |
| Operating Temp. | Intel@ Commercial Temperature CPU SKU support: 0~60°C **w/HDD/SSD, ambient with 0.5 m/s Air flow |
| Storage Temp. | -40 ~ 75°C (-40 ~ 167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | Shipping w/o cooler: 0.603lbs (0.27kgs) |
| Power Requirement | DC in +12V~24V |
| Power Mode | AT/ATX (Default Setting: ATX) |
| Dimension (L x W) | 6.7" x 6.7" (170mm x 170mm) |
