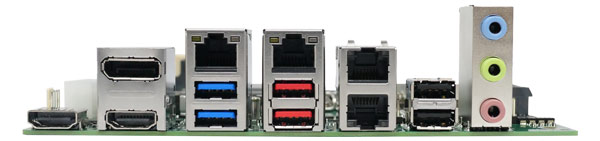

I-KINO-ADL-H611
mini-ITX SBC supports LGA1700 Intel® 12th/13th/14th Gen Core™ i9/i7/i5/i3, Pentium® and Celeron® processor
- mini-ITX SBC supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor
- Two 260-pin 3200 MHz Dual-Channel DDR4 SO-DIMM
- Triple independent display via dual HDMI and DP
- Support quad Intel® I226V 2.5GbE and I219-V 1GbE controller
- Support PCIe Gen4 x16, M.2 M key and M.2 A key expansion
Datasheet
Product Specification
| Form Factor | |
| Form Factor | Mini-ITX SBC |
| System | |
| CPU | LGA1700 socket supports 12th/13th/14th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU) |
| Memory | Two 260-pin 3200 MHz Dual-Channel DDR4 SO-DIMM |
| Memory Max. | up to 64 GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 170mm x 170mm |
| Net Weight | GW: 900g / NW: 400g |
| Storage | |
| Storage | 2 x SATA : 6Gb/s |
| I/O Interface | |
| Display Output | 2 x HDMI™ : HDMI 2.0b (up to 4K @60Hz) |
| 1 x Display Port : DP 1.4a (up to 4K @60Hz) | |
| Ethernet | 4 x LAN - LAN1: Intel® I226-V 2.5GbE controller LAN2: Intel® I226-V 2.5GbE controller LAN3: Intel® I226-V 2.5GbE controller LAN4: Intel® I219-V 1GbE controller |
| Audio | HD Audio - Realtek ALC888S HD codec 3 x Audio Jack (Line-in, Line-out, Mic-in) on rear IO 1 x Analog audio (2x5 pin) |
| I/O Interface | 2 x Internal RS-232/422/485 : 2x5 pin, P=2.0 |
| 2 x External USB 2.0 : Type-A | |
| 2 x External USB 3.2 Gen1x1 : Type-A, 5Gb/s | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| 1 x DIO : 12-bit digital I/O (2x7 pin) | |
| 2 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 1 x I²C : 1x4 pin | |
| Expansion | 1 x PCIe x16 : with x16 Signal Gen4 |
| Other Features | |
| TPM | 2x10 pin |
| Power | |
| Power Consumption | 3.3V@2.52A, 5V@4.09A, 12V@5.75A, 5VSB@0.2A (Intel® Core™ i9-12900 CPU with 32 GB 3200 MHz DDR4 memory, EuP mode disabled) |
| Power Supply | Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10 ~ 60℃ |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Card Slot Interface | |
| M.2 | 1 x M.2 M key (2280, PCIe Gen3 X 4) 1 x M.2 A key(2230, PCIe Gen3 x1 & USB 2.0) for wifi/BT |
