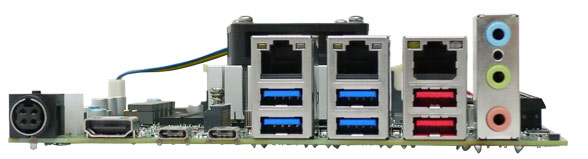

I-KINO-MPHX
Mini-ITX SBC with AMD Ryzen™ 7040 & 8040 Series Mobile Processors, DDR5 SO-DIMM, Quadra Display, Triple Realtek 2.5GbE
- Mini-ITX SBC supports AMD Ryzen™ 7040 & 8040 Series Mobile Processors
- Two 262-pin 5600 DDR5 SO-DIMM supported up to 64GB
- Quad independent display via USB4, HDMI, iDPM
- Support triple REALTEK RTL8125BG-CG 2.5GbE controller
- Support PCIe Gen4 x16, M.2 M key and M.2 A key expansion
Datasheet
Product Specification
| Form Factor | |
| Form Factor | Mini-ITX |
| System | |
| CPU | AMD Ryzen™ 7040 & 8040 Series mobile processors |
| Memory | Two 262-pin 5600 MHz Dual-Channel DDR5 SO-DIMM supported up to 64GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 170mm x 170mm |
| Net Weight | GW: 900g / NW: 700g |
| Storage | |
| Storage | 2 x SATA : 6Gb/s |
| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 4096 x 2304 @30Hz |
| 1 x iDPM : iDPM 3040 slot (only for IEI iDPM module) | |
| Ethernet | 3 x LAN - LAN1: REALTEK RTL8125BG-CG 2.5GbE controller LAN2: REALTEK RTL8125BG-CG 2.5GbE controller LAN3: REALTEK RTL8125BG-CG 2.5GbE controller |
| Audio | 1 x HD Audio - Realtek ALC888S HD Audio codec 2 x Audio jack (Line-out, Mic-in) 1 x Front audio (2x5 pin) |
| I/O Interface | 1 x DIO : 12-bit digital I/O (2x7 pin) |
| 4 x External USB 3.2 Gen1x2 : Type-A, 5Gb/s | |
| 2 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 2 x Internal RS-232/422/485 : 2x5 pin, P=2.0 | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| Expansion | 1 x M.2(NGFF) - 1 x M.2 M key (2242/80, PCIe Gen4 X 4) 1 x M.2 A key (2230, PCIe Gen4 x1 & USB 2.0) |
| 1 x PCIe x16 : (Slot1) with x8 Signal Gen4 | |
| Power | |
| Power Consumption | 12V@11.599A (AMD Ryzen 9 8945HS CPU with 32GB DDR5 5600 memory) |
| Power Supply | Support AT/ATX mode 12VDC ErP/EuP Compliant |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
