P-HIO-W210-ADL
10.1" Open Frame Touch Panel PC with Intel® Alder Lake N97 Processor
- 10.1" (16:10) WXGA Open Frame Touch Panel PC
- Certifications for Safety and Reliability: CE/FCC
- Front IP65 Rating for protection against water and dust
- Scratch Resistant 7H Glass Hardness
- Versatile Display Outputs; HDMI and DP
- MTBF Up to 30,000 Hours
Designed to meet the complex connectivity needs of Human Machine Interface applications.
The HIO Panel PC is designed to deliver versatile connectivity and efficient computing for a wide range of industrial applications.
HIO Series provides a selection of Open Frame Panel PC ranging from 10.1’’ to 21.5’’ for seamless integration for HMI deployments. With ultimate screen readability and clarity, the HIO Open Frame Panel PC is front panel IP65 rated with 7H scratch resistant. Designed to meet the complex connectivity needs of Human Machine Interface applications. The HIO Panel PC features a comprehensive range of I/O modules to ensure seamless integration and communication with various devices and peripherals.
| Display | |
| IP Rating | Front IP65 |
| LCD Size | 10.1" (16:10) |
| Max. Resolution | 1280 x 800 (WXGA) |
| Brightness (cd/m²) | 400 nits |
| Contrast Ratio | 800:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.169(H) x 0.1695(V) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR>=10) |
| Backlight MTBF | 30,000 Hours |
| Display Port | 1x DP, support 4096 x 2304 Real 4K @60Hz |
| HDMI | 1x HDMI, support 3840 x 2160 UHD@30Hz |
| LVDS | Default touchscreen LCD, support 1920 x 1200 WUXGA @60Hz |
| Multiple Display | Triple Independent Displays |
| Touch | |
| Touch Type | 10-Point PCAP Touch |
| Surface Hardness | 7H / IK07 |
| System | |
| Processor | Intel® Processor N97 6M Cache, up to 3.60 GHz |
| System Chipset | SoC integrated |
| System Memory | Default 8GB DDR5 4800MT/s SODIMM (up to 16GB) |
| LAN Chipset | GbE1: Intel I225-V (Support Wake-on-LAN and PXE) GbE1: Intel I225-V (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC897 |
| BIOS | AMI uEFI 8Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| Storage | |
| M.2 B Key | 128G M.2 B Key SSD (Default) |
| Expansion | |
| M.2 E Key | 1x M.2 E Key Support WiFi 6e (Optional) |
| I/O | |
| COM | 2x RS-232/422/485 |
| USB | 6x USB 2.0 by internal cable 4x USB 3.2 Gen 2 |
| LAN | 2x 2.5GbE LAN |
| Audio | 1x Audio out |
| Others | Support 2x Pifa Antenna (optional) |
| Operating System | |
| Windows | Windows 10 / Windows 11 |
| Linux | Linux Ubuntu 22.04 |
| Power | |
| Power Adapter | 60W (12V 5A, Default) |
| Power Supply Voltage | DC 9~36V |
| Power Connector | DC Jack 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 10% to 80% (non-condensing) |
| Certification | CE, FCC Class A |
| Vibration | With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 20G half-sin 11ms |
| Physical | |

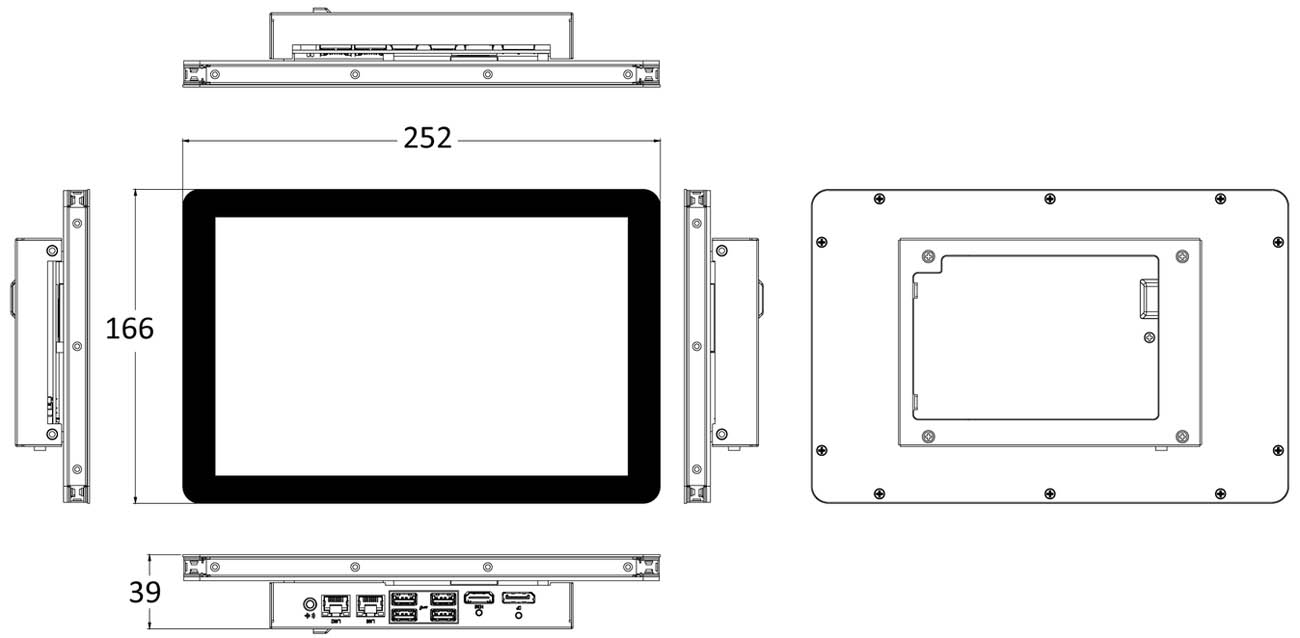

| Dimension | 252 (W) x 166 (H) x 39 (D) mm |
| Weights | 1.3 kg |
| Mounting | Open Frame Panel Mount, Wall Mount |
HIO SERIES INDUSTRIAL OPEN FRAME TOUCH PANEL PC
Open Frame Full Screen Industrial-Grade Design
The HIO Series is a versatile panel PC solution that unifies high efficient computing capabilities with I/O expandability. Designed for seamless industrial and commercial application integration with its sleek open frame design and advanced functionality.
- Intel® 12th Gen Intel® IoTG Alder Lake-N Processor
- Seamless OEM System Integration
- Front Panel IP65 Screen A& 7H hardness
- Open Frame Panel Mounting
- MIL-STD-810G Method 516.7 Procedure
