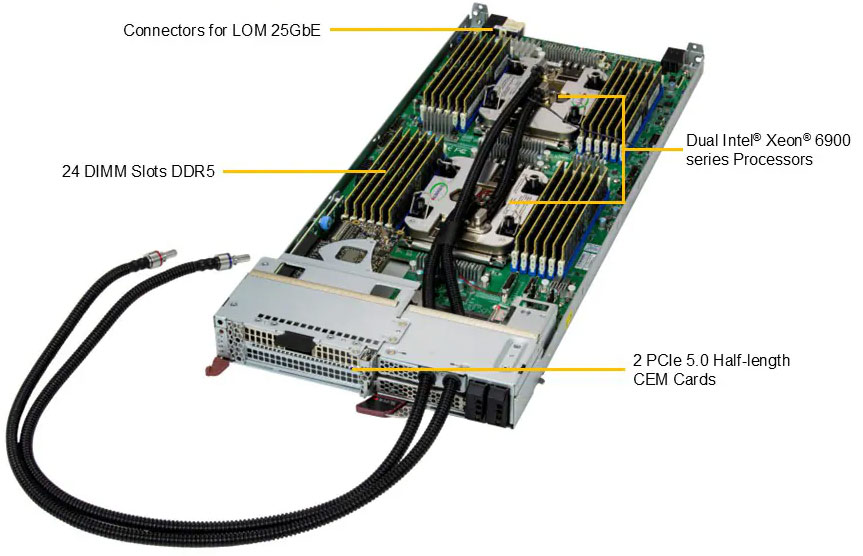

SBI-622BA-1NE12-LCC
80 servers per 48U rack. Dual Socket BR (LGA-7529), Intel® Xeon® 6900-series processors with P-cores
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- 80 servers per 48U rack
- Dual Socket BR (LGA-7529), Intel® Xeon® 6900-series processors with P-cores up to 500W TDP
- Up to 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM or 6TB 8800MT/s DDR5 MRDIMM
- 4 NVMe SSDs with 2 Hot-swap E1.S SSD (PCIe Gen5) and 2 M.2 (PCIe Gen5)
- Dual-port 25G Ethernet (Lan On Motherboard) with Intel® E810
- Expansion slot with one standard PCIe FHHL card, one HHHL/LP card and one OCP 3.0 PCIe card
- Direct liquid cooling solution*
Key Applications
- Enterprise Applications
- High Performance Computing
- Engineering/scientific research
- Cloud, virtualization, financial, EDA
Product Specification
| SuperBlade Sled | SBI-622BA-1NE12-LCC |
| Motherboard | MBD-B14DBE-AP |
| Processor (per Node) | |
| CPU | Dual Socket BR (LGA-7529) Intel® Xeon® 6900-series processors with P-cores |
| Note | Supports up to 500W TDP CPUs* Liquid cooling required* * Please contact your sales rep for more info. |
| GPU | |
| CPU-GPU Interconnect | Up to 2 LP PCIe 5.0 x16 single-width GPUs |
| Memory Capacity | 24 DIMM slots Up to 6TB 6400MT/s DDR5 RDIMM or 6TB 8800MT/s DDR5 MRDIMM |
| Memory Type | ECC DDR5 RDIMM (3DS) up to 256GB of memory with speeds up to 6400 MT/s; ECC Registered MRDIMM up to 256GB of memory with speed up to 8800MT/s |
| DIMM Sizes | RDIMM (3DS) 16GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB; MRDIMM 32GB, 48GB, 64GB, 96GB, 128GB, 256GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Controllers | Onboard Dual 25G Ethernet port with Intel® Controller E810-XXVAM21 expansion slot with optional mezzanine cards with Dual 25G Ethernet port |
| MGMT/Security | IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust |
| Graphics | Aspeed AST2600 |
| System BIOS | |
| BIOS Type | 64MB SPI Flash EEPROM with AMI® BIOS |
| Dimensions | |
| Height | 9.75" |
| Width | 1.75" |
| Depth | 23.5" |
| Weight | 15.2 lbs (6.89 kg) |
| Available Colors | Metalic Silver with Black Drive Bays |
| Front Panel | |
| Buttons | Power On/Off button |
| LEDs | Power LED UID LED Network Activity LED Fault LED |
| Expansion Slots | |
| PCIe | 3 PCIe 5.0 x16 slots supporting 1 FHHL single-width PCIe card, 1 HHHL/LP single-width PCIe card, and 1 OCP 3.0 card |
| Drive Bays / Storage | |

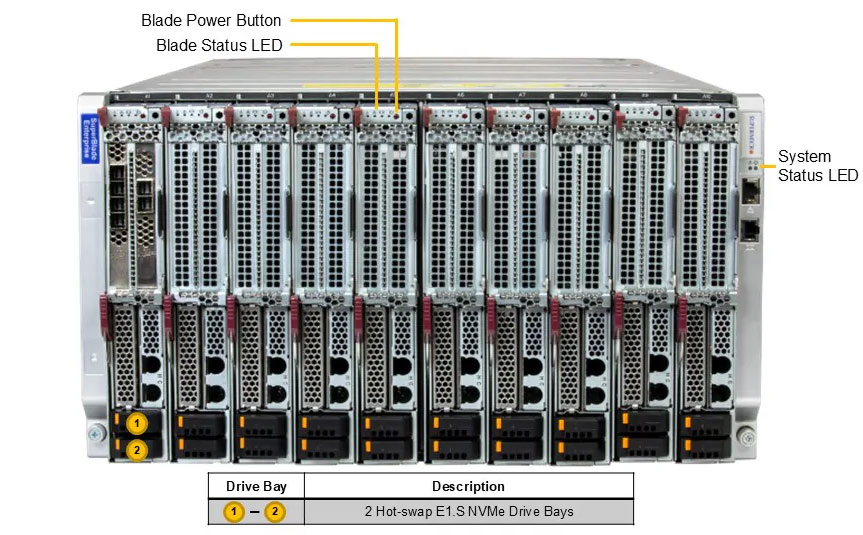

| Hot-swap | 2 Hot-swap E1.S drive bays |
| M.2 | Optional: 2 M.2 2280 or 2 M.2 22110 NVMe SSDs via adapter |
| Input / Output | |
| TPM | 1 TPM 2.0 Header |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
