SYS-521AD-LN2
Mini Tower Embedded System with 14th/13th/12th Gen Intel® Core™ CPUs up to 65W TDP
- Intel® Core Processors Series 2 & 14th/13th/12th Gen Core i Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 65W TDP
- Up to 2 DIMMs supporting up to 64GB DDR5-5600
- Support 1x 3.5" and 1x 2.5" drive bays
Support M.2 M/E-Key - 1 RJ45 1GbE + 1 RJ45 2.5GbE
- Up to 1 PCIe 5.0 x16 HHHL double-width slot
- AMT vPRO Supported
- 300W 80 Plus Gold Level Power Supply
Key Applications
- Office environment
- Healthcare
- Retail
- AI Inference
Datasheet
| Product SKUs | SYS-521AD-LN2 |
| Motherboard | X13SAV-D5LVDS |
| Processor | |
| CPU | Single LGA-1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors |
| Core Count | Up to 24C/32T; Up to 36MB Cache |
| Note | Supports up to 65W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | 1 double-width or 1 single-width GPU |
| Supported GPU | NVIDIA PCIe: NVIDIA RTX PRO 2000 Blackwell Intel: Arc™ Pro B50 Graphics |
| System Memory | |
| Memory | Slot Count: 2 DIMM slots Max Memory (2DPC): Up to 64GB 5600MT/s non-ECC DDR5 SO-DIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | Intel® Q670E |
| Network Connectivity | 1 RJ45 1GbE with Intel® I210-AT 1 RJ45 2.5GbE with Intel® I226 |

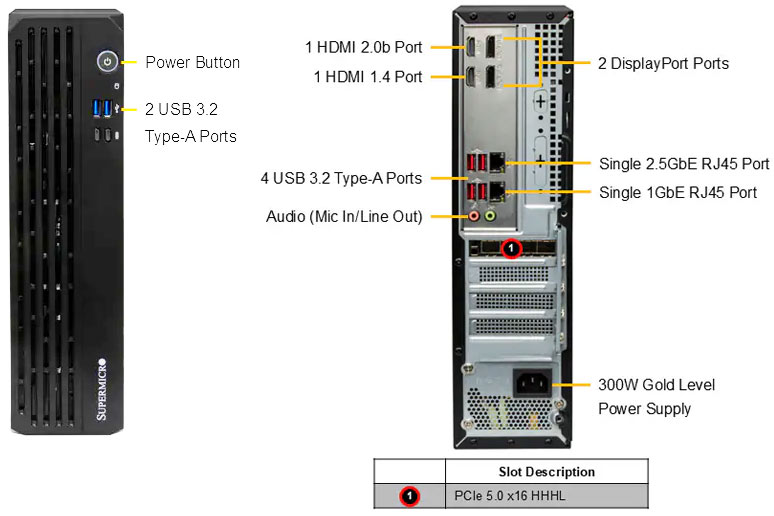

| Input / Output | |
| LAN | 1 RJ45 1 GbE LAN port (Intel® I210-AT) 1 RJ45 2.5 GbE LAN port (Intel® I226-LM) |
| USB | 2 USB 3.2 Gen1 Type-A ports(front) 4 USB 3.2 Gen2 Type-A ports(Rear) |
| Video | 1 HDMI 2.0b port(Rear) 1 HDMI 1.4 port(Rear) 2 DisplayPort ports(Rear) |
| Audio | Line Out Mic in |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash |
| BIOS Features | ACPI 6.0 Plug and Play (PnP) RTC (Real Time Clock) Wakeup SPI dual/quad speed support |
| Management | |
| Software | Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Chassis | |
| Form Factor | Compact Mini-Tower |
| Model | CSE-GS2B-000NBP2 |
| Dimensions and Weight | |
| Height | 13.43" (341 mm) |
| Width | 3.62" (92 mm) |
| Depth | 11.42" (290 mm) |
| Package | 17.95" (H) x 7.32" (W) x 15.08" (D) |
| Weight | Gross Weight: 13.9 lbs (6.3 kg) Net Weight: 12.8 lbs (5.8 kg) |
| Available Color | Black |
| Front Panel | |
| Buttons | Power On/Off |
| LED | HDD activity Power status LED |
| Port | USB Type-A Ports-USB 3.2 Gen 1X1 ports (5G) USB Type-C-USB 3.2 Gen 1X2 port (10G) |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x16 (in x16) HHHL double-width slot |
| M.2 | 1 M.2 PCIe 3.0 x1 slot (E-key 2230) |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 2 bays 1 internal fixed 2.5" SATA drive bay 1 internal fixed 3.5" SATA drive bay |
| M.2 | 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280) |
| System Cooling | |
| Fans | Up to 1 Active CPU Heat Sink Fan(s) Up to 1 System FAN 40x28mm Fan(s) |
| Power Supply | |
| 1x 300W | 1x 300W Gold Level (90%) power supply |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 5°C to 35°C (41°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
