SYS-E103-14P-H
Fanless Edge AI System with Intel® Core™ Ultra Series 3 processor, up to 180 TOPS, up to 128GB DDR5
- AI Performance is up to 180 TOPS through the CPU/GPU/NPU hybrid computing
- Fanless Embedded chassis with 5.5" (140mm) depth
- Intel® Panther Lake-H Core Ultra 7 368H, up to 25W
- Up to 2 CSO/SO-DIMMs supporting up to 128GB DDR5-5600MHz
- 2 2.5GbE LAN with PoE and 1 1GbE LAN support Intel vPro
- 1 M.2 M-key 2242/2280, PCIe Gen5x4;
1 M.2 E-key 2230, PCIe Gen4x1/USB2.0;

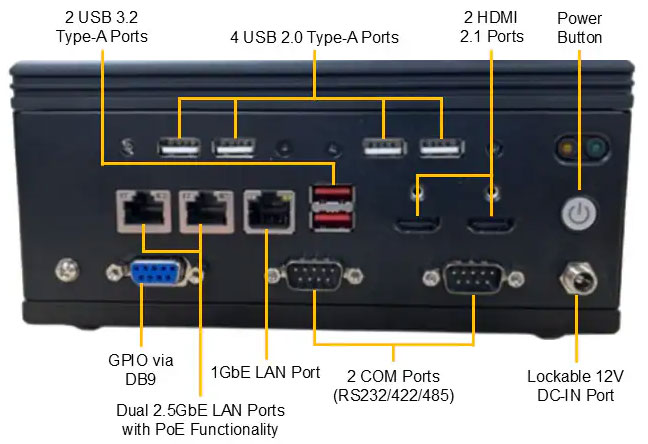

1 M.2 B-key 2242/2280/3052 w/ nano SIM, PCIe Gen4x1 and USB3.2/USB2.0 - 2 HDMI 2.1; 2 USB 3.2 Gen 2& 4 USB2.0; 2 RS-232/422/485; 1 8 bits GPIO
- 2 NVMe 2280 at 2 M.2 M-Key
- DC 12-36V wide range power input support; 1 Lockable 150W 12V DC Power Adapter
Key Applications
- IoT Gateway
- Computer Vision
- Industrial Automation
- Healthcare
- Smart Building, Security and Surveillance
- Smart Retail
- Edge AI
Datasheet
Intel Products and Technologies: Accelerating AI and Analytics at the Edge
| Product SKU | SuperServer SYS-E103-14P-H |
| Motherboard | Super X14SPN-H |
| Processor | |
| CPU | Single FCBGA-2540 Intel® Core™ Ultra X7 Processor 368H |
| Core Count | Up to 16C/16T; Up to 18MB Cache |
| Note | Supports up to 25W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | 1 onboard GPU |
| Supported GPU | Intel: Arc™ B390 GPU |
| System Memory | |
| Memory | Slot Count: 2 DIMM slots/2 Channels Max Memory (1DPC): Up to 128GB 5600MT/s non-ECC DDR5 SO-DIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 2.5GbE with Intel® I226-IT 1 RJ45 1GbE with Intel® I219-LM |
| Input / Output | |
| LAN | 1 RJ45 1 GbE LAN port (Intel® I219-LM) 2 RJ45 2.5 GbE LAN ports (Intel® I226-IT) |
| USB | 2 USB 2.0 Type-A ports(front) 2 USB 3.2 Gen2 Type-A ports(Front) |
| Video | 2 HDMI 2.1 ports(Front) |
| Serial | 2 COM RS232/RS422/RS485 ports(Front) |
| Others | 1 SMBus 8-bit GPIO port |
| System BIOS | |
| BIOS Type | AMIUEFI |
| BIOS Features | ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 PCI F/W 3.0 |
| Management | |
| Software | Supermicro Server Manager (SSM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI Power Management CPU thermal trip support for processor protection Control of power-on for recovery from AC power loss Force power-on by jumper |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Chassis | |
| Form Factor | Fanless Embedded |
| Model | CSE-E102L3 |
| Dimensions and Weight | |
| Height | 3.27" (83 mm) |
| Width | 7.28" (185 mm) |
| Depth | 5.5" (140 mm) |
| Package | 7.87" (H) x 11.42" (W) x 9.06" (D) |
| Weight | Gross Weight: 4.75 lbs (2.15 kg) Net Weight: 3.25 lbs (1.47 kg) |
| Available Color | Black |
| Front Panel | |
| Buttons | Power On/Off |
| LED | Power status |
| Expansion Slots | |
| M.2 | 1 M.2 PCIe 4.0 x2 NVMe slot (M-key 2280(default)) 1 M.2 PCIe 4.0 x1 slot (E-key 2230(default); USB 2.0) 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default)/2242) |
| Drive Bays / Storage | |
| M.2 | 1 M.2 PCIe 4.0 x2 NVMe slot (M-key 2280(default)) 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default)/2242) |
| System Cooling | |
| Fans | N/A |
| Power Supply | |
| Power Supply | 1x 150W power supply |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 0°C to 45°C (32°F to 113°F) Non-operating Temperature: 0°C to 60°C (32°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
