ARS-111L-FR
1U Short-depth, front I/O system featuring NVIDIA Grace CPU C1
- 72 Arm Neoverse V2 cores with 4x 128b SVE2
- Support for up to 2 single-width PCIe GPU accelerator cards
- 240GB LPDDR5X Up to 512GB/s Memory bandwidth
- Support NVIDIA® ConnectX®-7 NIC
- Up to 2 PCIe 5.0 x16 FHFL + 1 PCIe 5.0 x16 LP slots
- Up to 2 internal fixed 2.5" NVMe drive bays
- 2 Redundant 800W Platinum/Titanium Level PWS or 600W DC PWS
Key Applications
- Virtualization
- Firewall Applications
- Edge/Cloud Computing Services
- CDN/vCDN/Cloud CDN
- 5G/Telco/NEBS environment
- vRAN/o-RAN
Datasheet
Product Specification
| Product SKUs | ARS-111L-FR |
| Motherboard | Super G1SBC |
| Processor | |
| CPU | Single processor(s) NVIDIA Grace™ CPU C1 |
| Core Count | Up to 72C/72T |
| Note | Supports up to 250W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 2 single-width GPUs |
| Supported GPU | NVIDIA PCIe: L4 |
| System Memory | |
| Memory | Slot Count: Onboard Memory Max Memory: Up to 240GB ECC LPDDR5X |
| On-Board Devices | |
| Chipset | System on Chip |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.2 Gen1 ports |
| Video | 1 mini-DP port |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 64MB UEFI |
| BIOS Features | Plug and Play (PnP) ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | 1U 800W Redundant 100-240Vac Platinum AC power supply |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| CPU | Monitors for CPU thermal trip, Chipset Voltages, Memory |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-515B2-R000NP |
| Dimensions and Weight | |
| Height | 1.7" (43 mm) |
| Width | 17.2" (437 mm) |
| Depth | 16.9" (429 mm) |
| Package | 8" (H) x 27" (W) x 24" (D) |
| Weight | Gross Weight: 14.99 lbs (6.8 kg) Net Weight: 10.01 lbs (4.54 kg) |
| Available Color | No Paint |

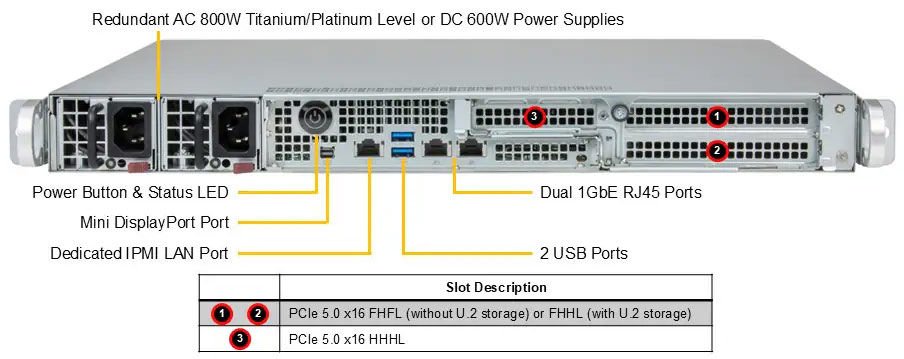

| Front Panel | |
| Buttons | Power On/Off |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 HHHL slot |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 2 bays 2 internal fixed 2.5" NVMe drive bays |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)) |
| System Cooling | |
| Fans | 6 Heavy duty counter-rotating fans with optimal fan speed control 4cm Fan(s) |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 2x 800W | 2x 800W Redundant Platinum Level (94%) power supplies |
| 2x 600W | 2x 600W Redundant Typical 90%+ Level (96%) power supplies |
| 2x 800W | 2x 800W Redundant Titanium Level (96%) power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
