AS-2126FT-HE-ALC
2U 4-Node FlexTwin™ with advanced liquid cooling

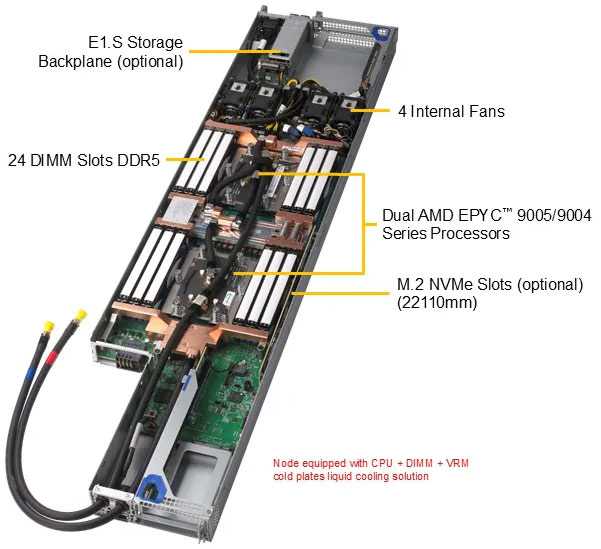

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Dual AMD EPYC™ 9005 Series Processors up to 500W with advanced liquid cooling
- Supports up to 24 DIMM Slots, 6400 MT/s 6TB DDR5 memory
(Please check System Memory Section for detail) - Optional 1 PCIe 5.0 x16 FHHL slot + 1 PCIe 5.0 x16 LP slot
- Flexible networking with up to 1 OCP 3.0 compatible AIOM slots
- Optional 2 E1.S Slots + Optional 2 M.2 NVME drive Slots

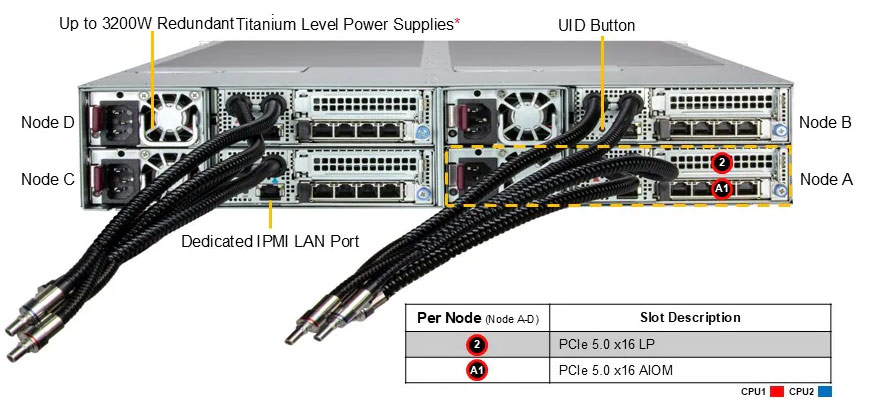

- Total of 2x (2000W, 2700W or 3200W) Redundant (1 + 1) Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)
Key Applications
- Oil & Gas
- Scientific Research
- High Performance Computing (HPC)
- Research Lab
Datasheet
Product Specification
| Product SKU | A+ Server AS -2126FT-HE-ALC |
| Motherboard | Super H14DST-FL |
| Processor (per Node) | |
| CPU | Dual processor(s) AMD EPYC™ 9005 Series Processors |
| Core Count | Up to 192C/384T; Up to 512MB Cache per CPU |
| Note | Supports up to 500W TDP CPUs (Liquid Cooled) |
| System Memory (per Node) | |
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices (per Node) | |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output (per Node) | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 2.0 ports(front) |
| Video | 1 VGA port |
| Serial | 1 COM RS232 port(Front) |
| TPM | 1 TPM Onboard/port 80 |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) UEFI 2.8 USB Keyboard support ACPI 6.5 SMBIOS 3.7 or later |
| Management | |
| Software | Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) KVM with dedicated LAN IPMI 2.0 Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI/APM Power Management Power-on mode control for AC power loss recovery Power button override mechanism, |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-F214EC-000NP |
| Dimensions and Weight | |
| Height | 3.46" (88 mm) |
| Width | 17.67" (449 mm) |
| Depth | 36.08" (916.6 mm) |
| Package | 11.54" (H) x 27.6" (W) x 50.63" (D) |
| Weight | Gross Weight: 174.87 lbs (79.32 kg) Net Weight: 130.18 lbs (59.08 kg) |
| Available Color | Silver |

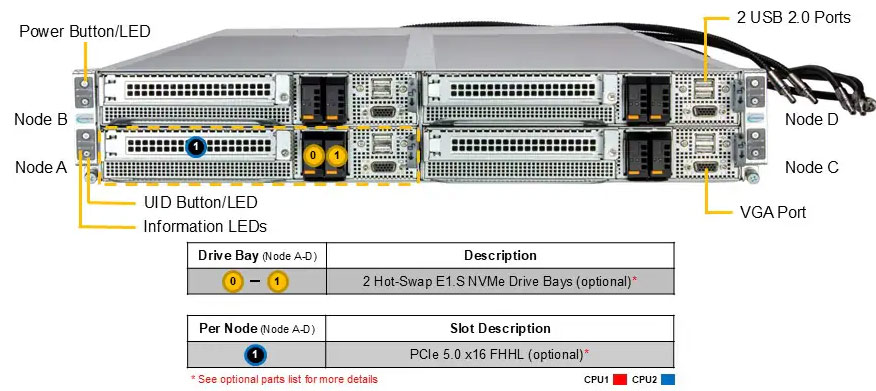

| Front Panel | |
| LED | HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED |
| Buttons | Power On/Off button UID button |
| Expansion Slots (per Node) | |
| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A* 1 PCIe 5.0 x16 (in x16) LP slot 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x16 (in x16) FHHL slot (*Requires additional parts) |
| M.2 | 2 M.2 NVMe slots (M-key 22110(default); optional configuration) |
| Drive Bays / Storage (per Node) | |
| Drive Bays Configuration | Option A: Total 2 bays 2 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110; optional configuration) |
| System Cooling | |
| Fans | Up to 16 counter-rotating 40x40x56mm Fan(s) |
| Air Shroud | 4 Air Shrouds |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
| Power Supply | |
| 2x 2000W | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| 2x 2700W | 2x 2700W Redundant (1 + 1) Titanium Level (96%) power supplies |
| 2x 3200W | 2x 3200W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
