Digi IX25
Rugged 5G cellular platform with edge computing, delivering secure, reliable connectivity for mission-critical industrial and enterprise applications
- Global 5G and LTE connectivity supporting 5G RedCap, eMBB and LTE across public and private cellular networks
- Digi Containers to enable powerful, cost-efficient applications
- Integrated industrial edge computing for real-time data processing, automation and control
- Anterix, FirstNet®, CBRS and private 5G networking support
- Four Gigabit Ethernet ports, serial, I/O and GNSS for flexible, high-performance integration
- Dual SIM/Digi eSIM with eUICC for carrier diversity, redundancy, global scalability and remote carrier switching
- Optional Wi-Fi 6E for local connectivity and failover support
- Digi WAN Bonding and SureLink for WAN aggregation and resilient always-on connectivity
- Rugged, TAA-compliant construction with DIN-rail and shelf-mount options for industrial environments, C1D2 and ATEX rated
- FIPS 140-3 security, VPN, firewall, logging and authentication — license-free enterprise software
- Includes the Digi 360 solution with warranty, customer care and SOC 2® Type 2 Digi
- Remote Manager to streamline setup, mass configuration and lifecycle management
Datasheet
| SPECIFICATIONS | Digi IX25 with Digi 360* |
|---|---|
| WIRELESS INTERFACES | |
| CELLULAR / WWAN** | |
| CERTIFICATIONS** | Visit product certifications for latest approvals and updates |
| 5G eMBB: IX25-5A-1G | 5G NR bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48 (CBRS), n66, n71, n75, n76, n77, n78, n79 (C-band) 4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 (FirstNet®), B17, B20, B25, B26, B28, B29, B30, B32, B34, B38, b39, B40, B41, B42, B43, B48 (CBRS), B66, B71, B106 (Anterix) |
| 5G REDCAP: IX25-RA-1G, IX25-RA-0G | 5G NR bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48 (CBRS), n66, n70, n71, n75, n77, n78, n79 (C-band) 4G LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 (FirstNet®), B17, B20, B25, B26, B28, B29, B30, B32, B38, B40, B41, B42, B43, B46, B48 (CBRS), B66, B71, B106 (Anterix) |
| LTE: IX25-4A-1G, IX25-4A-0G | 4G LTE bands: B1, B2, B3, B4, B5, B7, B8, B8_US (Anterix), B12, B13, B14 (FirstNet®), B18, B19, B20, B25, B26, B28 3G bands: B1, B2, B4, B5, B6, B8, B19 2G bands: B2, B3, B5, B8 |
| CONNECTORS | LTE and RedCap: (3) 50 Ω SMA (center pin: female); eMBB: (5) 50 Ω SMA (center pin: female) |
| SIM SLOTS / ESIM SUPPORT | (2) Nano-SIM (4FF) slots; soldered MFF2 Digi eSIM with eUICC (SGP .32) for remote provisioning and carrier switching |
| SIM SECURITY | SIM slot cover plate included |
| GNSS | |
| TECHNOLOGY | GNSS Gen 9 with band L1 LNA for passive antenna use |
| ANTENNA | Upper L-band: GPS L1; Glonass G1; Beidou B1; Galileo E1 IX25 supports passive GNSS antennas rated at 1.5 – 3 dBi or active antennas with 7.5 – 26 dB gain (3.3 V feed) |
| PROTOCOL | NMEA 4.11 and TAIP |
| CONNECTOR | (2) 50 Ω SMA center pin: female |
| Wi-Fi 6E | |
| TECHNOLOGY | Dual band Wi-Fi 6E 802.11 a/b/g/n/ac/ax 2x2 MIMO for high-speed, reliable wireless connectivity (including 2.4 GHz, 5 GHz and 6 GHz) |
| CONNECTOR | (2) 50 Ω RP-SMA (male) |
| WIRED INTERFACES | |
| ETHERNET | |
| PORTS / CONNECTOR | (4) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN |
| I/O | |
| PORTS / CONNECTOR | (2) Digital input/outputs |
| SERIAL | |
| PORTS / CONNECTOR | (1) RJ-50 (RS-232/485, software-selectable) |
| SOFTWARE & MANAGEMENT* | |
| REMOTE MANAGEMENT | Digi Remote Manager (cloud based); SNMP v1/v2c/v3 (user installed/managed), SMS |
| LOCAL MANAGEMENT | WebUI (HTTPS); CLI (SSH, Serial) |
| MANAGEMENT/ TROUBLESHOOTING TOOLS | SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog |
| COMPUTE | |
| APPLICATION PROCESSOR | 1.2 GHz quad-core ARM® Cortex®-A53 processor |
| RAM / FLASH | 1 GB DDR / 8 GB eMMC |
| PHYSICAL | |
| DIMENSIONS (L X W X H) | 146 mm x 118 mm x 38 mm (5.74 in x 4.64 in x 1.49 in) |
| WEIGHT | 590 g (1.3 lb) |
| STATUS LEDS | PWR, WWAN, Wi-Fi, GNSS, Ethernet (link, activity) |
| ENCLOSURE/RATING | ABS/PC blend; IP30; private labeling options |
| POWER REQUIREMENTS | |
| POWER INPUT | 9 – 30 VDC, reverse polarity protection, 9 – 30 VDC passive Power over Ethernet (PoE), USB Type-C Power Delivery (PD) |
| POWER CONNECTOR | 4-pin Molex connector or USB Type-C Power Delivery (PD) |
| POWER CONSUMPTION | Idle power: 2.3 W (197 mA at 12 VDC)** — serial enabled |
| ENVIRONMENTAL | |
| HAZARDOUS (CLASS 1 DIV 2) | Complete |
| OPERATING TEMPERATURE | −40 °C to 75 °C (−40 °F to 167 °F); Wi-Fi disabled at 60 °C to 70 °C (140 °F to 158 °F) |
| STORAGE TEMPERATURE | −40 °C to 85 °C (−40 °F to 185 °F) |
| RELATIVE HUMIDITY | 0% to 95% (non-condensing) at 25 °C (77 °F) |
| APPROVALS*** | |
| CELLULAR | PTCRB, AT&T, FirstNet Capable™, T-Mobile, Verizon, Anterix™ Active |
| SAFETY / SECURITY | IEC 62368-1, CB scheme, FIPS 140-3 |
| ENVIRONMENTAL | Hazardous location: ATEX Zone 2; C1D2 (UL 121201); MIL-STD-810H (high and low temperature, vibration, shock) |
| EMISSIONS/IMMUNITY | FCC Part 15 Subpart B, ISED, CE, RED, UKCA, RCM |
| WARRANTY**** | |
| PRODUCT WARRANTY | 1-year |
*Includes the Digi 360 solution for Digi IX25 (1-year) with Digi Remote Manager, warranty and customer care.
**Preliminary values. Measurements are subject to change pending final validation and may vary based on configuration and operating conditions.
***Visit product certifications for latest approvals and updates.
****Product warranty can be extended with Digi 360 extensions or renewals.
**Preliminary values. Measurements are subject to change pending final validation and may vary based on configuration and operating conditions.
***Visit product certifications for latest approvals and updates.
****Product warranty can be extended with Digi 360 extensions or renewals.
Digi IX25 Industrial Cellular Router
Rugged 5G Cellular Platform with Edge Computing
Digi IX25 is a rugged 5G cellular platform with integrated edge computing and Digi Remote Manager, purpose-built for industrial and enterprise applications. The IX25 family includes LTE, 5G RedCap and 5G eMBB variants, each built with trusted Western cellular modules and manufactured in TAA-compliant facilities. It delivers secure, high-performance connectivity and enables rapid processing, analysis and integration of distributed asset data.

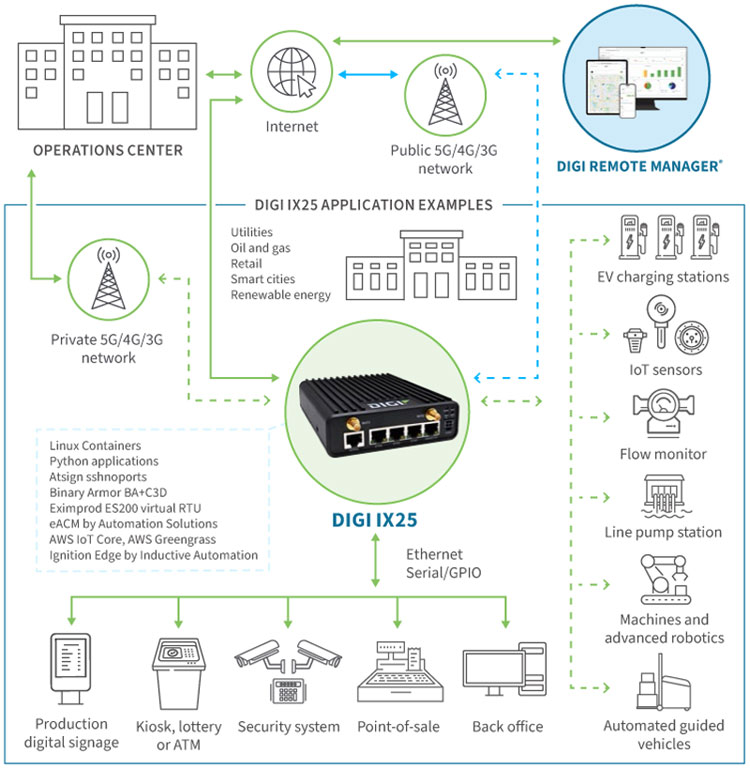

Seamlessly connect multiple machines, whether wired or wireless, in the most demanding environments — enabling integration of OT and IT to streamline operations and scale infrastructure. With its all-in-one design, Digi IX25 lowers total cost of ownership, reduces complexity and ensures reliability for a range of applications including industrial, oil and gas, utilities and enterprise, including SCADA, telemetry, predictive maintenance, machine control, branch failover, unattended retail, ATMs, kiosks, lottery terminals and digital signage.
With four Gigabit Ethernet ports, dual SIM/Digi eSIM with eUICC, serial, GNSS and optional Wi-Fi 6E, Digi IX25 provides flexible, secure deployment options for edge connectivity. Integrated edge computing and Digi Containers enable rapid deployment of custom applications and analytics directly on the device, reducing latency and cloud dependency. Together with SOC 2 Type 2 compliant Digi Remote Manager, the IX25 simplifies large-scale deployments while ensuring enterprise-class reliability.
Ordering Information
| Description | Part Number |
|---|---|
| Digi IX25 — 5G eMBB with LTE Cat 19 fallback, Wi-Fi 6E 5G eMBB with LTE Cat 19 fallback Edge computing, GNSS, Wi-Fi 6E, eSIM, Worldwide, Anterix, FirstNet Capable, CBRS, Quad Ethernet, RJ50 Serial RS-232/485, USB 20, GPIOs, DC power cable | IX25-5A-1G |
| Digi IX25 — 5G RedCap with LTE Cat 4 fallback, Wi-Fi 6E 5G RedCap with LTE Cat 4 fallback, Edge computing, GNSS, Wi-Fi 6E, eSIM, Worldwide, Anterix, FirstNet Capable, CBRS, Quad Ethernet, RJ50 Serial RS-232/485, USB 20, GPIOs, DC , power cable | IX25-RA-1G |
| Digi IX10 — LTE Cat 4 Global 5G RedCap with LTE Cat 4 fallback Edge computing, GNSS, eSIM, Worldwide, Anterix, FirstNet Capable, CBRS, Quad Ethernet, RJ50 Serial RS-232/485, USB 20, GPIOs, DC , power cable | IX25-RA-0G |
| Digi IX25 — LTE Cat 4, Wi-Fi 6E LTE Cat 4, Edge computing, GNSS, Wi-Fi 6E, eSIM, Worldwide, Anterix, FirstNet Capable, CBRS, Quad Ethernet, RJ50 Serial RS-232/485,USB 20, GPIOs, DC , power cable | IX25-4A-1G |
| Digi IX25 — LTE Cat 4 LTE Cat 4, Edge computing, GNSS, eSIM, Worldwide, Anterix, FirstNet Capable, CBRS, Quad Ethernet, RJ50 Serial RS-232/485, USB 20, GPIOs, DC , power cable | IX25-4A-0G |
