Digi TX65 5G
Rugged 5G vehicle router family delivering secure, high-performance connectivity and centralized management for fleet, transit and public safety applications
- 5G eMBB vehicle router family based on Qualcomm SDX72
- Built on a 3GPP Release 17 5G platform enabling higher uplink performance, improved spectral efficiency and enhanced support for public safety and mobility use cases
- Each modem includes dual 4FF SIM slots; 5B modem add an embedded eSIM for zero-touch device setup
- Wi-Fi 7 tri-band, dual-concurrent 2.4 and 5/6 GHz per radio, with single or dual-radio options
- Multi-gigabit Ethernet: 2.5 GbE WAN and four 1 GbE LAN ports
- Optional dual-modem configuration for multi-carrier resilience
- GNSS support for fleet visibility and location-aware applications
- Locking USB-C and RJ50 serial for secure peripheral connections
- Ignition-aware power with 9 to 36 VDC vehicle integration input
- Includes the Digi 360 solution with warranty, customer care and SOC 2 Type 2 Digi Remote Manager cloud management to mass configure, deploy and maintain in-vehicle devices
| Model | Digi TX65 5G with Digi 360* |
|---|---|
| WIRELESS INTERFACES | |
| CELLULAR / WWAN** | |
| “5B” MODEM: 5G NR SUB-6 GHZ QUALCOMM SDX72, COMPLIANT WITH 3GPP RELEASE 17, WITH LTE FALLBACK AND DUAL SIM DUAL STANDBY (DSDS) | 5G NR Sub-6: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48 CBRS, n66, n70, n71, n77, n78; 4G LTE-Advanced Pro: B2, B4, B5, B7, B12, B13, B14 FirstNet®, B17, B25, B26, B29, B30, B38, B41, B42, B43, B48 CBRS, B66, B71 Power Class 1.5 (29 dBm): n38, n41, n77, n78 |
| “5A” MODEM: SECONDARY 5G NR 3GPP RELEASE 16 SUB-6 GHZ WITH LTE FALLBACK | 5G NR Sub-6: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48 CBRS, n66, n71, n75, n76, n77, n78, n79, C-band; 4G LTE-Advanced Pro: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B20, B25, B26, B28, B29, B30, B32, B38, B40, B41, B42, B43, B46, B48 CBRS, B66, B71; WCDMA: B1, B2, B3, B4, B5, B6, B8, B19 Power Class 1.5 (29 dBm): n41, n77, n78, n79 |
| CONNECTORS | Single cellular models: (4) 50 Ω SMA (center pin: female) Dual cellular models: (8) 50 Ω SMA (center pin: female) |
| SIM SLOTS | (2) Nano-SIM (4FF) slots; dual standby; soldered MFF2 Digi eSIM with eUICC (SGP.32) for remote provisioning and carrier switching (user selectable between one of the 4FF and eSIM slots) |
| SIM SECURITY | SIM slot cover plate with security screws included |
| WI-FI | |
| TECHNOLOGY | Single or dual Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be) radios each supporting tri-band dual-concurrent 2.4 and 5/6 GHz operation |
| SECURITY | WPA2 and WPA3 Personal and Enterprise, Open and Open Enhanced security standards |
| HOTSPOT | Captive portal with customizable splash page, terms and conditions, shared password, user-specific password, RADIUS authentication |
| THIRD-PARTY SERVICES | Content filtering, embedded advertising |
| MODES | Up to 8 access points and up to 64 clients |
| CONNECTORS | Single Wi-Fi: (2) 50 Ω RP-SMA (center pin: male) Dual Wi-Fi: (4) 50 Ω RP-SMA (center pin: male) |
| GNSS | |
| TECHNOLOGY | GPS, Galileo, BeiDou, GLONASS and QZSS with multiple geofence support |
| SENSITIVITY | Acquisition sensitivity: −147 dBm; Tracking sensitivity: −158 dBm; Accuracy (open sky): 1.5 m (4.92 ft) |
| PROTOCOL | NMEA 0183 4.0, TAIP |
| CONNECTOR | (1) 50 Ω SMA (center pin: female); +3.3 VDC active antenna drive |
| WIRED INTERFACES | |
| ETHERNET | |
| PORTS / CONNECTOR | (1) WAN 2.5 GbE, RJ-45; (4) LAN 1 GbE, RJ-45 All ports WAN/LAN switchable |
| SERIAL | |
| PORTS / CONNECTOR | (1) EIA RS-232 DTE / RS-485, 10-pin RJ-50 |
| USB | |
| PORTS / CONNECTOR | (1) USB 3.1 with DRD (Dual-Role Data) / DRP (Dual-Role Power) support, Type-C |
| GPIO | |
| PORTS / CONNECTOR | (1) Digital I/O and (1) ignition sense included with the 4-pin Molex power input connector |
| SOFTWARE AND MANAGEMENT* | |
| REMOTE MANAGEMENT | Digi Remote Manager (cloud based); SNMP v2c/v3 (user installed/managed) |
| LOCAL MANAGEMENT | Web UI (HTTPS); CLI (SSH, serial) |
| MANAGEMENT TOOLS | SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog |
| MEMORY | |
| RAM / FLASH | 2 GB / 8 GB |
| PHYSICAL | |
| DIMENSIONS (L X W X H) | 192 mm x 133 mm x 43 mm (7.56 in x 5.24 in x 1.69 in) |
| WEIGHT | 1.1 kg (2.5 lbs) |
| STATUS LEDS | Power, WWAN 1, WWAN 2, Wi-Fi 1, Wi-Fi 2, GNSS |
| ENCLOSURE / RATING | Aluminum alloy / IP64 |
| POWER*** | |
| POWER INPUT | 9–36 VDC; power source required (TX65-5B-1N: 22 W, TX65-5B-2N: 30 W, TX65-5B5A-2N: 36 W) Ignition sense, reverse polarity protection 4-pin Molex or locking USB-C power input (USB PD 3.0 source required; 12 V, 36 W recommended) |
| POWER CONSUMPTION | 18 W typical (idle); 36 W (peak RF Tx/Rx —TX65-5B5A-2N) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | −40 °C to 75 °C (−40 °F to 167 °F) |
| STORAGE TEMPERATURE | −40 °C to 85 °C (−40 °F to 185 °F) |
| RELATIVE HUMIDITY | 5% to 95% (non-condensing) at 25 °C (77 °F) |
| APPROVALS** | |
| CELLULAR | PTCRB, AT&T, AT&T FirstNet®, T-Mobile, Verizon, Verizon Frontline |
| SAFETY | IEC 62368 |
| VEHICLE | SAE J1113, ISO 16750-2, EN 50155 |
| EMISSIONS / IMMUNITY | FCC Part 15 Class B, ICES-003 |
| PROCUREMENT COMPLIANCE | TAA compliant; can support FTA Buy America and BABA procurement requirements |
| ENVIRONMENTAL | MIL-STD-810H (temperature, humidity, vibration, shock, dust and salt fog) |
| WARRANTY***** | |
| PRODUCT WARRANTY | 1-year |
*Includes the Digi 360 solution for Digi TX65 (1-year)
**Visit product certifications for latest approvals and updates.
***76002161 (18 VDC, 1.66 A / ~30 W max) supports TX65-5B5A-2N bench evaluation only, not full-load operation. For production use, power via the included Molex DC power cable (63000484-01) from a source meeting TX65 input requirements.
****Product warranty can be extended with Digi 360 extensions or renewals.
*****For a comprehensive list of operating system features, please visit digi.com/solutions/by-technology/dal-operating-system/features
Digi TX65 5G Cellular Vehicle Router

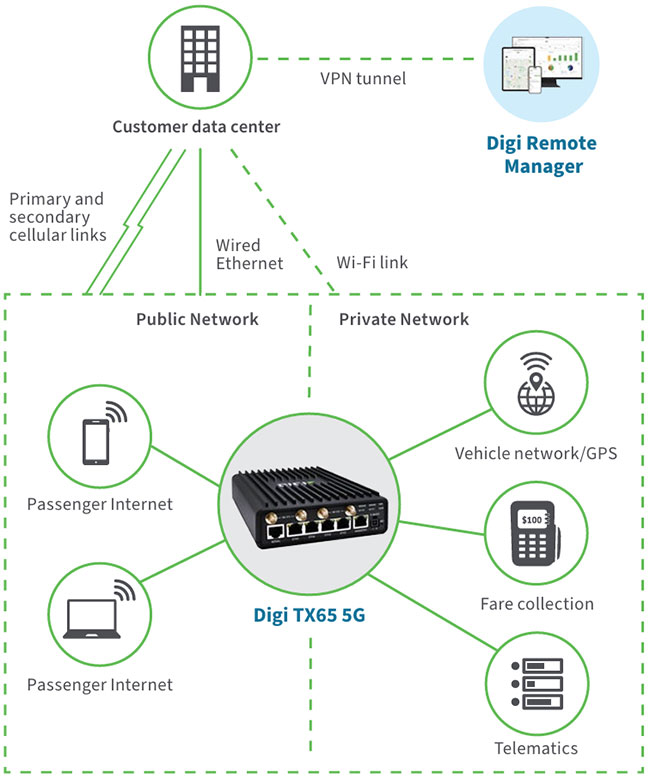

Designed for demanding transportation, public safety and mobile industrial environments, Digi TX65 delivers secure, high-performance connectivity for vehicles operating at speed and at scale. Whether enabling passenger Wi-Fi and fare collection on transit systems, supporting real-time video and CAD/AVL in emergency response vehicles, or connecting field technicians and mobile assets, Digi TX65 keeps critical systems online and prioritized. Its rugged design and advanced 5G capabilities ensure reliable performance across dense urban corridors, remote routes and rapidly changing network conditions.
Digi TX65 includes the Digi 360 solution, providing access to Digi Remote Manager (DRM) for centralized deployment, configuration and ongoing management. Organizations can rapidly provision devices, monitor health and performance, enforce security policies and receive real-time alerts across their entire fleet. Remote updates and out-of-band access reduce downtime and eliminate costly manual intervention, while built-in intelligence prioritizes operational traffic such as onboard systems, public safety data or telemetry, and allocates remaining bandwidth for passenger or auxiliary use.
Digi TX65 integrates easily into existing ecosystems with support for captive portals, branded user experiences and third-party security or filtering services. Flexible configurations — including single or dual Wi-Fi radios and optional dual-modem variants — enable resilient, multi-carrier connectivity for uninterrupted service. GNSS supports location-aware applications and fleet tracking, while ignition-aware power and secure connectors ensure dependable operation in harsh vehicle environments.
Ordering Information
| Model Name | Part Number | Description |
|---|---|---|
| Digi TX65 5G with Wi-Fi 7 | TX65-5B-1N |
|
| Digi TX65 5G with dual Wi-Fi 7 | TX65-5B-2N |
|
| Digi TX65 5G with dual Wi-Fi 7 and dual cellular | TX65-5B5A-2N |
|
