Digi ConnectCore 6+ SBC
NXP i.MX6Plus based surface-mount module solution with scalable, quad-core performance and integrated wireless connectivity
- Compact off-the-shelf SBC
- Scalable capabilities and i.MX6Plus performance
- Gigabit Ethernet and pre-certified dual-band 802.11ac + Bluetooth® 5
- Seamless cellular modem and Digi XBee® integration
- Complete set of available peripherals and interfaces with customization options
- Designed for flexibility and reliability
- Yocto Linux and Android software platform support
- Industrial operating temperature available
Datasheet
| SPECIFICATIONS | Digi ConnectCore® 6+ SBC |
|---|---|
| APPLICATION PROCESSOR | NXP i.MX6Plus encompasses a quad-core Arm® Cortex®-A9 platform running up to 1.0 GHz with 1 MB of L2 cache, and optimized 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB busses, PCI Express® and SATA-2 provide excellent connectivity. |
| MEMORY | 8 GB eMMC, 2 GB DDR (64-bit) |
| PMIC | Dialog DA9063 |
| GRAPHICS | LVDS, MIPI display port, MIPI camera port and HDMI v1.4 |
| SECURITY | RNG, TrustZone, Ciphers, Security Control, Secure RTC, Secure JTAG, eFuses (OTP) |
| PERIPHERALS / INTERFACES | MMC 4.4/SD 3.0 x3MMC 4.4/SDXC, UART x5 (5 Mbps), MIPI HSI, S/PDIF Tx/Rx, I2C x3, SPI x5, ESAI, I2S/SSI x3, FlexCAN x2, MLB150 + DTCP, S-ATA and PHY (3 Gbps), USB2 OTG and PHY, USB 2.0 Host and PHY, USB 2.0 HSIC Host x2, PWM, 3.3V GPIO, Keypad, PCIe 2.0 (x1 lane), HDMI and PHY, MIPI DSI, MIPI CSI2, 20-bit CSI, 24-bit RGB, LVDS (x2), RTC, External address/data bus, Watchdog, Timers, JTAG |
| EXTERNAL BUS | 26-bit address / up to 32-bit data (multiplexed and non-multiplexed modes) |
| DISPLAYS | 1 x HDMI (Type A) 2 x LVDS with backlight control and I2C touch interface (HIROSE DF14A-20P-1.25H) 1 x Parallel LCD (24-bit) with backlight control and I2C touch interface (Omron XF2M-4015-1A) 1 x MIPI-DSI with backlight control and I2C touch interface (FCI SFW15S-2STE1LF, compatible with Raspberry Pi DSI) |
| CAMERA | 1 x 8-Bit Parallel Camera Interface 1 (Omron XF2M-2015-1A) 1 x 8-Bit Parallel Camera Interface 0 (Molex 53047-1410) 1 x MIPI CSI-2 (FCI SFW15S-2STE1LF, compatible with Raspberry Pi CSI) |
| USB 2.0 | 2 x Ux USB OTG (Micro AB); 1 x USB Host (Molex 53047-0610) |
| AUDIO | 1 x Line-In (3.5 mm stereo jack, CUI SJ1-3515-SMT) 1 x Line-In, 1 x Line-Out, 1 x Mic-In (Molex 53047-0810) On-board NXP SGTL5000 audio codec |
| CONSOLE (RS-232) | Yes |
| SATA 3.0 | Yes |
| MICRO-SIM | Yes |
| PCI EXPRESS MINI CARD | Provides PCI Express x1, USB 2.0 Host, I2C, SIM, Reset, Wake-Up signals. Supports mounting of half-size and full-size PCI Express Mini Cards. |
| BOOT CONFIGURATION | eMMC / SD / SATA |
| DIGI XBEE SOCKET | Yes |
| WI-FI | 802.11a/b/g/n/ac |
| BLUETOOTH | Bluetooth 5 |
| ON-MODULE MICROCONTROLLER | Digi Microcontroller Assist (MKL14Z32VFT4) |
| ANTENNA CONNECTORS | 1 x U.FL (on SOM) |
| ETHERNET | Gigabit Ethernet |
| CAN BUS | 2 x FlexCAN (Molex 53047-0610) |
| GPIO / I2C / SPI / UART | 1 x GPIO (8 x i.MX GPIOs + 4 MCA GPIOs - Molex 53047-1410) 1 x I2C (Molex 53047-0310), 1 x SPI (Molex 53047-0610) 3 x UART (4-wire TX/RX/RTS/CTS, 1 shared with Digi XBee socket, Molex 53047-1410) |
| DEBUG | 1 x JTAG for i.MX6 (FCI 20021111-00010T4LF) 1 x SWD for MCA (FCI 20021111-00010T4LF) Headers populated on development units only; production units without header for plug of nails (Tag-Connect TC2050-IDC-NL) |
| POWER BUTTON | Power on, power off, sleep, wake-up |
| RESET BUTTON | Yes |
| USER LEDS | 1 x Red, 1 x Yellow, 1 x Green |
| COIN CELL CONNECTOR | Yes |
| SUPPLY VOLTAGE | 5 V @ 3.2 A (typical, depending on use-case) |
| POWER SUPPLY CONNECTOR | Main power supply via 2 mm locking barrel connector |
| OPERATING TEMPERATURE | -40° C to 85° C (-40° F to 185° F) |
| STORAGE TEMPERATURE | -50° C to 125° C (-58° F to 257° F) |
| RELATIVE HUMIDITY | 5% to 90% (non-condensing) |
| RADIO APPROVALS | US, Canada, EU, Australia / New Zealand |
| EMISSIONS / IMMUNITY / SAFETY | FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety UL/UR (or equivalent) |
| DESIGN VERIFICATION | Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78 Vibration / Shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT |
| MECHANICAL DIMENSIONS | LGA-400, 2 mm pitch, fully shielded (heat-spreading) |
Digi ConnectCore 6+ SBC
NXP i.MX6Plus based surface-mount module solution with scalable, quad-core performance and integrated wireless connectivity

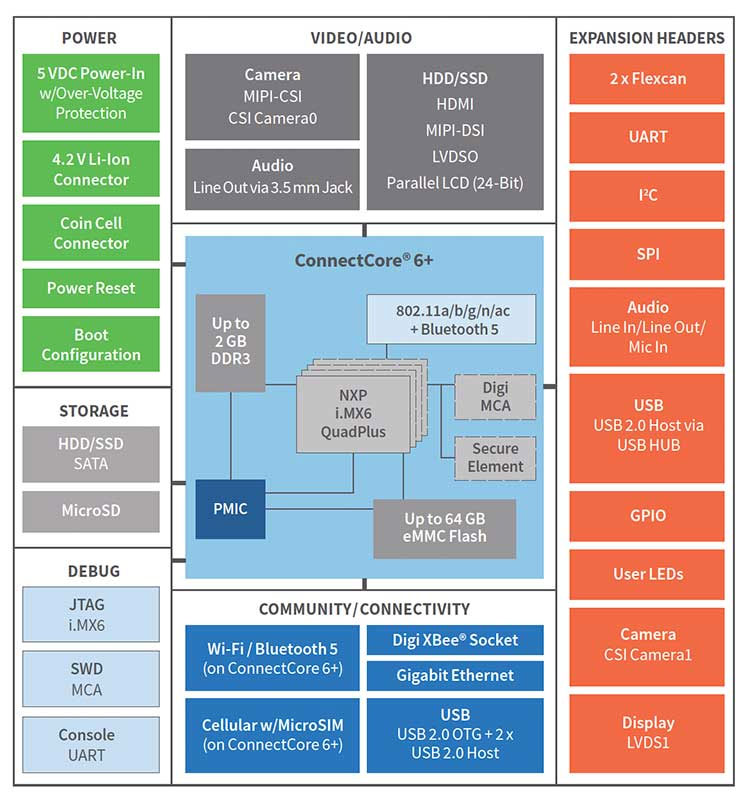

Digi ConnectCore 6+ SBC is an ultra-compact and versatile off-the-shelf single board computer (SBC). It offers significantly reduced time to market by virtually eliminating the traditional risk, effort and complexity of custom board designs without sacrificing flexibility or capabilities.
Built on the Digi ConnectCore 6+ module, it provides a common platform with scalable NXP i.MX6Plus performance, pre-certified Bluetooth® 5 and Wi-Fi integration, Digi XBee RF module and cellular connectivity options, Gigabit Ethernet support, multi display/camera and audio support, external storage, expansion connectors and reliability in harsh environments.
Leading and innovative features such as the Digi Microcontroller Assist™ (MCA) enable the development of connected products with highly optimized power footprints. Optional Digi Remote Manager® integration provides secure remote management and device health capabilities for the Internet of Things.
Ordering Information
| Description | Part Number |
|---|---|
| Digi ConnectCore 6+ SBC, i.MX6QuadPlus, 1.0 Ghz, -40 to 85°C, 8 GB flash, 2 GB DDR3, 802.11a/b/g/n/ac, Bluetooth® 5, Ethernet | CC-SB-WMX-KK8D |
