Digi ConnectCore 6N SBC
Reliable and compact NXP i.MX6 SBC family with integrated Ethernet, Wi-Fi, Bluetooth, Digi XBee and cellular connectivity options
- Compact off-the-shelf SBC family
- Scalable capabilities and i.MX6Quad/Dual performance
- Gigabit Ethernet and pre-certified dual-band Wi-Fi 5 and Bluetooth® 5.0
- Ready for cellular connectivity and Digi XBee® RF
- Complete set of available peripherals and interfaces with customizable options
- Designed for flexibility and reliability
- Windows® Embedded Compact, Yocto Project® Linux® and Android™ software platform support
- Industrial operating temperature available
Datasheet
| Specifications | Digi ConnectCore 6N SBC |
|---|---|
| Application Processor | On-board ConnectCore 6N multi-chip module with NXP i.MX6Quad/i.MX6Dual, Industrial (Dual - 800 MHz) and Extended Commercial (Quad - 1.2 GHz) options |
| Memory | 4 GB eMMC flash, 1 GB DDR (64-bit) |
| Graphics | Multi-stream-capable HD video engine with 1080p60 decode, 1080p30 encode and 3D video playback in HD in high-performance families; Superior 3D graphics performance with up to 4 shaders at 200 Mt/s w/ OpenCL support; Separate 2D and/or Vertex acceleration engines for UI support; Stereoscopic image sensor support for 3D imaging |
| Security | RNG, TrustZone, Ciphers, Security Cntrl, Secure RTC, Secure JTAG, eFuses (OTP) |
| Displays | 1x HDMI (Type A); 2x LVDS with backlight control and I2C touch interface (Hirose DF14A-20P-1.25H); 1x Parallel LCD (24-bit) with backlight control and I2C touch interface (Omron XF2M-4015-1A); 1x MIPI-DSI with backlight control and I2C touch interface (FCI SFW15S-2STE1LF, compatible with Raspberry Pi DSI) |
| Camera | 1x 8-Bit Parallel Camera Interface 1 (Omron XF2M-2015-1A); 1x 8-Bit Parallel Camera Interface 0 (Molex 53047-1410); 1x MIPI CSI-2 (FCI SFW15S-2STE1LF, compatible with Raspberry Pi CSI) |
| USB 2.0 | 2x USB Host (Dual Type A), 1x USB OTG (Micro AB), 1x USB Host (Molex 53047-0610) |
| Audio | 1x Line-In (3.5 mm stereo jack, CUI SJ1-3515-SMT); 1x Line-In, 1 x Line-Out, 1 x Mic-In (Molex 53047-0810); On-board NXP SGTL5000 audio codec |
| Console (RS232) | Molex 53047-0310 |
| SATA 3.0 | 3M 5607-5102-SH |
| Micro-SIM | Yes |
| PCI Express Mini Card | Foxconn AS0B226-S68Q-7H; Provides PCI Express x1, USB 2.0 Host, I2C, SIM, Reset, Wake-Up signals; Supports mounting of half-size and full-size PCI Express Mini Cards |
| Boot Configuration | eMMC / SD / SATA |
| XBee Socket | Samtec MMS-110-01-L-SV |
| Wi-Fi | 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 5.0 |
| Antenna Connectors | 1x U.FL / 2x U.FL |
| Gigabit Ethernet | RJ-45, with two LEDs for link/speed/activity |
| CAN Bus | 2x FlexCAN (Molex 53047-0610) |
| GPIO/I2C/SPI/UART | 1x GPIO (8 x i.MX GPIOs + 4 Kinetis GPIOs, Molex 53047-1410); 1x I2C (Molex 53047-0310), 1x SPI (Molex 53047-0610); 3x UART (4-wire TX/RX/RTS/CTS, 1 shared with Digi XBee socket, Molex 53047-1410) |
| Debug | 1x JTAG for i.MX6 (FCI 20021111-00010T4LF); 1x SWD for Digi MCA (FCI 20021111-00010T4LF); Headers populated on development units only; Production units without header for plug of nails (Tag-Connect TC2050-IDC-NL) |
| Power Button | Power on, power off, sleep, wake-up |
| Reset Button | Yes |
| User LEDs | 1x Red, 1x Yellow, 1x Green |
| Coin Cell Connector | Molex 53047-0210 |
| Supply Voltage | 5 V @ 3.2 A (typical, depending on use-case) |
| Power Supply Connector | Main power supply via 2 mm locking barrel connector |
| Operating Temperature | Ext. Commercial: -20° C to 70° C (-4° F to 158° F) / Industrial: -40° C to 85° C (-40° F to 185° F) |
| Storage Temperature | -50° C to 125° C (-58° F to 257° F) |
| Relative Humidity | 5% to 90% (non-condensing) |
| Radio Approvals | US, Canada, EU, Japan, Australia/New Zealand, Brazil |
| Emissions / Immunity / Safety | FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3: ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada); RSS-210 Issue 5 Section 6.2.2(o), EN 300 328; EN 301 489-17, EN 55024, EN 301 489-3, Safety (IEC 62368-1) |
| Product Warranty | 1-year |
Digi ConnectCore 6N SBC
Reliable and compact NXP i.MX6 SBC family with integrated Ethernet, Wi-Fi, Bluetooth, Digi XBee and cellular connectivity options
Digi ConnectCore 6N SBC is an ultra-compact and versatile off-the-shelf single board computer (SBC) platform. It offers significantly reduced time-to-market by virtually eliminating the traditional risk, effort, and complexity of custom board designs without sacrificing flexibility or capabilities.

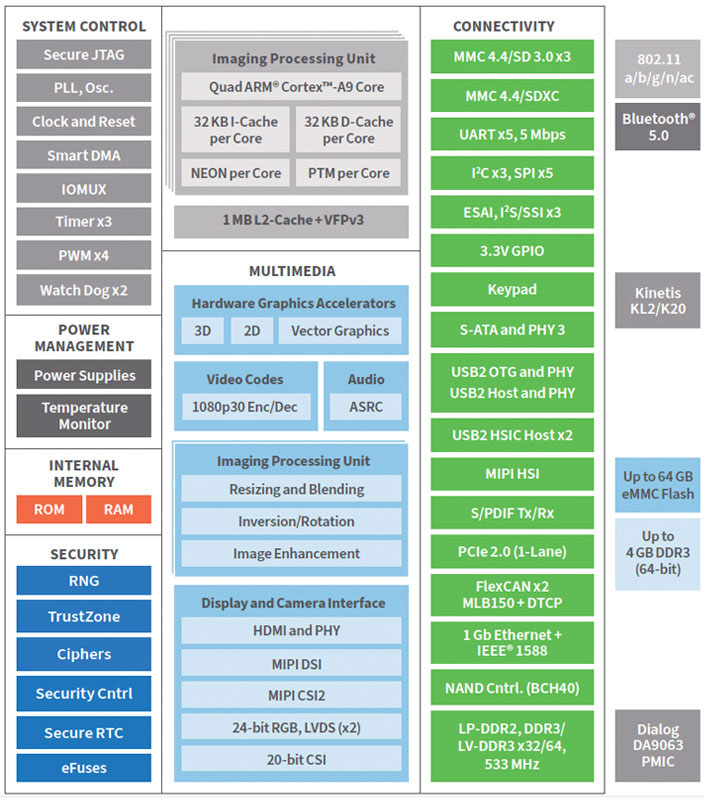

Built on the Digi ConnectCore 6N System-On-Module (SOM), it provides a common platform with scalable NXP® i.MX6 performance, pre-certified Wi-Fi 5 and Bluetooth 5.0 integration, Digi XBee® RF module and cellular connectivity options, Gigabit Ethernet support, multi display/camera and audio support, external storage, expansion connectors, and reliability in harsh environments.
Leading and innovative features such as Digi Microcontroller Assist™ (MCA) enable the development of connected products with highly optimized power footprints. Optional Digi Remote Manager® integration provides secure remote OTA firmware updates, device management and health capabilities for the Internet of Things.
Ordering Information
| Description | Part Number |
|---|---|
| Digi ConnectCore 6N SBC, i.MX6Quad, Ext. Commercial, 1.2 GHz, -20 to 70° C, 4 GB eMMC flash, 1 GB DDR3, 802.11a/b/g/n/ac, Bluetooth 5.0, Ethernet | CC-SB-WMX-J97C-N |
| ConnectCore 6N SBC, i.MX6Dual, Industrial, 800 MHz, -40 to 85° C, 4 GB eMMC flash, 1 GB DDR3, 802.11a/b/g/n/ac, Bluetooth 5.0, Ethernet | CC-SB-WMX-L87C-N How to Buy |
| Digi ConnectCore 6N SBC Development Kit: ConnectCore 6N Development Kit with SBC baseboard, UART console cable, power supply and accessories (Linux, Android) | CC-WMX6N-KIT |
