Digi ConnectCore 95 SOM
High-performance wireless all-in-one SOM solution based on NXP i.MX 95 with integrated cloud, security, AI/ML services and scalability for industrial IoT applications
- All-in-one platform in a system-on-module
- Complete industrial i.MX 95 embedded SOM platform
- Fully integrated solution with SOC 2® Type 2 compliant Essential Digi ConnectCore® Cloud
- Services and Digi ConnectCore Security Services
- AI/ML NXP® eIQ® Neutron neural processing unit (NPU)
- Pre-certified tri-band 802.11ax Wi-Fi 6E and Bluetooth® 5
- Digi SMTplus® form factor (40 x 45 mm) for ultimate reliability
- Superior power management, hardware and software support
- Seamless cellular modem and Digi XBee® integration
- High level of pin compatibility with Digi ConnectCore SOMs
- Built-in Digi TrustFence® device security, identity and privacy
- Digi Embedded Yocto® Linux support
| Specifications | Digi ConnectCore 95 SMT SOM |
|---|---|
| APPLICATION PROCESSOR | NXP® i.MX 95 Up to 6x Cortex®-A55 core, up to 1.8 GHz (64-bit) |
| MEMORY | Up to 128 GB flash (eMMC), up to 16 GB LPDDR5 (32-bit, ECC) |
| ARTIFICIAL INTELLIGENCE* | AI/ML NXP eIQ® Neutron NPU N3-1024S, 2 TOPs (hardware), up to 8 TOPs sparse model performance |
| PMIC | NXP PF09 + PF53 and Energy Flex Multi-Domain architecture for maximum power efficiency |
| VIDEO / GRAPHICS | GPU: Arm Mali G310 GPU (OpenGL® ES 3.2, Vulkan ® 1.2, OpenCL 3.0), 2D Blitter VPU: 4K60P H.265/H.264 decode or encode (4K30P H.265/H.264 simultaneous encode & decode) LCD: Up to 3 simultaneous displays, 1x 333Mpixel/s MIPI-DSI (4-lane, 2.5 Gbps/lane) supporting 4K30P or 3840x1440P60, up to 1080p60 LVDS Tx (1x 8-lane) or 2x 1080P30 (2x 4-lane) |
| CAMERA | MIPI-CSI (2x 4-lane, 2.5 Gbps/lane) with PHY (1 mux with DSI) with up to 8 virtual channels; up to 500MPixel/s throughput to scale from 1x 4K30P to 4x 1080P30 cameras |
| IMAGE SIGNAL PROCESSOR | NXP ISP (12 MP at 45 fps, 8MP at 30 fps) with RGB-IR support (4x4 array pattern), YUV 420, YUV 422, YUV 444, RGB 888 |
| SECURITY | Digi TrustFence®: secure boot, filesystem encryption, tamper detection, secure JTAG, secure console, secure build environments, secure firmware updates; EdgeLock secure enclave: crypto, tamper detection, secure clock, secure boot, eFuse key storage, random number; Arm TrustZone (Cortex-A and Cortex-M) i.MX Safety Concept targeting ISO-26262 (ASIL-B) / IEC 61508 (SIL-2) NXP Safety Manager & NXP SafeAssure® Software Framework [Arm Cortex-M33] H/W Safety Checkers & Safe 2D display pipeline PQC Dilithium 3.1 signature verification (secure boot & debug) |
| PERIPHERALS / INTERFACES | 2x PCIe Gen 3.0 (1-lane) 1x USB 3.0 5Gbps Type C with PHY 1x USB 2.0 OTG with PHY 3x SD 3.0 / SDIO3.0 / eMMC5.1 8x Low Power Universal Asynchronous Receiver / Transmitter (LPUART) modules 8x Low Power I2C modules, 2x I3C 8x Low Power SPI (LPSPI) modules, XSPI responder 5x FlexCAN with flexible data-rate (FD) support 6x Timer/Pulse-Width Modulator (PWM) with 16-bit counter 1x 12-bit ADC module with accurate internal voltage reference, up to 8 channels 2x 32-pin FlexIO interfaces (bus or serial I/O) Up to 112 GPIOs |
| AUDIO | 17-lane I2S TDM (32-bit at 768 KHz) 8-channel PDM microphone input, Medium Quality Sound (MQS) output 1x S/PDIF input and output |
| ETHERNET | 1x 10 GbE + 2x Gb Ethernet (All w/TSN); AVB & IEEE 1588 for sync; and EEE |
| WI-FI | Wi-Fi 6E 802.11ax tri-band, 80 MHz channel bandwidth, high throughput, 1x1 wireless |
| BLUETOOTH | Bluetooth® 5.4 |
| OPERATING TEMPERATURE | Industrial-rated −40 °C to 85 °C (−40 °F to 185 °F) or 0 °C to 70 °C (32 °F to 158 °F), depending on use case and enclosure/system design |
| STORAGE TEMPERATURE | −50 °C to 125 °C (−58 °F to 257 °F) |
| RELATIVE HUMIDITY | 5% to 90% (non-condensing) |
| RADIO APPROVALS** | US, Canada, EU, Japan, Australia/New Zealand, Brazil, Mexico |
| EMISSIONS / IMMUNITY / SAFETY** | FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES- 003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety (IEC 62368-1); visit product certifications for latest updates |
| DESIGN VERIFICATION** | Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78 Vibration/shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT |
| MECHANICAL DIMENSIONS | 118 castellated vias, LGA-474, 1.27 mm pitch 40 mm x 45 mm x 3.5 mm (1.6 in x 1.8 in x 0.1 in) |
| PRODUCT WARRANTY | 3-year |
**Visit product certifications for latest updates.

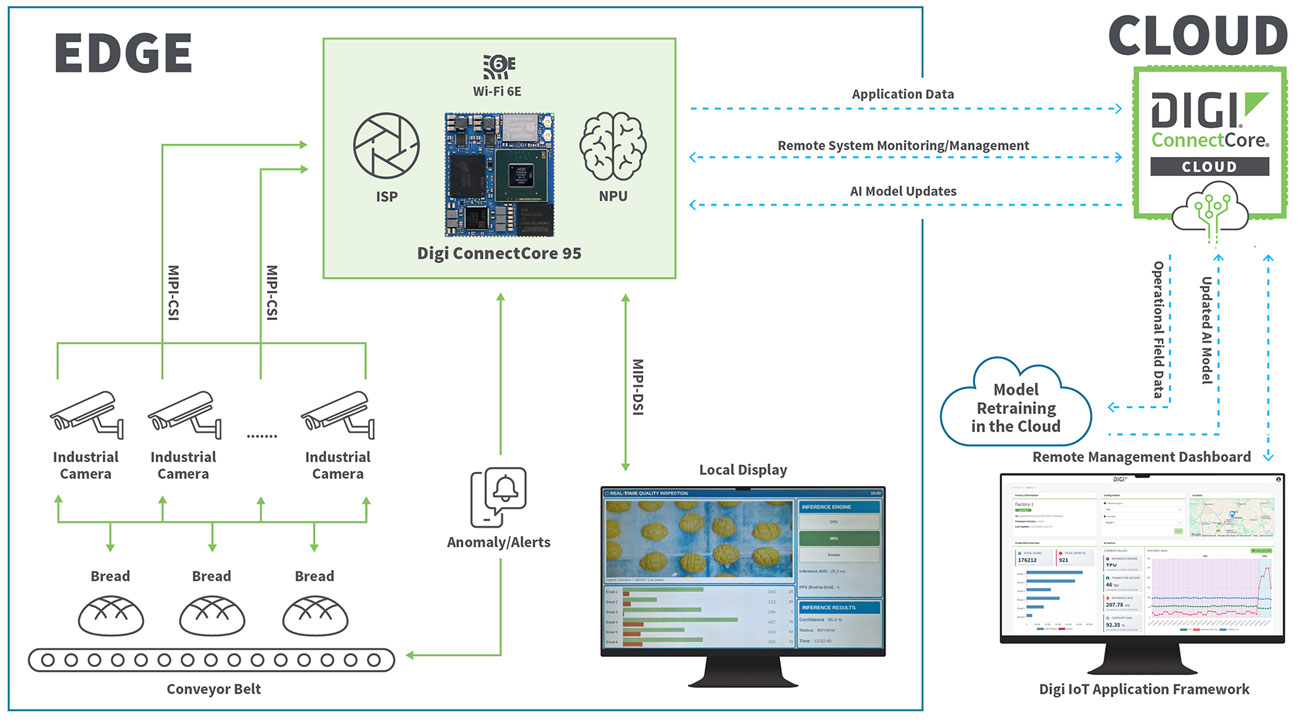

Digi ConnectCore 95 Edge AI Application Diagram
Digi ConnectCore 95, based on the NXP i.MX 95 application processor, is a high-performance wireless system-on-module (SOM) platform and complete solution with integrated cloud, security and AI/ML services to simplify the development of intelligent connected devices.
With built-in connectivity and remote management including over-the-air (OTA) software updates, it reduces complexity, accelerates time-to-market, and ensures long-term compliant operations and scalability. By embedding hardware, cloud services, security services and lifecycle management in a single platform, it helps organizations innovate faster, strengthen product resilience, and future-proof their solutions in evolving markets.
ConnectCore 95 empowers businesses to deliver smarter medical devices, secure industrial systems, and advanced retail solutions. The globally certified Wi-Fi 6E tri-band connectivity (2.4/5/6 GHz) with 80 MHz channel bandwidth provides high throughput for higher-end use cases and reduces congestion/interference issues from existing networks and older devices. The Digi ConnectCore 95 SOM is designed for reliability across a wide range of applications with up to six power-efficient Arm® Cortex®-A55 cores for performance, plus Cortex-M33, Cortex-M7, NPU and NXP PMICs for maximum power efficiency.
The Digi SMTplus surface-mount module is optimized for the i.MX 95 processor and delivers maximum design flexibility and robustness for portable and demanding industrial applications. Digi ConnectCore 95 is also available in a SMARC® form factor with a standardized, connector-based solution for easy integration, replacement and maintenance.
Digi ConnectCore SOM solutions provide built-in security with Digi TrustFence, a fully integrated device-security framework simplifying the process of securing connected devices. Essential Digi ConnectCore Cloud Services, Digi ConnectCore Security Services and Expert Support provide additional capabilities for development, deployment and maintenance with long-term lifecycle support.
Digi Embedded Yocto®, Digi’s feature-rich Linux distribution with many extensions for embedded product design provides a fully tested, validated and maintained Linux software platform. This helps OEMs lower research and development costs, realize a lower total cost of ownership and streamline time to market.
Ordering Information
| Description | Part Number |
|---|---|
| Digi ConnectCore 95 Development Kit | |
| Digi ConnectCore MP133 Secure Ethernet System-On-Module | CC-WMX95-KIT |
| Digi ConnectCore 95 SMT SOM Solution | |
| Digi ConnectCore 95 SMT System-On-Module Solution — i.MX 959, hexa A55, wireless, SMTplus® | CC-WMX-B30F-B1 |
| Digi ConnectCore 95 SMT System-On-Module Solution — i.MX 959, hexa A55, SMTplus® | CC-MX-B30F-B1 |
| Digi ConnectCore 95 SMT System-On-Module Solution — i.MX 952, dual A55, wireless, SMTplus® | CC-WMX-B88D-B1 |
| Digi ConnectCore 95 SMT System-On-Module Solution — i.MX 952, dual A55, SMTplus® | CC-MX-B88D-B1 |
| Digi ConnectCore 95 SMARC SOM Solution | |
| Digi ConnectCore 95 SMARC® System-On-Module Solution — i.MX 959, hexa A55, wireless, SMARC | CC-WMX-B30F-BS |
| Digi ConnectCore 95 SMARC® System-On-Module Solution — i.MX 952, dual A55, SMARC | CC-MX-B88D-BS |
