Digi Connect EZ TS
Click-to-connect | Modern, secure serial connectivity that boots in seconds, configures in minutes and runs for years
- RS-232/422/485 software-selectable ports to connect a wide variety of serial equipment over IP networks
- Efficient transition upgrade for ConnectPort TS and PortServer TS — same mechanical footprint,
- RJ-45 serial pinout and RealPort workflows
- Excellent solution for applications requiring COM ports, serial tunneling or TCP/UDP sockets
- Optimizes performance for the widest range of industry standard and device-specific protocols
- Built-in Digi TrustFence for device security, secure boot, secure encrypted connections, ongoing monitoring and support
- Easy setup and mass configuration with Digi Navigator and Digi On-Prem Manager or Digi Remote Manager
- Digi LifeCycle Assurance included — one year of 24×7 expert support and customer choice of device management platform — Digi Remote Manager in the cloud or Digi On-Prem Manager hosted locally and air-gapped
| Model | Digi Connect EZ | Digi Connect EZ 4 TS | Digi Connect EZ 8 TS |
|---|---|---|---|
| CONNECTORS | |||
| ETHERNET | 10/100/1000 Ethernet | 1 | 1 |
| SERIAL PORTS (RJ45 10-PIN) | RS-232 DTE/RS-422/RS-485 capable, software selectable | 4 | 8 |
| RS-232 / EIA-232 SERIAL MODES | Signal support TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI flow control options: XON/OFF, CTS/RTS, RTS-toggle | ✓ | ✓ |
| RS-422 / EIA-422 SERIAL MODES | TX+/-, RX+/-, software termination | ✓ | ✓ |
| RS-485 / EIA-485 SERIAL MODES | TX+/-, RX+/-, software termination | ✓ | ✓ |
| CONSOLE | RS-232 console serial port | ✓ | ✓ |
| PHYSICAL | |||
| DIMENSIONS (L x W x H) | 132.08 x 83.82 x 22.86 mm (5.2 x 3.3 x 0.9 in) | 195.5 x 105.5 x 33 mm (7.7 x 4.13 x 1.3 in) | |
| PACKAGE DIMENSIONS | 210.82 x 182.88 x 63.5 mm (8.3 x 7.2 x 2.5 in) | 241.3 x 190.5 x 88.9 mm (9.5 x 7.5 x 3.5 in) | |
| WEIGHT | 0.75 kg (1.65 lb) | 1.48 kg (3.25 lb) | |
| STATUS LEDs | System: Power; Per port: Ethernet, Serial, Console | ✓ | ✓ |
| POWER REQUIREMENTS | |||
| POWER INPUT | 9 - 30 VDC at 0.8 A max | ✓ | ✓ |
| POWER SUPPLY | Standard temp, universal plugs (US, EU, UK, AU), 12 VDC output, 2.1 mm non-locking barrel plug | Power supply — 12 V, 100-240 VAC, IEC 320-C14 input plug, locking barrel (76000734) | |
| ENVIRONMENTAL | |||
| OPERATING TEMPERATURE | Standard operating temperature: 0 °C to 40 °C (32 °F to 104 °F) | ||
| STORAGE TEMPERATURE | Standard storage temperature: 0 °C to 60 °C (32 °F to 140 °F) | ||
| RELATIVE HUMIDITY | 5% to 95% (non-condensing) | ||
| APPROVALS** | |||
| SAFETY | IEC 62368-1, CB, UL 62368-1 | ✓ | |
| EMISSIONS / IMMUNITY | CE, FCC Part 15 Class A, ICES-003, AS/NZS CISPR 22, EN 55035, EN 55032 | ✓ | |
| WARRANTY | |||
| PRODUCT WARRANTY | 5-year for base Connect EZ TS device | ||
| LIFECYCLE ASSURANCE | 1-year LifeCycle Assurance includes: 24×7 expert support and centralized device management via Digi Remote Manager (cloud) or Digi On-Prem Manager (local) | ||
| SOFTWARE AND MANAGEMENT | |||
| REMOTE MANAGEMENT | Digi Remote Manager, SNMP v3 (user installed, managed) | ||
| LOCAL MANAGEMENT | Digi On-Prem Manager and Digi Navigator discovery and configuration tool, Web UI (HTTP/HTTPS), CLI (SSH) | ||
| MANAGEMENT / TROUBLESHOOTING TOOLS | Digi Navigator discovery and configuration tool, FTP client, SCP, protocol analyzer with PCAP for Wireshark, event logging with syslog and SMTP client, NTP/SNTP, Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute | ||
| MEMORY | 256 MB RAM, 4 GB Flash | ||
| AUTHENTICATION | TACACS+, LDAP, Enterprise RADIUS | ||
Digi Connect EZ TS: Slim serial servers for reliable workflows

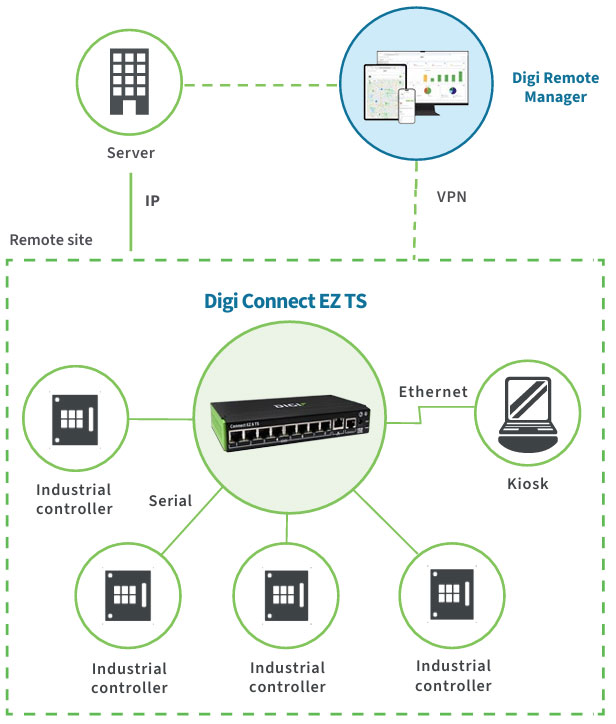

Most companies are not replacing their equipment — they are updating the way they talk to it. Digi Connect EZ TS modernizes operational infrastructure with expanded network connectivity and functionality for today’s applications. It is designed to meet the demands of a wide range of critical serial applications including connecting to automation, robotics control, centralized device management, data acquisition and point-of-sale equipment.
Digi Connect EZ TS is available in 4-port and 8-port configurations with software-selectable RS-232/422/485 communication. Designed as efficient transition upgrades for legacy ConnectPort TS and PortServer TS devices, Connect EZ TS devices preserve the same mechanical footprint and familiar workflows while delivering the power of Digi’s modern Connect EZ platform. Connect EZ TS devices take only a few minutes to configure with intelligent, use case-based options that you can quickly install without having to modify your equipment or applications.
Digi simplifies key security requirements for critical infrastructure and distributed systems with enhanced access control, management and configuration capabilities. Digi Connect EZ TS with built-in Digi TrustFence gives your security and operations teams peace of mind against evolving security threats with secure boot and encrypted connections, centralized authentication, VPN support and scalable security updates.
Ordering Information
| Model Name | Part Number | Description |
|---|---|---|
| Digi Connect EZ 4 TS Concept Kit | EZ04-TS00-CKIT | 4-port RS-232/422/485 software-selectable serial device server with global power supply, Ethernet cable, and complete serial adapter cabling set |
| Digi Connect EZ 4 TS | EZ04-TS00-GLB | 4-port RS-232/422/485 software-selectable serial device server |
| Digi Connect EZ 8 TS | EZ08-TS00-GLB | 8-port RS-232/422/485 software-selectable serial device server |
