Cost-effective RS-485 Remote I/O Module: ADAM-4000

Anewtech-ADAM-4000-rs-485-io-module-Advantech

AD-ADAM-4000 series modules are compact, sensor-to-computer interface units designed for reliable operation in harsh environments. Built-in microprocessors independently provide intelligent signal conditioning, analog I/O, digital I/O, data display, and RS-485 communication through Modbus protocols. With RFID and USB technology, users have additional options for configuration and inspection, even when unpowered.

AD-ADAM-4100 series modules are robust data acquisition and control units supporting wider operating temperature, higher noise immunity  and wide power input.

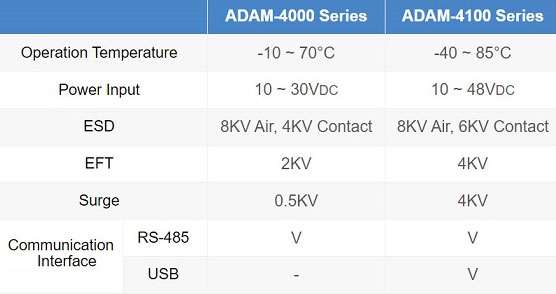

Anewtech-Systems-Remote-IO-Module-RS-485-AD-ADAM-4100.

RS-485 Serial I/O:
ADAM-4000/4100 Series

The ADAM-4000/ 4100 series featuring rugged industrial-grade cases are specially designed for reliable operation in harsh environments.
Built-in microprocessors independently provide intelligent signal conditioning, analog I/O, digital I/O, data display, and RS-485 communication through Modbus RTU protocols.
Anewtech-ADAM-4000-rs-485-io-module-Protocol-Advantech-ADAM-IO-Module
The Most Used Modbus RTU Protocol for Industrial Automation Development
  • Standardized Protocol
    One of the most widely used standard communication protocols for eAutomation development
  • Centralized Control
    Universal remote I/O modules to operate the system via Modbus
    Provides the sample code and command for users to program
  • Easy Integration
Anewtech-ADAM-4000-rs-485-io-module-Protocol-Advantech-ADAM-IO-Module
Non-Stop Monitoring with Watchdog Timer and Protection
  • Noise Protection
    Data accuracy assured by enhanced ESD/ EFT/ Surge Protection
  • Module Stability Ensured
    Once a problem is detected, the Watchdog Timer automatically recovers the system
  • Save on Maintenance Costs
    The Watchdog Timer enhances system stability and reduces maintenance costs
Anewtech-ADAM-4000-rs-485-io-module-interfaces-Advantech-ADAM-IO-Module
Multiple Interfaces Integrated with Embedded or PLC Systems via USB or RS-485
  • Friendly L-Shaped Cable Design*
    Users can optionally order the 90 degree micro USB to a Type-A USB cable with a locking mechanism to provide a stable connection
  • Micro USB Interface*
    The new ADAM-4100 series can be powered and transmit data via micro USB interface
  • * Only featured on the B version of ADAM-4100 series selected models


RS-485 I/O Modules

ADAM-4000/4100 Series

Cost-effective remote RS-485 data acquisition modules offer analog, RTD, thermocouple, digital, relay and counter I/O with Modbus RTU protocol.



Analog I/O Modules

Remote RS-485 I/O modules using Modbus RTU protocol offer complete analog I/O for current, voltage, thermocouple or RTD.



Digital I/O Modules

Remote RS-485 data acquisition modules offer digital, counter or relay I/O with Modbus RTU for industrial facility monitoring and management.

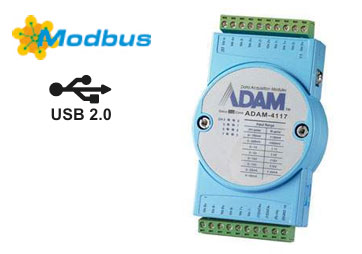

Anewtech-Systems-Remote-IO-Module-RS-485-AD-ADAM-4117.

ADAM-4100 Series

  • Supports Modbus protocol and ASCII command
  • Micro USB for power and data transmission
  • Wide operating temperature range (-40 ~ 85 °C)
  • High protection level: 4-kV surge, 4-kV EFT, 8-kV ESD
  • High common mode voltage: 200 VDC
  • Power input:10~48VDC
  • ADAM-4115: 6RTD
  • ADAM-4117: 8AI
  • ADAM-4118: 8TC
  • ADAM-4150: 7DI/ 8DO
  • ADAM-4168: 8Relay

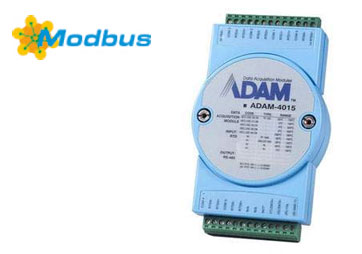

Anewtech-Systems-Remote-IO-Module-RS-485-AD-ADAM-4015

ADAM-4000 Series
