B-BIAST-PAT

SBC 3.5 suppors Intel® Amston Lake/ Alder Lake-N processor
Anewtech-Systems-Single-Board-Computer-B-BIAST-PAT
  • Intel® Amston Lake x7433RE (support wide range Temperature) / Alder Lake N N97 / Twin Lake series Processor
  • Supports triple display : LVDS(eDP)/ HDMI®/ DP++
  • Support 1 x DDR5-4800 MHz SO-DIMM, up to 16GB
  • Support M.2 Hailo-8™ AI Accelerator, up to 26 TOPS (option)
  • 2 x Intel i226 2.5G LAN
  • 2 x USB3.2 Gen1, 4 x USB2.0
  • 2 x RS232/422/485, 2 x RS232
  • 1 x M.2 B key 3042/3052 support USB3.2+PCIe3.0 x1 w/ SIM slot for 4G/5G module
  • 1 x M.2 M key M 2242/2280 support PCIe3.0 x1/SATA for NVMe/ SATA storage
  • 1 x Mini PCIe support PCIe3.0 x1 +USB2.0 for WIFI/BT module
  • Support wide range temperature -40 ~ 85 degree
  • DC-IN 9~24V
Product Specification
Anewtech-Systems-Single-Board-Computer-B-BIAST-PAT-Biostar
CPU SUPPORTIntel® Alder Lake-N/ Amston Lake/ Twin Lake series Processor
x7433RE (wide range temperrature support)
N97
MEMORY1 x 262-pin DDR5-4800Mhz SO-DIMM, up to 16GB
EXPANSION SLOT1 x M.2 B key 3042/3052 support PCIe3.0 x1 + USB3.2 w/ SIM slot for 4G/5G module
1 x M.2 M Key 2242/ 2280 support PCIe3.0 x1/ SATA for NVMe /SATA storage
1 x Mini PCIe support PCIe3.0 x1 +USB2.0 for WIFI/BT module
GRAPHICSIntel® Integrated Graphics, support triple display
1 x HDMI® 2.0 connector (4096x2160@60Hz)
1 x DP++1.4 connector (4096x2160 @60Hz)
1 x LVDS/eDP (1920x1200 @60Hz, LVDS/eDP switch mode by BIOS)
AUDIOAudio Codec: ALC897 + ALC105, support 4 ohm 2W amplifier ( not support wide temperature)
LANDual 2.5GbE
2 x Intel i226-V
2 x Intel i226-IT opt for wide range temperature
SUPER I/O CHIPIT8786E-I

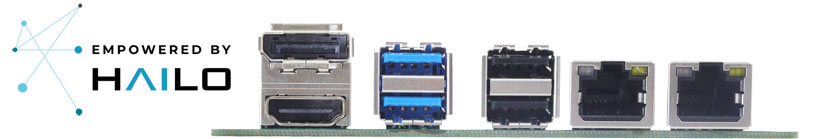

REAR I/O1 x HDMI® connector
1 x DP connector
2 x USB2.0 Type A connector
2 x USB3.2 Gen1 Type A connector
2 x RJ45 connectors, support 2.5G
INTERNAL I/OExpansion slots:
1 x M.2 M key
1 x M.2 B key w/ SIM Slot
1 x Mini PCIe
SATA:
1 x SATA3 7pin connector
1 x 1*4 pin SATA power header
Display:
1 x 2*15 pin LVDS/eDP box header (share with the same connector, LVDS/eDP switch mode by BIOS)
1 x 1*6 pin LCD backlight control box header
1 x 1*3 pin LCD power select header (3.3V/5V, default is 3.3V)
1 x 1*3 pin LCD backlight control power select header (5V/12V, default is 12V)
Audio: ( not support wide range temperature)
1 x 2*5 pin box header for MIC-in, LINE-in, LINE-out
1 x 1*4 pin box header for 4 ohm 2W amplifier speaker
USB:
1 x 2*5 pin header, support 2 x USB2.0
Power:
1 x 1*2 pin phoenix connector , support DC-IN 9~24V
1 x 1*4 pin box header, support DC-IN 9~24V
Serial Port:
2 x 2*5 pin RS232/422/485 box header (COM1/COM2)
2 x 2*5 pin RS232 box header (COM3/COM4)
2 x 1*3 pin COM1/COM2 power select header (NC/5V/12V, default is NC)
Others:
1 x Buzzer ( not support wide range temperature)
1 x 2*5 8-bit DIO pin header
1 x 1*4 pin CPU Fan header
1 x 1*3 pin clear CMOS header
1 x 1*3 pin DIO power select header (3.3V/5V, default is 5V)
1 x 1*3 pin USB3_1 power select header( 5V/5VS, default is 5VS)
1 x 2*5 front panel box header
2 x Power LED onboard for APCI power status
1 x 1*3 AT/ATX mode switch pin header (default is ATX)
DIMENSION148 x 102 x 1.6 mm
ENVIRONMENT0ºC ~ 60ºC Humidity : 5% ~ 90%
Wide range temperature: -40ºC ~ 85ºC Humidity : 5% ~ 90% (opt)
OS SUPPORTSupport Windows 10 IoT Enterprise 21H2/ 11 IoT Enterprise 24H2 or later version
Support Ubuntu 22.04
