B-BIMTL-PAT

SBC 3.5" supports Intel® Meteror Lake Lake-U Processor Series
Anewtech-Systems-Single-Board-Computer-B-BIMTL-PAT
  • Intel® Meteror Lake Lake-U Processor Series
  • Supports quad display : LVDS/ eDP, HDMI®x4
  • Support 2 x DDR5-5600 MHz SO-DIMM, up to 96GB
  • 2 x Intel i226 2.5G LAN
  • 2 x USB3.2 Gen2, 4 x USB2.0
  • 3 x RS232/422/485
  • 1 x M.2 M key 2242/2260/2280 support PCIe4.0 x4 for NVMe storage
  • 1 x M.2 E key 2230 support PCIe3.0 x1 +USB2.0 for WIFI/BT module
  • DC-IN 9~24V
Product Specification
Anewtech-Systems-Single-Board-Computer-B-BIMTL-PAT-Biostar
CPU SUPPORTIntel® Meteor Lake-U Processor
Intel Core Ultra 5 125U/ Core Ultra 7 155U
MEMORY2 x 262-pin DDR5-5600Mhz SO-DIMM, up to 96GB
EXPANSION SLOT1 x M.2 M Key 2242/2260/2280 support PCIe4.0 x4 for NVMe storage
1 x M.2 E Key 2230 support PCIe3.0 x1 + USB2.0, support WIFI/BT module
GRAPHICSIntel® Integrated Graphics, support quad display
4 x HDMI® 2.1 connector (4096x2160@60Hz)
1 x LVDS/eDP (1920 x 1200 @60Hz, LVDS/eDP switch mode by BIOS)
AUDIOAudio Codec: ALC897 + ALC105, support 4 ohm 2W amplifier
LANDual 2.5GbE
1 x Intel i226-V + 1x Intle i226-LM
Support vPro
SUPER I/O CHIPIT8786E-I

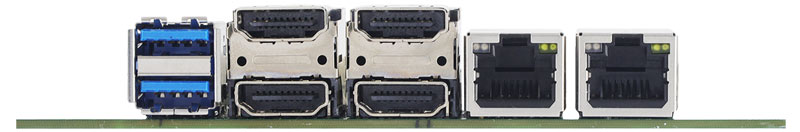

REAR I/O4 x HDMI® connector
2 x USB3.2 Type A connector
2 x RJ45 connectors, support 2.5G
INTERNAL I/OExpansion slots:
1 x M.2 M key
1 x M.2 E key
SATA:
1 x SATA3 7pin connector
1 x 1*4 pin SATA power header
Display:
1 x 2x20 pin LVDS/eDP box header (share with the same connector, LVDS/eDP switch mode by BIOS)
1 x 1*8 pin LCD backlight control box header (12V/ 5V)
1 x 2*3 pin LCD power voltage select header(3.3V/5V/12V, default is 3.3V)
Audio:
1 x 2*5 pin header for MIC-in, LINE-in, LINE-out
1 x 1*4 pin box header for 4 ohm 2W amplifier speaker
USB:
2 x 2*5 pin header, support 4 x USB2.0
Power:
1 x 1*2 pin phoenix connector , support DC-IN 9~24V
Serial Port:
3 x 2*5 pin RS232/422/485 box header (COM1-COM3)
3 x 1*3 pin COM power select header (5V/12V, default is 5V)
Others:
1 x buzzer
1 x 2*5 pin 8-bit DIO header
1 x 1*4 pin CPU Fan header
1 x 1*3 pin clear CMOS
1 x 1*3 pin DIO power select header (5V/12V, default is 5V)
1 x 2*7 pin front panel header
1 x Power LED onboard for APCI power status
1 x 1*3 pin AT/ATX mode select header (default is ATX)
TPM2.0 onboard
ENVIRONMENT0ºC ~ 60ºC Humidity : 5% ~ 90%
OS SUPPORTSupport Windows 10 IoT Enterprise 21H2/ 11 IoT Enterprise 24H2 or later version
Support Ubuntu 24.04
