B-BIRPL-PAT

SBC 3.5 supports Intel® Raptor Lake P/ Alder Lake P Processor
Anewtech-Systems-Single-Board-Computer-B-BIRPL-PAT
  • Intel® Raptor Lake P/ Alder Lake P i5-1345URE/ i5-1335U/ i5-1235U
  • Supports quad display : LVDS/ eDP, HDMI®, DP++, 2xUSB-C
  • Support 2 x DDR5-5200 MHz SO-DIMM, up to 96GB
  • Support M.2 Hailo-8™ AI Accelerator, up to 26 TOPS (optional)
  • 2 x Intel i226 2.5G LAN
  • 4 x USB3.2 Gen2x2, 2 x USB2.0
  • 3 x RS232/422/485, 1 x RS232
  • 1x M.2 B key 3042/3052 support PCIe3.0 x1 + USB3.2 w/ SIM slot for 4G/5G module
  • 1x M.2 M key 2242/2260/2280 support PCIe4.0 x4 for NVMe storage
  • 1x M.2 E key 2230 support PCIe3.0 x1 +USB2.0 for WIFI/BT module
  • Support wide range temperature -40 ~ 85 degree C
  • DC-IN 9~24V
Product Specification
Anewtech-Systems-Single-Board-Computer-B-BIRPL-PAT-Biostar
CPU SUPPORTIntel® Raptor Lake P/ Alder Lake P Processor
i5-1235U/ i5-1335U
i5-1345URE ( wide range temperature support)
MEMORY2 x 262-pin socket support DDR5-5200Mhz SO-DIMM, up to 96GB
EXPANSION SLOT1 x M.2 B key 3042/3052 support PCIe3.0 x1 + USB3.2 w/ SIM slot for 4G/5G module
1 x M.2 M Key 2242/2260/2280 support PCIe4.0 x4 for NVMe storage
1 x M.2 E Key 2230 support PCIe3.0 x1 + USB2.0, support WIFI/BT module
GRAPHICSIntel® Integrated Graphics, support quad display
1 x HDMI® 2.0 connector (4096x2160@60Hz)
1 x DP++1.4 connector (4096x2160 @60Hz)
2 x USB-C connector (4096x2160 @60Hz , not support wide range temperature)
1 x LVDS/eDP (1920 x 1200@60Hz, share with the same connector, LVDS/eDP switch mode by BIOS)
AUDIOAudio Codec: ALC897 w/ ALC105, support 4 ohm 2W amplifier ( not support wide range temperature)
LANDual 2.5GbE
1 x Intel i226-V + 1 x Intel i226-LM
2 x Intel i226-IT opt for wide range temperature
SUPER I/O CHIPITE IT8786

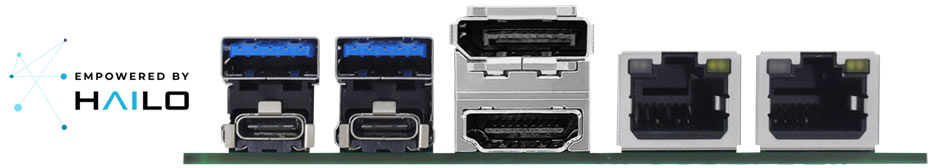

REAR I/O1 x HDMI® connector
1 x DP connector
2 x USB-C combo with USB3.2 Gen2 Type A connector
2 x RJ45 connectors, support 2.5G
INTERNAL I/OExpansion slots:
1 x M.2 M key 2242/2260/2280
1 x M.2 B key B 3042/3052 w/SIM Slot
1 x M.2 E key E 2230
SATA:
1 x SATA3 7pin connector
1 x 1*4 pin SATA power box header
Display:
1 x 2*20 pin LVDS/eDP box header (share with the same connector, LVDS/eDP switch mode by BIOS )
1 x 1*8 pin LCD backlight control box header (12V/ 5V)
1 x 2*3 pin LCD power select header (3.3V/5V/12V, default is 3.3V)
Audio: ( not support wide temperature)
1 x 2*5 pin header for MIC-in, LINE-in, LINE-out
1 x 1*4 pin box header for 4 ohm 2W amplifier speaker
USB:
1 x 2*5 pin header, support 2 x USB2.0
Power:
1 x 1*2 pin phoenix connector , support DC-IN 9~24V
Serial Port:
3 x 2*5 pin RS232/422/485 box header(COM1-COM3)
1 x 2*5 pin RS232 box header (COM4)
4 x 1*3 pin COM power select header(NC/5V/12V, default is NC)
Others:
1 x buzzer ( not support wide temperature)
1 x 2*5 pin 8-bit DIO header
1 x 1*4 pin CPU Fan header
1 x 1*3 pin clear CMOS
1 x 1*3 pin DIO power select header(12V/5V, default is 5V)
1 x 2*7 pin front panel header
1 x Power LED onboard for APCI power status
1 x 1*3 pin AT/ATX mode select header (default is ATX)
TPM2.0 onboard
DIMENSION148 x 102 x 1.6 mm
ENVIRONMENT0ºC ~ 60ºC Humidity : 5% ~ 90%
Wide range temperature: -40ºC ~ 85ºC Humidity : 5% ~ 90% (opt)
OS SUPPORTSupport Windows 10 IoT Enterprise 21H2/ 11 IoT Enterprise 24H2 or later version
Support Ubuntu 22.04
