ID-EGPL-T102
Module Type: M.2 2280 to single 10GbE LAN Module, Function: LAN
- Marvell AQtion Ethernet Controller
- Support 10G/5G/2.5G/1000M/100M/10M LAN speed
- Lowest power and smallest 10GbE expansion solution
- Support x2/x1 PCI Express with Gen3/Gen2
- Tiny daughter board with high speed shielding cable
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Operation temperature 0°C to +55°C support
Datasheet
Product Specification
THE SMALLEST 10GBE M.2 LAN MODULE
EGPL-T102 condenses 10 GbE networking into an M.2 module, delivering speeds 10 times faster than Gigabit Ethernet while maintaining low power consumption and seamless integration with your existing network.
| Model Name | EGPL-T102 |
| Module Type | M.2 2280 to Single 10GbE LAN Module |
| Form Factor | M.2 2280 B+M Key |
| Function | LAN |
| Input I/F | PCI Express 3.0 x2 |
| Output I/F | 10GbE LAN |
| Output Port | 1 |
| Output Connector | RJ45 |
| Max. Power Consumption | 3.524W (3.3V, 1068mA) |
| Dimension (W x L x H/mm) | M.2 Board : 22 x 80 x 14.5 Daughter Board : 31.75 x 28 x 17.7 |
| Temperature | Operation : -20°C ~ 60°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | 50G@0.5ms |
| OS Support | Windows : 10 (64bit) and later releases Linux : Kernel 3.10 and later releases |
In today's data-driven world, organizations require high-speed, reliable network solutions to meet ever-growing bandwidth demands. Introducing the EGPL-T102 M.2 2280 10GbE LAN module - the industry's first M.2 10GbE expansion solution, engineered to transform your network infrastructure.
TINY, SPEEDY, EASY INTEGRATION
- 10x Speed Performance
10x current GbE speeds for faster, lower-latency data transmission - Excellent Compatibility
Supports 10/5/2.5/1Gbps and 100/10Mbps for excellent backward compatibility - Easy and Flexible Integration
RJ45 LAN port for 10GbE on existing Cat6/6A copper cables - Low Power Consumption
Increased efficiency through reduced power consumption, without sacrificing performance
Ordering Information
| P/N | Description |
| EGPL-T102-C1 | M.2 2280 to Single 10GbE LAN Module |
| EGPL-T102-C2 | M.2 2280 to Single 10GbE LAN Module, with PCIe Standard Bracket |
| EGPL-T102-C3 | M.2 2280 to Single 10GbE LAN Module, with Low-profile PCIe Bracket |

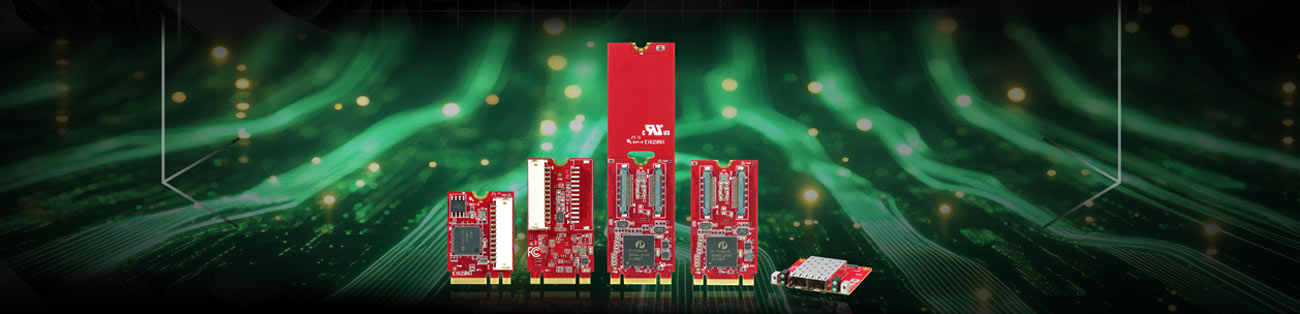

LAN Modules
REAL-TIME NETWORKING SOLUTIONS FOR EVERY SCENARIO
LAN series modules are available in multiple form factors, including M.2, mPCIe, and Low-Profile PCIe. Equipped with high-performance Intel Ethernet chips, they support speeds of 10/100/1000 Mbps, 2.5GbE, and 10GbE. making them ideal for various industrial and commercial applications.
Featuring a daughterboard-less design, isolation protection, and a wide operating temperature tolerance, these modules deliver stable performance and flexible integration,

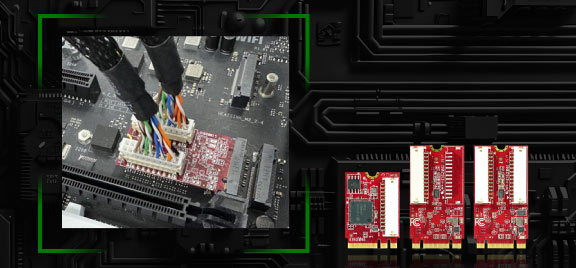

Versatile Form Factors, Flexible Cabling
Innodisk offers LAN modules in various sizes and interface options, including M.2 (2230 / 2242 / 2280), mPCIe, and Low-Profile PCIe, designed to meet diverse embedded connectivity needs.
The daughterboard-less design and customizable cabling help reduce cable routing complexity and mechanical interference, enhancing layout flexibility for space-constrained edge devices and automation systems with unique installation requirements.

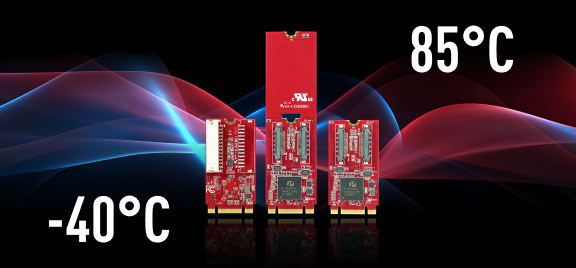

Isolation Protection & Wide-Temperature Support
Innodisk’s LAN modules feature isolation protection to prevent electrical interference and electrostatic discharge, ensuring reliable data transmission. Even in environments with frequent power switching, static buildup, or multiple devices operating, they deliver long-term performance and reduce system failure risk.
Supporting a wide operating temperature range of -40°C to 85°C, this series combines electrical isolation with thermal resilience for dependable use in harsh industrial environments.

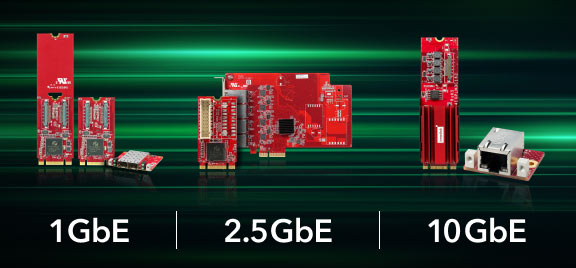

Multiple Speed Options
Innodisk’s LAN modules integrate high-performance Ethernet controllers, supporting 1GbE, 2.5GbE, and 10GbE speeds for fast and stable data transmission. From always-connected infrastructure and real-time video systems to high-throughput data transfer and edge computing, they deliver reliable performance across a wide range of diverse applications.
With broad compatibility and easy integration into embedded systems, servers, and industrial equipment, the series enables scalable, high-speed network architectures that enhance overall system efficiency.
