CT-RCO-1000

Compact fanless embedded system with Intel® Celeron® J1900, DVI-I, 2x COM
Anewtech-Systems-Embedded-PC-AI-Inference-System-CT-RCO-1000
  • Intel® Celeron® J1900, 2.0GHz
  • 1x 204-pin DDR3L SODIMM. max up to 8GB
  • Dual independent display supported by 1x DVI-I
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 1x mSATA, 2x SIM socket
  • 2x full-size mini PCIe for communication or expansion modules
  • 2x RS-232/422/485, 1x USB 3.0, 3x USB 2.0
  • 9 to 48VDC wide range power input supporting AT/ATX mode
  • -40°C to 70°C extended operating temperature
Product Specification
System
ProcessorIntel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz
System ChipsetSoC integrated
LAN ChipsetGbE1 & GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE)
Audio CodecRealtek ALC888S
System Memory1x 204-Pin DDR3L 1066/1333MHz SODIMM.
Max. up to 8GB
BIOSAMI 64Mbit SPI BIOS
WatchdogSoftware Programmable Supports 1~255 sec.
System Reset
Display
VGAYes (by optional split cable)
DVI1x DVI-I, support resolution 1920 x 1200
Multiple DisplayDual Display
Storage
mSATA1x mSATA (shared by 1x Mini PCIe)
SIM Socket2x External SIM socket
Expansion
Mini PCI Express2x Full-size Mini PCIe
Operating System
WindowsWindows 10, Windows 8.1, WES8.1, Windows 7, WES7
LinuxLinux kernel 3.X
I/O
COM2x RS-232/422/485
USB1x USB 3.0,  3x USB 2.0
LAN2x RJ45
Audio1x Mic-in,  1x Line-out
Others3x WiFi Antenna Holes
1x Power Switch,  1x AT/ATX Switch, 1x Remote Power On/Off
Power
Power ModeAT, ATX
Power Supply Voltage9~48VDC
Power Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 12V/5A, 60W
Power ProtectionOVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temp.-40°C to 70°C
Storage Temp.-40°C to 85°C
Relative Humidity10% to 95% (non-condensing)
VibrationWith SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
ShockWith SSD: 50G, half sine, 11ms
Standards / CertificationCE, FCC Class A
Physical
ConstructionExtruded Aluminum with Heavy Duty Metal
Dimension150 (W) x 105 (D) x 37 (H) mm
Weight0.69 kg
MountingWall Mounting
Side / VESA / DIN-Rail Mounting (Optional)

Based on Intel® Celeron® J1900 (2.0GHz) Quad Core processor, RCO-1000 series is a high variety and diversity fanless embedded system. It offers modularize expansion I/O, rich connectivity interfaces, wide range (9~48V) DC power input, and high reliability even operating in temperature extremes (-40°C~70°C).

Featuring with completely cable-less designed, high functional, one-piece housing design, and anti-vibration, RCO-1000 series are ruggedized systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reverse protection, and wide range DC power input makes RCO-1000 series are safety system for all industrial applications.

RCO SERIES: SUPER-RUGGED INDUSTRIAL COMPUTERS

The RCO Series is a line of super-rugged x86 industrial computers purpose-built to enable real-time performance in extreme deployments. By leveraging a fanless and cableless design approach with modular EDGEBoost technologies, these systems can provide seamless configurability to meet varying edge-native deployment requirements while maintaining utmost durability. Available in three series, the RCO-1000, RCO-3000, and RCO-6000 Series.

Anewtech-Systems-Rugged-Embedded-PC-AI-Inference-System-CT-RCO-1000

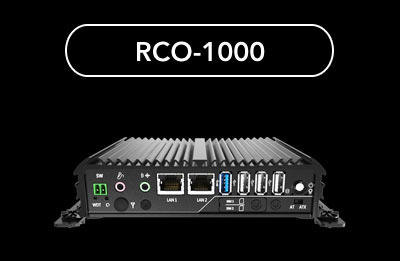

RCO-1000

Intel Atom® Processors

  • Up to 3x EDGEBoost I/O
  • Lite AI Performance
  • Up to 2x PoE and 2x LAN RJ45
  • Wide Operating Temperature -40°C up to 70°C
Anewtech-Systems-Embedded-PC-AI-Inference-System-CT-RCO-3000

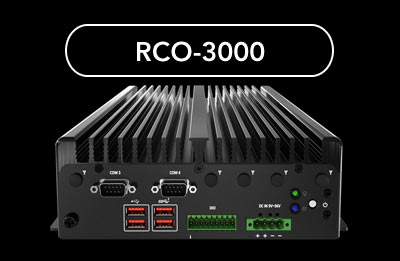

RCO-3000

Intel® Core Processors

  • 1x EDGEBoost I/O
  • Mid-AI Performance
  • Up to 4x PoE RJ45/M12
  • Wide Operating Temperature -25°C up to 70°C
  • EN50155 (EMC) Certified
Anewtech-Systems-Rugged-Embedded-PC-AI-Inference-System-CT-RCO-6000

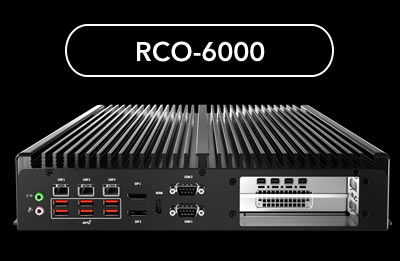

RCO-6000

Intel® Core Processors

  • 2x EDGEBoost I/O
  • High-AI Performance
  • Up to 8x PoE RJ45/M12
  • EDGEBoost Nodes Compatible for SSD, GPU and PCIe expansions
  • Wide Operating Temperature -25°C up to 70°C

Ordering Information

Part No.Description
RCO-1000-J1900Compact Fanless Embedded System with Intel® J1900 CPU, 1x DVI-I, 2x COM
