P-RCO-1000-ASL-10
Fanless Mini Computer with Intel® Atom® x7433RE/x7835RE Processors, 1x DP, 1x HDMI, 4x USB, 1x 2.5" SATA HDD Bay
- Support Intel® Atom® x7433RE/x7835RE Processors
- 1x 262-pin DDR5 SO-DIMM. Max. up to 32GB
- 2x 2.5GbE (Wake-on-LAN and PXE)
- 1x 2.5” SATA HDD Bay
- 1x M.2 (B Key, 2242 / 3042 / 3052) for storage
- 2x RS-232/422/485, 3x USB 3.2 Gen2, 1x USB 2.0
- 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -40°C to 70°C
- TPM 2.0 Supported
- With 1x Universal Expansion Slots
- UL Listed
RCO-1000-ASL Supported Processors: Intel® Atom® x7433RE and x7835RE (Embedded Series)
| Processor | Cores | Max TDP | CPU Burst (Turbo) Mode | GPU Name | Graphics Max Dynamic Frequency | GPU Execution Units |
|---|---|---|---|---|---|---|
| Intel® Atom® x7433RE | 4 | 9W | 3.4 GHz | Intel® UHD Graphic | 1.0 GHz | 32 |
| Intel® Atom® x7835RE | 8 | 12W | 3.6 GHz | Intel® UHD Graphic | 1.2 GHz | 32 |
| System | |
| Processor | Intel Atom® x7433RE Processor 6M Cache, up to 3.40 GHz 4 core 9W (Default) Intel Atom® x7835RE Processor 6M Cache, up to 3.60 GHz 8 core 12W |
| System Chipset | SoC integrated |
| LAN Chipset | 2.5 GbE1: Intel I226 (Support Wake-on-LAN and PXE) 2.5 GbE2: Intel I226 (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC888C |
| System Memory | 1x 262-Pin DDR5 4800/5600 MT/s SO-DIMM. Max. up to 32GB Non-ECC |
| Graphics | Intel® UHD Graphics |
| BIOS | AMI 256Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 1x DisplayPort (4096 x 2304@60Hz) |
| HDMI | 1x HDMI 1.4b (Resolution up to 3840x2160 @ 30 Hz) |
| Multiple Display | Dual Display |
| Storage | |
| M.2 | 1x M.2 B key-1 SATA/PCIE/USB 3.0 (2242/3042/3052) for Storage |
| SIM Socket | 2x External SIM socket |
| SSD/HDD | 1x Internal 2.5" SATA HDD Bay (support H=9.5 mm) |
| Expansion | |
| M.2 | 1x M.2 E key Type: 2230 (Support PCIe x1 + USB 2.0 signal for WiFi and Bluetooth) |
| Expansion Modules | Optional: • 2-port COM module with Super I/O Chipset • 4-Port USB module with USB hub • 1-Port DP 1.4 and DIO (4 in / 4 out, Isolated) • 1-Port HDMI 2.0 and DIO (4 in / 4 out, Isolated) |

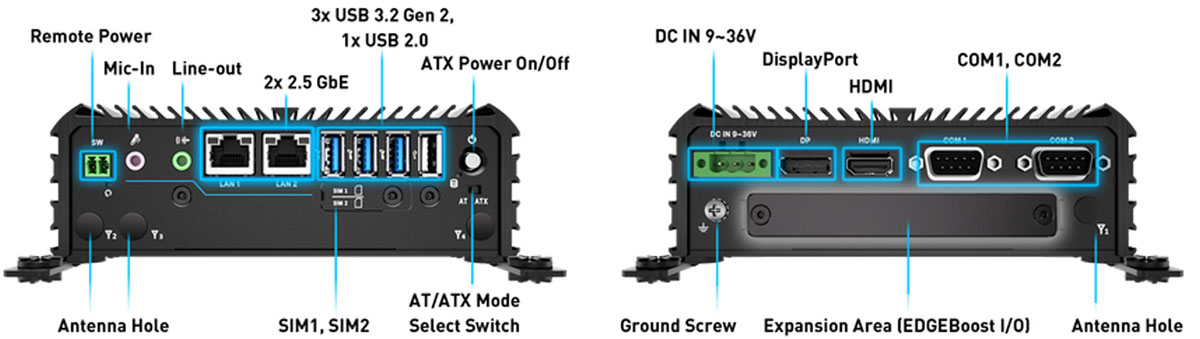

| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| CAN | 2x CAN 2.0 A/B 2-pin Internal header |
| COM | 2x RS-232/422/485 |
| EDGEBoost I/O Bracket | 1x EDGEBoost I/O Bracket (By mini PCIe interface, Proprietary Module) |
| LAN | 2x RJ45 (2.5 GbE) |
| USB | 3x USB 3.2 Gen 2 (10 Gbps) 1x USB 2.0 |
| Others | 6x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x Internal CMOS Battery Cable 1x 4-PIN FAN Connector 1x Ground Screw 1x HDD LED , 1x Reset |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux Ubuntu 22.04 |
| Power | |
| Power Adapter | Optional AC/DC 12V/5A, 60W |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Adjustable power ignition management can be achieved through BIOS and optional daughter board. |
| Power Supply Voltage | 9~36VDC |
| Power Connector | 3-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL, CE, FCC Class A |
| Vibration | With SSD: 5 Grms, 5 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 500 Hz, 0.5 hr/axis |
| Shock | With SSD: 50G, half sine, 11ms |
| Physical | |
| Dimensions | 150 (W) x 105 (D) x 49 (H) mm |
| Weights | 0.9 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting SIDE / VESA / DIN-Rail Mounting (Optional) |
Fanless Mini PC for Industrial Edge IoT

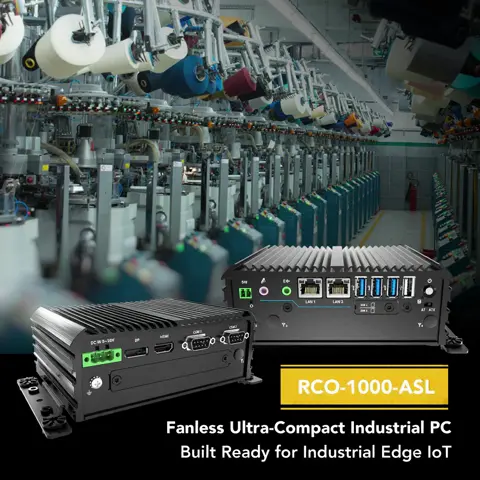

RCO-1000-ASL: Super-Rugged Fanless Mini Computer Powered by Intel® Atom® x7000RE
The RCO-1000-ASL Series is an industrial grade, fanless mini computer powered by Intel® Atom® x7433RE/x7835RE that deliver unmatched durability and edge computing performance, specifically for industrial IoT applications
Built Ready for Edge Performance
Powered by Intel® Atom® x7433RE and x7835RE processors (Amston Lake), the RCO-1000-ASL delivers efficient multi-core performance with 10-year lifecycle support.
| Processor | X7433RE | X7835RE |
| Cores | 4 | 8 |
| Max TDP | 9 W | 12 W |
| CPU Max Turbo Frequency | 3.4 GHz | 3.6 GHz |
| Graphics Max Dynamix Frequency | 1 GHz | 1.2 GHz |
| Power Profile | Ultra-Low Power | Performance-Optimized |
EDGEBoost I/O - Modular Daughterboards
One of the advantages of the RCO-1000-EHL Series is its customizable and scalable universal I/O brackets through Premio’s proprietary PCIe 3.0 pins design. The RCO-1000-EHL Series is scalable up to 3x Universal I/O Brackets.
- Faster Time-to-Market
- Flexibility & Scalability
- Modular I/O Configurations
- Quick Maintenance & Upgradability
1x DisplayPort and 1x DIO(4 in / 4 out, Isolated)
Support up to 1x EDGEBoost Bracket
1x HDMI Port and 1x DIO(4 in / 4 out, Isolated)
Support up to 1x EDGEBoost Bracket
4x USB Ports
Support up to 1x EDGEBoost Bracket
2x COM Ports
Support up to 2x EDGEBoost Bracket

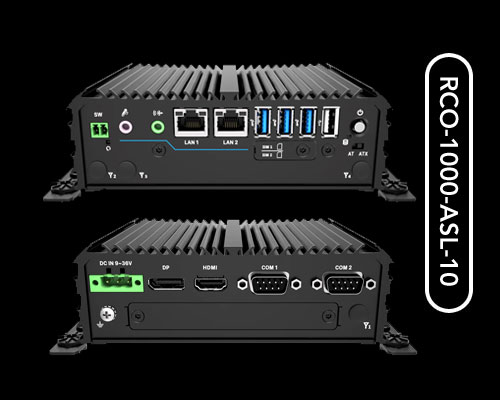

RCO-1000-ASL-10
- 150 (W) x 105 (D) x 49 (H) mm
- 1 Rear I/O Slot

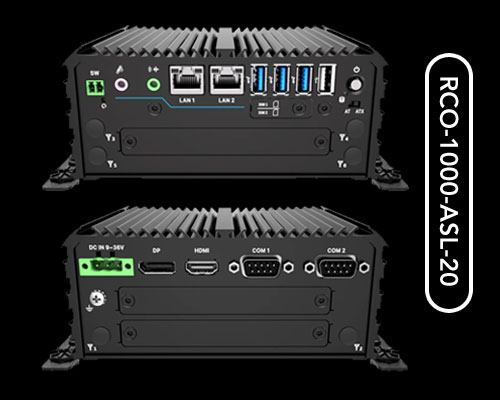

RCO-1000-ASL-20
- 150 (W) x 105 (D) x 65 (H) mm
- 2 Rear I/O Slot

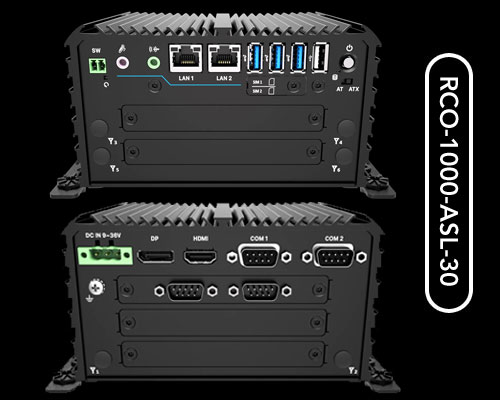

RCO-1000-ASL-30
- 150 (W) x 105 (D) x 83 (H) mm
- 3 Rear I/O Slot

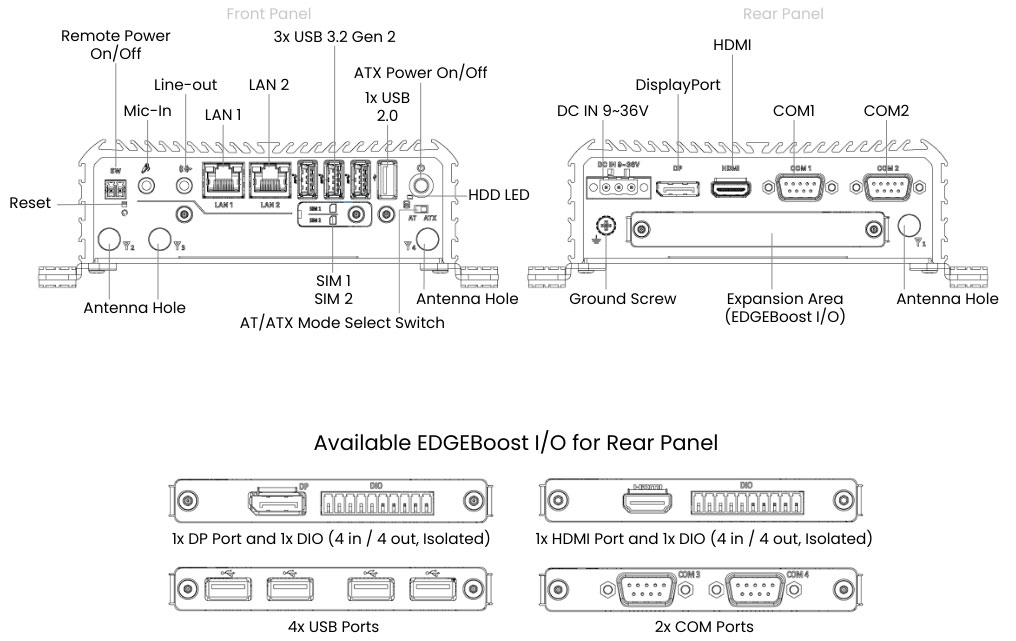

Mechanical Drawing

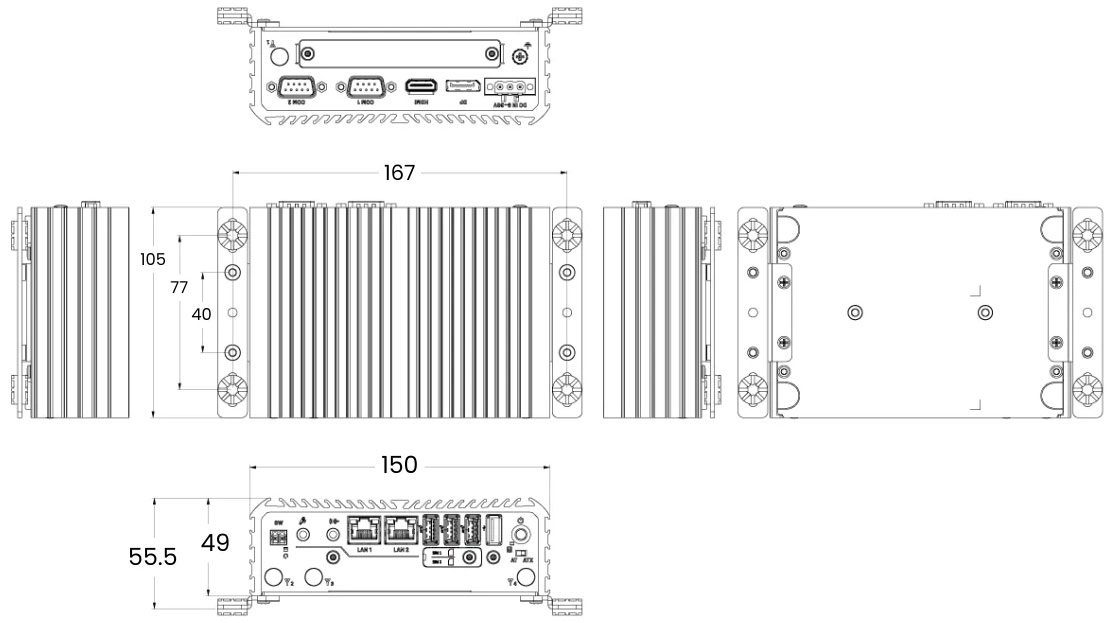

Dimension
