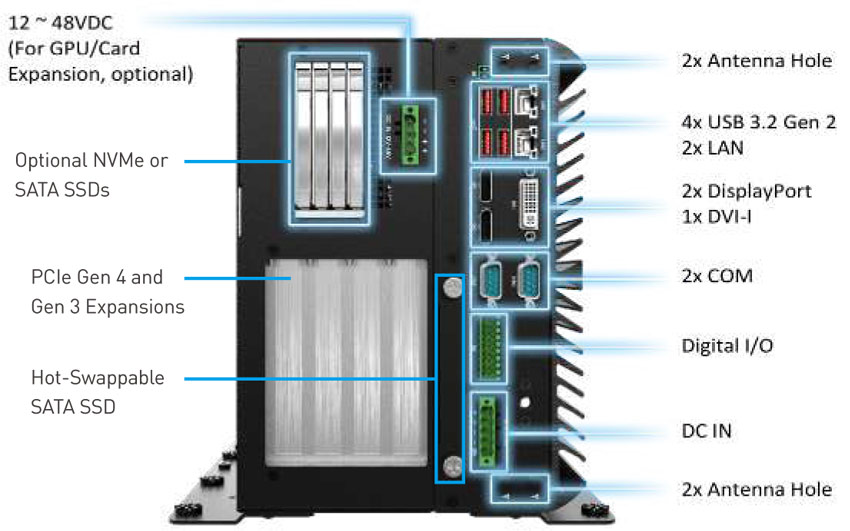

P-VCO-6000-RPL-3-2PWR
Machine Vision Computer w/ LGA 1700 for Intel 12/13/14th Gen CPU & R680E PCH, 3x PCIe, 3x Expansion Slots, 2x Power Input
- LGA 1700 socket for 12th/13th Gen. Intel® ADL & RPL Processor (35W TDP)
- Intel® R680E chipset
- 2x DDR5 4800/5600MHz SODIMM. Max. up to 64GB
- Triple Independent Display: 2x DisplayPort, 1x DVI-I
- 2x Intel® 2.5GbE supporting Wake-on-LAN and PXE
- 2x 2.5” SATA HDD Bay (1x Internal) and with RAID 0, 1 support
- 1x Full-size Mini PCIe (1x shared by 1x mSATA), 2x SIM socket
- 1x M.2 (E Key, 2230), 1x M.2 (B Key, 2242/3042/3052)
- 1x PCIe x16 (16-lane, Gen4); 2x PCIe x4 (1-lane, Gen 2)
- 6x RS-232/422/485 (4x internal), 4x USB 3.2 Gen 2, 5x USB 3.2 Gen 1 (internal)
- 8x DI + 8x DO with isolation
- 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
- 48VDC 600W Power Board for GPU Expansion
- Wide Operating Temperature -25°C to 70°C (35W CPU)
- TPM 2.0 Supported
| System | |
| Processor | Support 12th/13th Gen Intel® ADL & RPL Processor (LGA 1700, 35W TDP) Intel® Core™ i9-13900TE/i9-12900TE, up to 24 Cores, 36MB Cache, up to 5 GHz, 35W Intel® Core™ i7-13700TE/i7-12700TE, up to 16 Cores, 30MB cache, up to 4.8 GHz, 35W Intel® Core™ i5-13500TE/i5-12500TE, up to 14 Core, 24MB Cache, up to 4.5 GHz, 35W Intel® Core™ i3-13100TE/i3-12100TE, up to 4 Cores, 12MB Cache, up to 4.1 GHz, 35W |
| System Chipset | Intel® R680E Express Chipset |
| LAN Chipset | 2.5 GbE1: Intel I226, 2.5 GbE2: Intel I226, Support Wake-on-LAN and PXE, Support TSN |
| Audio Codec | Realtek ALC888S |
| System Memory | 2x 262-Pin DDR5 4800/5600MHz SODIMM. Max. up to 64GB (ECC and Non-ECC) |
| Graphics | Intel® UHD Graphics 770/710 |
| BIOS | AMI 256Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 2x DisplayPort 1.4a, Support resolution 5120 x 3200, Up to 7680 x 4320 |
| DVI | 1x DVI-I, support resolution 1920 x 1200 |
| Multiple Display | Triple Display |
| VGA | Yes (by optional split cable) |
| Storage | |
| M.2 | 1x M.2 B Key, 2242/3042/3052 (PCIe x2, Support AI Module/NVMe Storage) (PCIe x1 & USB 3.2 Gen1, Support 4G/5G) |
| mSATA | 1x mSATA (Shared by 1x Mini PCI Express) |
| SIM Socket | 2x Internal SIM socket (Mini PCIE/M.2 B Key attached) |
| SSD/HDD | 1x Internal 2.5" SATA/SSD HDD Bay (support H=9mm) 1x Removable 2.5" SATA HDD Bay (support H=7mm, Hot-swappable) Support RAID 0, 1 Configuration Options: • 4x Removable 2.5" SATA HDD Bay (support H=7mm, Hot-swappable, Optional) Support RAID 0, 1, 5, 10 • 2x Removable 2.5" SATA HDD Bay (support H=15mm, Hot-swappable, Optional) Support RAID 0, 1, 5, 10 • 2x Removable 2.5" U.2 NVMe Bay (support H=15mm, Hot-swappable, Optional) Support RAID 0, 1 |
| Expansion | |
| Mini PCIe | 1x Full-size Mini PCIe (1x shared by 1x mSATA) |
| PCIe | 1x PCIe x16 (Gen 4) 2x PCIe x4 (1-lane, Gen 2) |
| Card Dimension | 310 (L) x 112 (H) mm |
| I/O | |
| COM | 2x RS-232/422/485 ; 4x RS-232/422/485 (internal) |
| DIO | 8 in / 8 out (Isolated) |
| LAN | 2x RJ45 |
| Universal I/O Bracket | 2x Universal I/O Bracket (By mini PCIe interface) |
| USB | 4x USB 3.2 Gen 2 (10 Gbps) 1x USB 3.2 Gen 1 (5 Gbps, Internal) 1x USB 3.2 Gen 1 header (5 Gbps, internal) |
| Others | 4x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x PC/Car Mode Switch, 1x Delay Time Switch 1x Removable CMOS Battery (internal) 1x 6CM FAN Module (Optional) |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux kernel |
| Power | |
| Power Adapter | Optional AC/DC 24V/9.2A, 220W Optional AC/DC 24V/11.67A, 280W (for more advanced CPU) Optional AC/DC 24V/15A, 360W (for more advanced i7/i9 CPU) Optional AC/DC 48V/12.5A, 600W (for GPU Expansion) |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Power Ignition Management |
| Power Supply Voltage | • 9~48VDC • 48VDC (For GPU Expansion) |
| Power Connector | 5-pin Terminal Block 4-pin Terminal Block (second power supply for GPU) |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -25°C to 70°C (35W CPU) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 62368 Ed. 3, CE, FCC Class A |
| Vibration | With HDD: 1 Grms (5 500 Hz, 0.5 hr/axis) With SSD: 3 Grms (5 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 20G half-sin 11ms |
| Physical | |
| Dimension | 157 (W) x 340 (D) x 240 (H) mm |
| Weights | 9.2 KG |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting |
VCO-6000-RPL Series Machine Vision Computer
AI Vision at the Rugged Edge
Streamline and consolidate heavy edge AI workloads with the latest VCO-6000-RPL Machine Vision Computer, powered by 13th Gen Intel® Core™ processors. Engineered for seamless integration of dual FHFL GPU cards through PCIe Gen 4 and industry-leading external storage expansion drives for optimized processing and data aggregation. Deploy machine vision and AI inference applications with utmost reliability and performance to the rugged edge.
Built Rugged. Built Ready.
The VCO-6000-RPL is designed for industrial reliability across a spectrum of harsh environmental conditions. With a wide operating temperature range, shock & vibration resistance, and extended voltage range, it is prepared for the deployment challenges faced at the rugged edge.

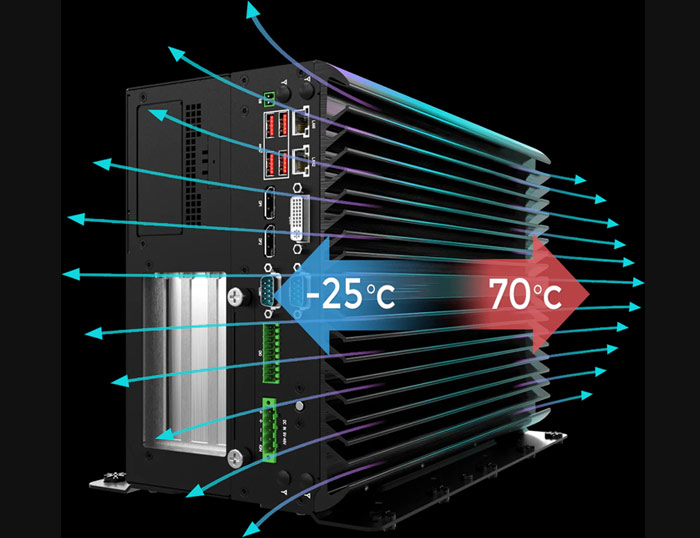

- Wide Operating Temp. (-25°C to 70°C)
- Shock & Vibration Resistant (MIL-STD-810G Compliant)
- Wide Power Input (9~48VDC)
- Industrial Locking Bracket for GPU Cards
- TPM 2.0 (Root-level Hardware Security)
13th Gen Intel® Core™ Processor
The VCO-6000-RPL AI Edge Inference Computer is powered with Intel’s latest hybrid-core architecture utilizing Performance (P) Cores and Efficiency (E) Cores for enhanced processing capabilities. Leverage Intel’s 13th Gen processors with R680E chipset for high-performance, real-time computing and streamline intensive AI workloads.
- Up to 24 Cores: 8 P-Cores, 16 E-Cores
- Up to 32 Threads
- Increased L2 & L3 Cache
- Industrial Locking Bracket for GPU Cards
- 35W TE (Power-Optimized Embedded) Processors
Intel 7 P/E Hybrid Architecture
Unleash unparalleled performance and efficiency with Intel’s latest generation performance and efficiency core processors, meticulously crafted to redefine computing experiences.
- Powerful P Cores: P Cores deliver exceptional performance for demanding edge-native real-time processing.
- Efficiency Redefined with E Cores: E Cores redefine power efficiency, providing a perfect balance of power and energy savings, perfect for environments in rugged edge computing
- Cutting-Edge Technology: incorporate the latest technological advancements from AI capabilities, advanced security features, and lightning-fast connectivity.
Double the GPU, Double the AI Performance

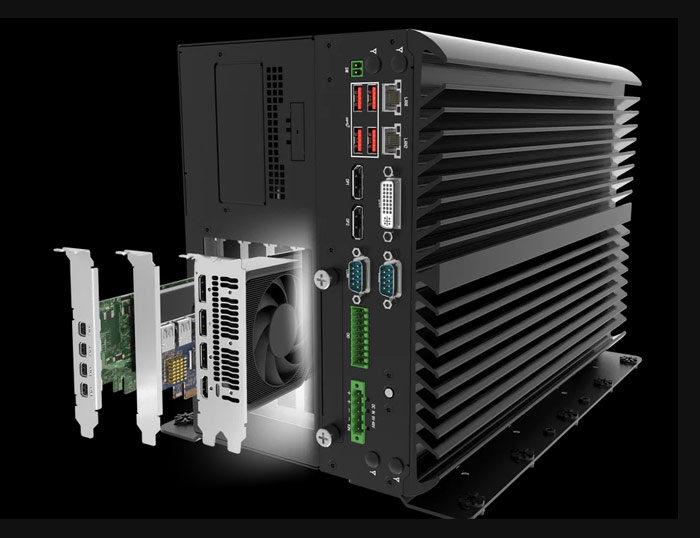

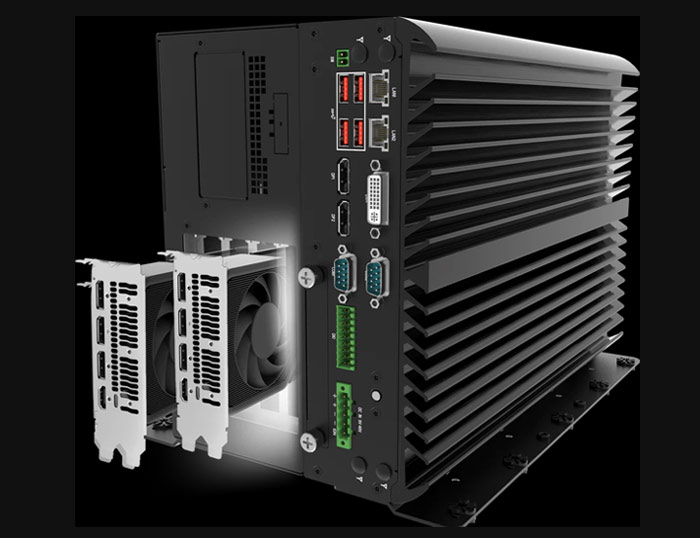

The VCO-6000-RPL Machine Vision Computer provides uncompromised performance acceleration for the most demanding edge AI workloads with support for dual full-height, full-length (FHFL) GPU configurations. After thorough testing and validation, the VCO-6000-RPL series supports selected professional-grade GPUs for plug-and-play configurations optimized for edge AI computer vision.
Lower Latency, Faster Speeds: PCIe Gen 4
PCIe Gen 4 doubles the speed of its previous generation for higher bandwidth and faster data transmission with GPUs and add-in expansion card performance accelerators. The VCO-6000-RPL Machine Vision Computer implements multiple PCIe Gen 4 slots for real-time processing and minimized latency.
- 1x PCIe x16 (Gen 4), 2x PCIe x4 (Gen 3, Open-ended)
- 2x PCie x16 (Gen 4), 1x PCIe x4 (Gen 3, Open-ended)
- 2x PCie x16 (Gen 4), 1x PCIe x4 (Gen 3, Open-ended)
High-Speed NVMe & High-Capacity SATA Storage

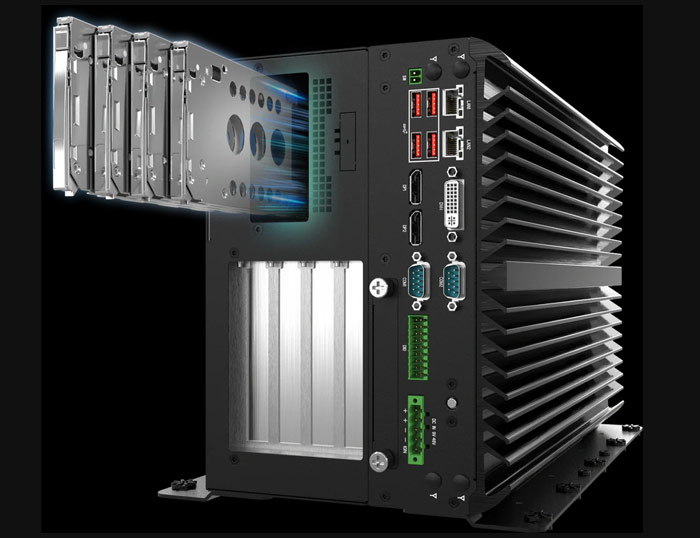

The VCO-6000-RPL Machine Vision Computer offers an industry-leading feature for hot-swappable 2.5” SSD storage options in NVMe (PCIe) or SATA interfaces for seamless data offloading procedures and redundancy with RAID.
Configurable Options:
- 4x 2.5” SATA SSD (7 mm) | RAID 0, 1, 5, 10
- 2x 2.5” SATA SSD (15 mm) | RAID 0, 1, 5, 10
- 2x 2.5” U.2 NVMe SSD (15 mm) | RAID 0, 1

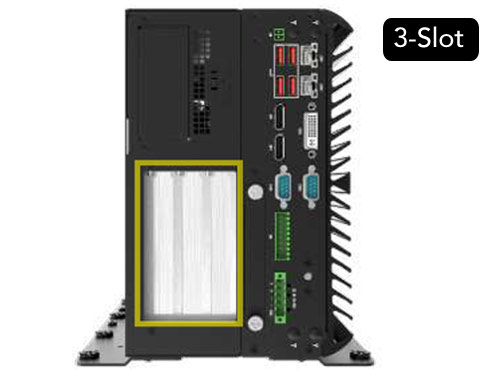

VCO-6000-RPL-3E with 3-Slot Configuration
- 1x PCIe x16 (16Lane, Gen4)
- 2x PCIe x4 [Open] (Shared PCIe 1 Lane, Gen3)
- Card Dimensions: 310mm (L) x 112mm (H)

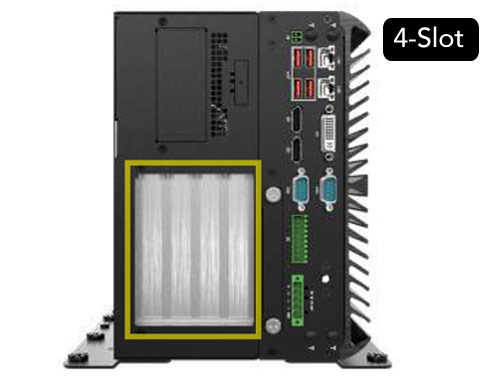

VCO-6000-RPL-4E with 4-Slot Configuration
- 2x PCIe x16 (8Lane each, Gen4)
- 1x PCIe x4 [Open] (1Lane, Gen3)
- Card Dimensions: 310mm (L) x 112mm (H)
