A-ACS-ADNC
Intel® Alder Lake N series Fanless Slim System
- Intel® Alder Lake i3N & N Series(15W) & Amston Lake series Processors
- 1 x 260-Pin DDR4 3200MHz non-ECC SO-DIMM Socket Supports Up to 16GB
- Dual Display, HDMI 2.0b & DP++
- 4 x COM Port (4 x RS232)
- 2 x Intel® Ethernet Controller (1GbE)
- 3 x Expanslot Slot (M.2 2230 Key-E, 2242/3052 Key-M, 2280 Key-M)
- 6 x USB Port (4 x USB3.2 Gen1, 2 x USB2.0 for System, M/B, 4 x USB 3.2 Gen1, 5 x USB 2.0)
- 1 x DC jack
Datasheet
Product Specification
| System Information | |
| Processor | Intel® Alder lake N97 /I3-N305 Processor |
| System Memory | 1 x SO-DIMM DDR4 3200MHz up to 16GB |
| I/O Chipset | Super IO-ITE: IT8786E-I |
| BIOS Information | AMI uEFI BIOS, 128Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step |
| H/W Status Monitor | CPU temperature monitoring Voltages monitoring CPU fan speed control |
| Expansion | |
| M.2 | 1 x M.2 Key-E 2230 (PCIE+USB2.0) 1 x M.2 Key-B 2242/3052 (USB2.0+USB3.0) 1 x M.2 Key-M 2280 (PCIE+SATA) |
| Storage | |
| M.2 | 1 x M.2 Key-M 2280 (PCIe) slot for storage NVMe SSD |

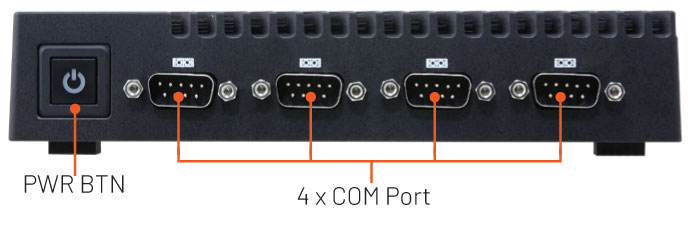

| Front I/O | |
| Power Button | 1 x PWR BTN with LED |
| COM Port | 4 x RS232(DB9) |

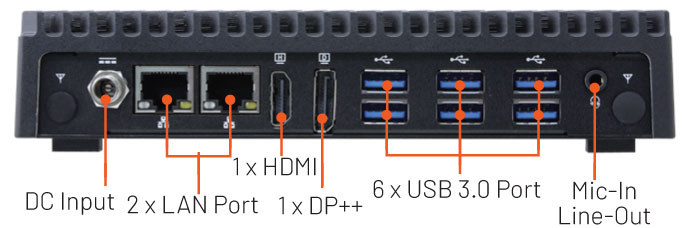

| Rear I/O | |
| USB | 4 x USB 3.2 Gen1x1 Type A 2 x USB 2.0 Type A |
| LAN Port | 2 x RJ45 |
| Audio | 1 x Mic-in, Line-out, 2 in1 3.5mm Jack |
| DP | 1 x DP++ |
| HDMI | 1 x HDMI 2.0b |
| Antenna | 2 x Antenna Mounting |
| Right I/O | |
| Antenna | 2 x Covered antenna hole |
| Left I/O | |
| Antenna | 2 x Covered antenna hole |
| Display | |
| Graphic Chipset | Intel® UHD Graphics for 13th Gen Intel® Processors or Intel® Iris® Xe Graphics eligible for 12th Gen Intel® Processors |
| Resolution | HDMI 2.0 2048x 1080@60Hz DP++: Max 4096 x 2340@60Hz |
| Audio | |
| Audio Codec | RealTek ALC897 audio codec |
| Ethernet | |
| LAN Chipset | 1 x Intel® i226V 2.5 Gigabit Ethernet Controller 1 x Intel® WGI210AT Gigabit Ethernet Controller |
| Specification | 10/100/1000 GbE (I210-AT) 10/100/1000 GbE (I226-V) |
| LED Indicator | 1 x I210AT 1GbE 1 x I226V 1GbE |
| Power Requirement | |
| Voltage Input Spec. | DC 12V |
| Voltage Input Connector | Lockable DC Jack |
| ACPI | Single power ATX support S0, S3, S4, S5 |
| Power Mode | AT/ATX (ATX is default setting) |
| Adapter | AC to DC adapter |
| Software Support | |
| OS | Win10, Win11, Linux |
| Mechanical & Environmental | |
| Operating Temp. | -10~55°C (32°F ~ 104°F) with 0.5m/s air flow |
| Storage Temp. | -30~70C° (-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 180mm x 136mm x 40mm |
| Vibration Test | with SSD: 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis |
| Shock Test | IEC 60068-2-27, Half Sine, 11ms |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces |
| Mounting Kit | Table Stand/Din Rail/VESA |
| Kensington Lock | Kensington Lock |
