SH-DH810
Embedded PC supports Intel® Core™ Ultra 200 series LGA1851 processors, Intel H810 Express chipset
- AI-Enhanced Power with the Intel® Core™ Ultra LGA1851 processors (Arrow lake-S)
- Core configuration: Up to 24 cores (8 Performance-cores and 16 Efficient-cores)
- Enhanced Graphics Performance: The integrated Intel® Graphics significantly enhance DH810’s suitability for commercial applications.
- Maximum capacity of up to 96GB (48GB per slot)
- 1 x M.2 2280, M key slot for PCIe Gen 4x4 or SATA 6Gb
- 1 x M.2 2230, E key slot for PCIe Gen 3x1, USB2.0, Intel CNVi module or Wlan-M module
- Triple Display: dual Display ports (one is USB-C type) and one HDMI port
Product Specification
| FORM FACTOR | 1.3L chassis |
| PROCESSOR | Intel® Core™ Ultra 200 series LGA1851 processors, TDP up to 65W. |
| CHIPSET | Intel H810 Express chipset |
| MEMORY | 2 x DDR5 SODIMM slots,48GB per DIMM (Max 96GB) DDR5 5600 MHz |
| VIDEO OUTPUT | (1) HDMI 2.1 (TMDS) (2) DP (Include 1 form USB 4.0 port) Triple video outputs 4K playback (Dual channel memory recommended) Integrated in CPU |
| AUDIO | Realtek ALC 888S High Definition Audio |
| ETHERNET | (1) Intel 2.5GbE LAN (1) Intel 1GbE LAN Supports 10/100/1000 Mb/Sec. Support wake ON LAN (WOL) feature |
| STORAGE INTERFACE | SATA 6.0Gb/s interface NVMe interface Support SATA RAID 0,1 |
| ONBOARD CONNECTORS | (1) 4pin fan connector (1) VGA(For PVG01 use) (1) 1x4 pin USB header(For WWN03 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header (1) RS232 voltage switch |

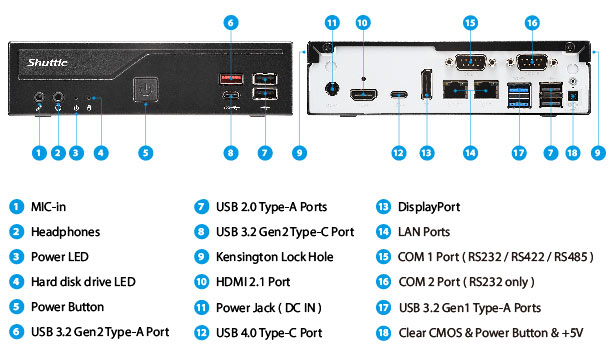

| FRONT PANEL | (2) USB 3.2 Gen2 ports (Include 1 Type-C) (2) USB 2.0 (1) Microphone-In (1) Line-Out (1) Power-On button (1) Power LED (1) HDD LED |
| BACK PANEL | (2) RJ45 LAN port w/LED (2.5G (1) HDMI port (1) Display port (2) USB 3.2 Gen1 ports (2) USB 3.2 Gen2 ports (1) USB 4.0 (20G, Type-C, with DP) (1) RS232 (1) RS232/RS422/RS485 (1) External 4pin header (1) DC-in (Supports 12V/19V) (1) Kensington lock |
| DRIVE BAYS | (1) 2.5" HDD / SSD bay |
| DIMENSIONS | 190(L) x 165(W) x 43(H) mm |
| POWER | 120W Power Adapter Input:100- 240V AC 19V 6.32A |
| ACCESSORIES | XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 120W adapter |
| EXPANSION SLOT | (1) M.2 2280 Type M key socket (1) M.2 2230 Type E key socket |
| OS SUPPORT | Windows 11 64 bit O.S Linux |
| REMARK | RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide. |
| NET WEIGHT | NW :1.32 (kg) |
| OPERATING TEMPERATURE | 0℃~50℃ |
