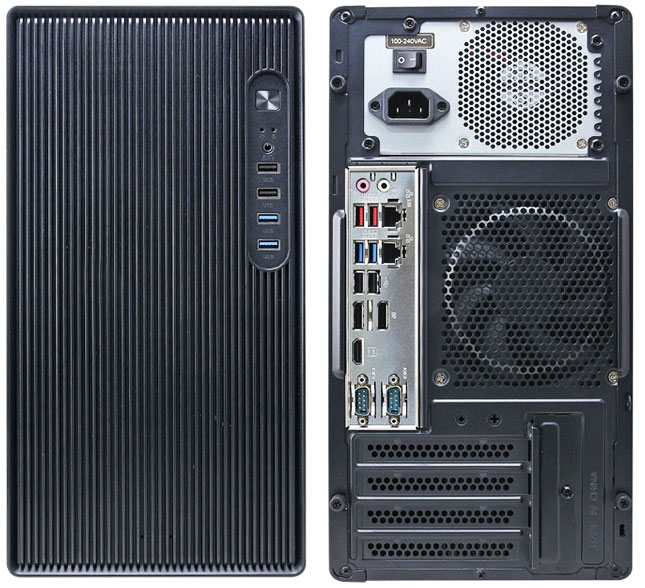

A-BMX-P820
Intel® 14th Gen Core™ i7/i5/i3 Processor (35W/65W) CPU Barebone System
- 14th Generation Intel® Raptor Lake-S Refresh (35 W ) Processors
- Two 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 64GB Max. (non ECC only)
- 2 x Intel® i219LM, I226V Ethernet
- RealTek ALC897 Audio Codec
- 1 x HDMI 1.4b 4K@30Hz, 2 x DP++ 1.4a 4K@60Hz
- 3 x SATA III
- 4 x USB 3.2 Gen1 x 1, 4 x USB 2.0 Type-A
- 1 x PCIe x16 (Gen4), 1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III), 1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 + USB 2.0)
- Onboard infineon SLB 9670VQ2.0 support TPM2.0
- 3 x Audio (Mic in and Line out for Rear IO, Mic in/Line out for Front IO)
- ATX power
Datasheet
| System Information | |
| Processor | Intel® Core™ i7-14700T / i5-14500T Processor (35W, Default) Intel® Core™ i7-14700 / i5-14500 Processor (65W, Project Base) |
| Platform Controller Hub | Intel® H610E Chipset |
| System Memory | 2 x 262P SO-DIMM Socket (Capacity Max. Up to 64GB DDR5 4800) |
| SBC | Mini-ITX 170mmx170mm (MX610H) |
| H/W Status Monitor | Monitoring CPU Temperature, Voltage with Auto Throttling Control |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step |
| TPM | Onboard infineon SLB 9670VQ2.0 support TPM2.0 |
| I/O Chipset | nuvoton NCT6126D |
| BIOS Information | AMI 256Mb UEFI BIOS |
| Expansion | |
| M.2 | 1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 + USB 2.0) |
| PCIe | PCIex 16 (NVIDIA RTX 2000 Ada Generation graphic card, by optional) |
| Storage | |
| M.2 | 1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III) |
| Drive Bay | 2 x Internal 2.5” Drive Bay |
| Front I/O | |
| Power Button | 1 x PWR |
| Audio | 1 x Audio jack(Mic in/Line out) |
| LED Indicator | 1 x PWR LED 1 x Data Access LED |
| USB | 2 x USB 2.0 2 x USB 3.2 (Gen 1 x 1) |
| Rear I/O | |
| USB | 4 x USB 3.2 Gen1x1 2 x USB 2.0 |
| HDMI | 1 x HDMI 1.4b 4K@30Hz |
| LAN Port | 1 x Intel® I219LM Gigabit Ethernet PHY 1 x Intel® i226V 2.5 Gigabit Ethernet |
| Audio | Mic-in, Line-out |
| DP | 2 x Dual Mode DisplayPort (DP++) 1.4a 4K@60Hz |
| COM Port | 2 x RS-232/422/485 |
| Onboard I/O | |
| CPU/System FAN | CPU FAN: 1 x CPU Smart FAN Only System FAN: 2 x SYS FAN |
| Display | |
| Graphic Chipset | Intel® UHD Graphics 770 (Depends on CPU) |
| Resolution | HDMI 1.4b 4K@60Hz Dual Mode DisplayPort (DP++) 1.4a 4K@60Hz |
| Audio | |
| Audio Codec | RealTek ALC897 |
| Ethernet | |
| LAN Chipset | 1 x Intel® I219LM Gigabit Ethernet PHY 1 x Intel® i226V 2.5 Gigabit Ethernet |
| Power Requirement | |
| ACPI | Single power ATX support S0, S3, S4, S5 |
| Power Mode | AT/ATX (ATX is default setting) |
| Power Supply Unit | AC to ATX PSU |
| Voltage Input Spec. | +12V/+5V/5VSB/+3.3V/-12V (ATX power) |
| Voltage Input Connector | 4P ATX connector |
| DC Output Spec. | ATX power |
| Software Support | |
| OS | Win10, Win11, Linux |
| Mechanical & Environmental | |
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) with 0.5m/s air flow |
| Storage Temp. | -30~70C° (-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 309 x 185 x 354mm (12.16”x 7.28”x 13.93”) |
| Packing List | |
| Items | 1-BMX-P820 1 x AC 350W / 500W PSU (by opt.) 1 x Screws kit (For M.2, SATA 2.5” cables) |
