A-HPS-ERSU2A
Single 4th/5th Generation Intel® Xeon® Scalable Processor with Intel® C741 Chipset, 500W, 5x RJ-45, IPMI2.0 Workstation
- 19" 2U Chassis
- 432.4mm(W) x 88mm(H) x 661mm(D)
- 1 x 500W ATX PSU
- 4x Internal 3.5” storage bays + 2x Internal 3.5” or 2.5” storage bays
- Intel LGA4677 Socket supports 4th/5th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W)
- Intel® C741 Chipset
- 6 x DDR5 5600 MHz RDIMM up to 1.5TB
- IPMI 2.0 with AST 2600 BMC controller onboard
- 1 x Intel I210AT 1GbE controller
- 1 x Intel I226-LM 2.5GbE controller
- 1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports
Datasheet
| System Information | |
| Processor | Intel LGA4677 Socket supports 4th/5th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W) |
| Platform Controller Hub | Intel® C741 Chipset |
| System Memory | 6 x DDR5 5600 MHz RDIMM up to 1.5TB |
| BIOS | AMI UEFI BIOS |
| Watchdog Timer | System reset event 0 ~ 6553 seconds |
| H/W Status Monitor | CPU temperature Fan speed and voltage monitoring Fan speed control |
| TPM | TPM 2.0 onboard |
| IPMI | IPMI 2.0 with AST 2600 BMC controller onboard |
| SBC | HPM-ERSUA |

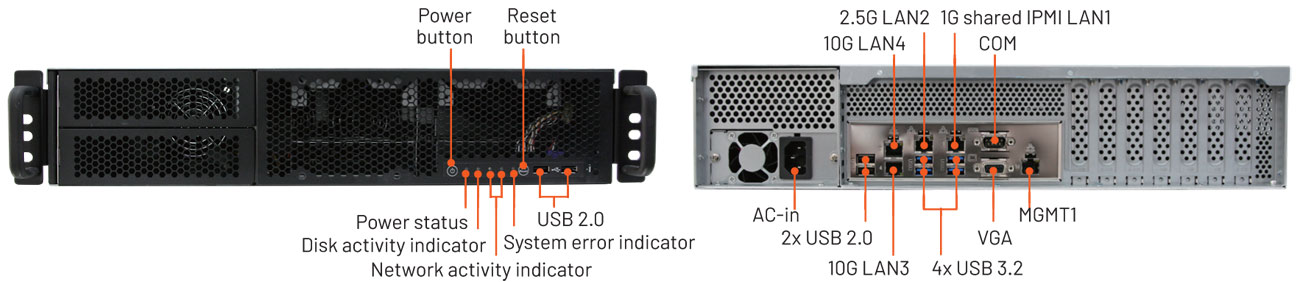

| Front I/O | |
| USB | 2 x USB 2.0 type A ports |
| Power Button | 1 x Power button |
| Reset Button | 1 x Reset button |
| LED Indicator | 1 x Power status indicator 1 x Disk activity indicator 1 x Network activity indicator 1 x System Error indicator |
| Rear I/O | |
| USB | 4 x USB 3.2 Gen1 ports 2 x USB 2.0 type A ports |
| COM Port | 1 x RS232 port |
| VGA | 1 x VGA port |
| RJ-45 | 5 x RJ45 MGMT port for dedicated IPMI access only LAN1 port for 1GbE shares with IPMI access LAN2 port for 2.5GbE LAN3 and 4 ports for 10GbE |
| Display | |
| Graphic Chipset | AST 2600 BMC controller |
| Resolution | 1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp |
| Power Requirement | |
| Power Supply Unit | 1 x 500W ATX PSU |
| Expansion | |
| Expansion | 4 x PCIe Gen5 x16 slots and 3 x PCIe Gen5 x4 slots Slot 1, PCIe 5.0 x16 Slot 2, PCIe 5.0 x4 Slot 3, PCIe 5.0 x16 Slot 4, PCIe 5.0 x4 Slot 5, PCIe 5.0 x16 Slot 6, PCIe 5.0 x4 Slot 7, PCIe 5.0 x16 (Slot 7 is the slot closest to CPU) |
| Storage | |
| M.2 | 1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor |
| 2.5 Drive Bay | 2x Internal 2.5" or 3.5" Drive Bay |
| Other Storage Device | 4x Internal 3.5" Drive Bay |
| Ethernet | |
| LAN Chipset | 1 x Intel I210AT 1GbE controller 1 x Intel I226-LM 2.5GbE controller 1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports |
| LAN Port | 5 x RJ45 MGMT port for dedicated IPMI access only LAN1 port for 1GbE shares with IPMI access LAN2 port for 2.5GbE LAN3 and 4 ports for 10GbE |
| Mechanical & Environmental | |
| Operating Temp. | 0 ~ 30°C (L6 system) |
| Storage Temp. | -40°C 24hrs IEC60068-2-1 Cold test Test: Ab 70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca |
| Operating Humidity | 35°C @95% Relative Humidity, Non-condensing |
| Weight | 12.7KG |
| Dimension (W x L x D) | 19" 2U Chassis 432.4mm(W) x 88mm(H) x 661mm(D) 488mm(W) x 88mm(H) x 661mm(D with ear mount |
| Software Support | |
| OS | Windows 10 IoT Enterprise LTSC 2021 Windows Server IoT 2019 with VT-d disabled Windows Server IoT 2022 Ubuntu 21.10, 22.04 LTS or later Red Hat Enterprise Linux (RHEL) 8.2 and later |
| Ordering Information | |
| Ordering Information | HPS-ERSU2A5-A1R L6 19" 2U Rackmount w/HPM-ERSUAA/500W |
