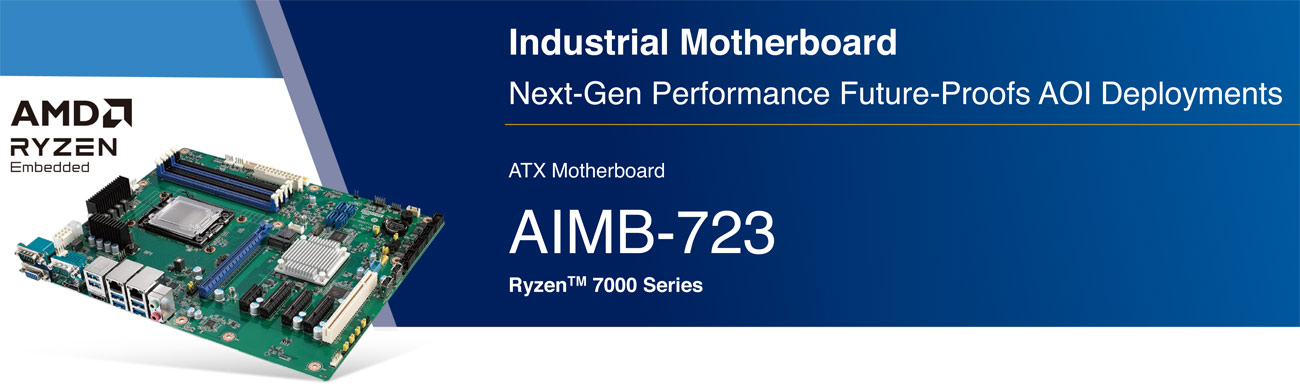

AD-AIMB-723
LGA1718 AMD Ryzen™ 7000 ATX Motherboard with DP/HDMI/VGA, DDR5, USB 3.2, M.2
- AMD Ryzen™ 7000 Series Desktop Processors with PRO 665 chipset
- Four DIMM sockets up to 128 GB DDR5 5200
- Triple display DP/HDMI/VGA and dual GbE LAN
- M.2, SATA RAID 0, 1, 10, and USB 3.2 Gen 2
- Optimized PCIe placement for GPU and Frame grabber card installation.
Datasheet
| Model | AIMB-723G2-00A1 |
|---|---|
| CPU | AMD Ryzen™ Embedded 7000/9000 and EPYC™ 4005 Server Processors |
| Socket Q'ty | 1 x LGA1718 |
| Core Number | Up to 12 |
| L3 Cache | Up to 64 MB |
| Base Frequency | Up to 4.7 GHz |
| BIOS | AMI 256 Mbit SPI Flash |
| Chipset | AMD B650 |
| PCI Express x 16 | 1 |
| PCI Express x 8 | 2 |
| PCI Express x 4 | 1 |
| PCI Express x 1 | 1 |
| PCI | 1 |
| Type and Speed | Dual-Channel DDR5 5600 MHz (non-ECC) |
| System Max Capacity | 192 GB |
| Slots | 4 x 288-pin UDIMM |
| Interface | 10/100/1000 Mbps |
| Controller | LAN1: Intel® I226-V, LAN2: Intel® I226-V |
| Connector | 2 x RJ45 |
| Operating Temperature | 0 ~ 60 °C (32 ~ 140 °F) |
| Non-Operational Temperature | -40 ~ 85 °C |
| Operating Humidity | 95% @ 40 °C (Non-condensing) |
| Non-Operating Humidity (Non-condensing) | 95% @ 60 °C |
| Display | 1 x HDMI, 1 x DP, 1 x VGA |
| Ethernet | 2 |
| USB | 6 (4 x USB 3.2 Gen 2, 2 x USB 3.2 Gen1) |
| Audio | 2 (Mic-in, Line-out) |
| Serial | 2 (RS-232) |
| Output | System Reset |
| Interval | Programmable 1 ~ 255 sec |
| Dimension (L x H) | 304.8 x 244 mm (12" x 9.6") |
AD-AIMB-723, industrial ATX motherboards with AMD RYZEN™ Embedded 7000 processors, is the first industrial-grade motherboard integrated with the AMD B650 chipset, delivering high computing performance with a remarkable 7-year lifespan. It stands out as the first AIMB motherboard to embrace DDR5 UDIMM, as well as provides the scalability to support up to a three-slot discrete GPU card and three additional frame grabber cards for machine vision applications.
- Support a High-end GPU Card to Realizing AI AOI
- Elevating Industrial Applications at the Edge with abundant I/O and OS supports
Case Study: A Machine Vision Inspection Solutions for an IC Production Line
Intro
In IC manufacturing, traditional manual inspection is inefficient and prone to errors. With the rise of production line automation, integrating machine vision technology has become essential to improving inspection accuracy and speed.
Challenges
- Customers require high GPU performance for AI inference optical inspection.
- High-resolution images require faster storage read and write speed.
Solutions and Technologies
- Optimized PCie placement for a huge GPU card, three PCie add-on cards, and one PCI add-on card.
- Three PCie x4 slots for 1/0 cards for up to twelve cameras.
- NVME M.2 M-key SSD provides fast read and write ability.
