AD-AIMB-788E
LGA1700 12th/13th/14th Generation Intel® Core™ i9/i7/i5/i3 ATX Motherboard with DP/HDMI/VGA, DDR5, USB 3.2, M.2
- Intel® 12th/13th/14th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with Q670E/R680E chipset
- Dual PCIe x16 expansion slots
- DDR5 UDIMM up to 48GB per slot; 192 GB total
- Seven PCIe slots or Dual M.2 M Key for NVMe RAID
- Triple display DP/HDMI/VGA and dual GbE LAN
- M.2, SATA RAID 0, 1, 5, 10, USB 3.2 Gen 1
- Advantech iBMC remote out-of-band power management solution on DeviceOn
Datasheet
| Model | AIMB-788E-00A1 | AIMB-788E-10A1 |
|---|---|---|
| Processor System | ||
| CPU | Intel® Core™ Ultra processors (Series 2) | Intel® Core™ Ultra processors (Series 2) |
| Socket Q'ty | 1 x LGA1700 | 1 x LGA1700 |
| TDP | Up to 65 W | Up to 65 W |
| Core Number | Up to 24 | Up to 24 |
| L3 Cache | Up to 36 MB | Up to 36 MB |
| Base Frequency | Up to 3.9 GHz | Up to 3.9 GHz |
| Chipset | Intel® Q670E | Intel® Q670E |
| BIOS | AMI 256 Mbit SPI Flash | AMI 256 Mbit SPI Flash |
| Expansion | ||
| PCIe x16 | 2 | 2 |
| PCIe x8 | 2 | 2 |
| PCIe x4 | 2 | 1 |
| PCI | - | - |
| Expansion Interface | ||
| PCI Express x 1 | 1 | 1 |
| Memory | ||
| Type and Speed | Dual-Channel DDR5 4400 MHz (non-ECC) | Dual-Channel DDR5 4400 MHz (non-ECC) |
| System Max Capacity | 192 GB | 192 GB |
| Per Slot Max Capacity | 96 GB | 96 GB |
| Slots | 4 x 288-pin DIMM | 4 x 288-pin DIMM |
| LAN | ||
| Interface | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Controller | LAN1: Intel I219LM, LAN2: Intel I210IT | LAN1: Intel I219LM, LAN2: Intel I210IT |
| Connector | 2 x RJ45 | 2 x RJ45 |
| Rear I/O Interface | ||

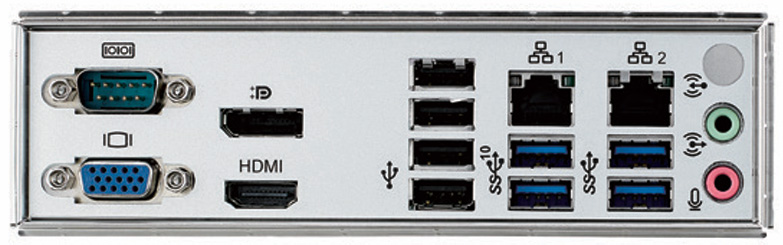

| VGA | 1 | 1 |
| HDMI | 1 (Resolution up to 3840 x 2160 @ 60Hz) | 1 (Resolution up to 3840 x 2160 @ 60Hz) |
| Display | 1 | 1 |
| Ethernet | 2 | 2 |
| USB | 8 (4 x USB 3.2 Gen 1, 4 x USB 2.0) | 8 (4 x USB 3.2 Gen 1, 4 x USB 2.0) |
| Audio | 2 (Mic-in, Line-out) | 2 (Mic-in, Line-out) |
| Serial | 1 (RS-232) | 1 (RS-232) |
| WatchDog Timer | ||
| Output | System Reset | System Reset |
| Interval | Programmable 1~255 sec | Programmable 1~255 sec |
| Environment | ||
| Operating Temperature | 0 ~ 60 °C (32 ~ 140 °F) | 0 ~ 60 °C (32 ~ 140 °F) |
| Non-Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) |
| Humidity | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) |
| Operating Humidity | 95% @ 40 °C (Non-condensing) | 95% @ 40 °C (Non-condensing) |
| Physical Characteristics | ||
| Dimension (L x H) | 304.8 x 244 mm (12" x 9.6") | 304.8 x 244 mm (12" x 9.6") |
