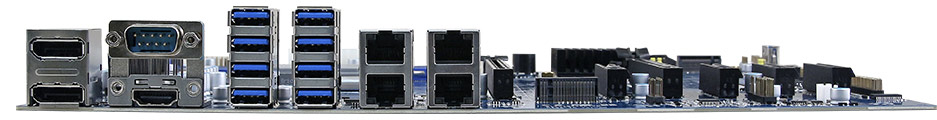

A-EAX-R680BP
12/13/14th & Series 2 Gen Intel® Core™ i9/i7/i5/i3 Processors, supports LGA1700 CPU Up to 125W Max
- 12/13/14th & Series 2 Gen Intel® Core™ i9/i7/i5/i3 Processors, supports LGA 1700 CPU Up to 125W Max, Intel® R680E Chipset
- 4 x 288-Pin DDR5 4400MHz U-DIMM Socket Supports Up to 192GB (ECC Memory Support by CPU)
- 2 x DP, 1 x HDMI2.0b
- 2 x PCIe x16 Slots for 1 x PCIe x16 Gen5 Default or 2 x PCIe x8 Gen5 (BIOS selection), 2 x PCIe x4 Gen4, 1 x PCIe x4 Gen3, 1 x PCIe x4 slot for 1 x PCIe x2 (Gen3)
- 2 x Intel® i226LM & 2 x Intel® i226V 2.5G Gigabit Controller
- 8 x USB 3.2 Gen2, 1 x USB 3.2 Gen1 Vertical Type A, 5 x USB by Pin-header
- 2 x M.2 Key M NVMe (Gen4x4) 2242/2280/22110
- 4 x RS232, 2 x RS232/422/485 (COM2 & 3 By BIOS Selection)
Datasheet
Product Specification
| System Information | |
| Processor | LGA 1700 Socket Supports 12/13/14th & Series 2 Gen Intel® Core™ processors i9/i7/i5/i3 (Max. TDP at 125W) |
| Platform Controller Hub | Intel® R680E Chipset |
| System Memory | 4 x 288-Pin DDR5 4400MHz U-DIMM Socket Supports Up to 192GB (ECC Memory Support by CPU) |
| I/O Chipset | Nuvoton NCT6126D |
| Watchdog Timer | H/W Reset, 5~255 Seconds/5~255 Minutes |
| BIOS | AMI uEFI BIOS, 256Mbit SPI Flash ROM |
| H/W Status Monitor | CPU Temperature Monitoring Voltage Monitoring CPU Fan Speed Control |
| TPM | Onboard NuvoTon NPCT760 Supports TPM 2.0 |
| Board | ATX |
| Expansion | |
| Expansion | 2 x PCIe x16 slots for 1 x PCIe x16 Gen5 default or 2 x PCIe x8 Gen5 (BIOS selection) 2 x PCIe x4 Gen4 1 x PCIe x4 Gen3 1 x PCIe x4 slot for 1 x PCIe x2 Gen3 2 x M.2 NVMe Key M 2242/2280/22110 (PCIe Gen4x4, for Storage only, no SATA) |
| Storage | |
| Storage | 2 x M.2 Key M NVMe (Gen4x4) 2242/2280/22110 4 x SATAIII |
| Display | |
| Graphic Chipset | Intel® Graphic Chipset 12/13/14th & Series 2 Gen Intel® Core™ processors CPU Integrated |
| Spec. & Resolution | 2 x DP (DP1.4a): Max (Combined): 7680 x 4320@60Hz (DP++ Via dongle: 1920 x 1080@60 Hz) 1 x HDMI (HDMI 2.1b): Max Resolution 4K x 2K@60Hz (With HDR) |
| Multiple Display | Triple Display |
| Audio | |
| Audio Codec | Realtek ALC888S HD Audio Decoding Controller |
| Audio Interface | Mic-in, Line-out, 5.1-CH Audio |
| Audio Amplifier | 2 x 6W 8Ω Amplifier |
| Ethernet | |
| LAN Chipset | 2 x Intel® i226-LM 2.5G Gigabit Controller 2 x Intel® i226V 2.5G Gigabit Controller |
| LAN Port | 4 x RJ-45 |
| Power Requirement | |
| Power Mode | AT/ATX (Default Setting: ATX) |
| Software Support | |
| OS | Windows 11, Linux |
| Certification | |
| Certification Information | CE, FCC, RoHS Compliant |
| I/O | |
| USB | 8 x USB 3.2 Gen2 1 x USB 3.2 Gen1 Vertical Type A 5 x USB 2.0 |
| COM Port | 1 x RS232 on rear I/O, 2 x RS232/422/485 by pin-header, 3 x RS232 by pin header |
| SATA | 4 x SATA III |
| RAID | Support RAID 0, 1, 5, 10 |
| DIO | 1 x 16-bit GPIO |
| Mechanical & Environmental | |
| Operating Temp. | 0~55°C (32~131°F), 0.5m/s Air Flow |
| Storage Temp. | -40~ +75°C (-40~167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 1.54lbs (0.7kg) |
| Power Requirement | +12V/+5V/5VSB/+3.3V/-12V |
| Power Mode | AT/ATX (Default Setting: ATX) |
| Dimension (L x W) | 12" x 9.6" (304.8mm x 243.84mm) |
