AS-IMB-1710
ATX motherboard with Intel® Core i7/i5/i3/Celeron. Supports DDR4 Long-DIMM, up to 128GB
- Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron
- Supports Dual Channel DDR4 Long-DIMM 2400/2666, up to 128GB
- 2 x Displayport, 1 x HDMI, 1 x VGA
- 6 xUSB 3.1, 6 x USB 2.0, 6 x SATA3, 10 x COM
- 1 xPCIe x16, 1 x PCIe x8, 3 x PCIe x4, 2 ｘPCIe x1, 1 x mini-PCIe
- 1 x M.2 Key E ,1 x M.2 Key M
- 2 x Intel® LAN
- 1 x TPM
- ATX PWR (24+8-pin)
- Support RAID 0,1,5,10
Datasheet
Product Specification
| Form Factor | |
| Dimensions | ATX (12in x 9.6in) |
| Processor System | |
| CPU | Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron® (Supports up to 95W) |
| Chipset | Intel® Q370 |
| Expansion Slot | |
| PCIe | 1 x PCIe x16, 1 x PCIe x 8, 3 x PCIe x4, 2 x PCIe x1 |
| MiniPCIe | 1 x Full/Half with PCIe x1 and USB 2.0 |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, CNVI and USB 2.0 for Wireless 1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and shared SATA3 for SSD |
| Memory | |
| Technology | Dual Channel DDR4 2400/2666 MHz |
| Max. | 128GB* * Intel® Core i9/i7/i5 CPUs support up to 128GB (32GB per DIMM) Intel® Core i3/Pentium®/Celeron® CPUs support up to 64GB (16GB per DIMM) |
| Socket | 4 x LONGDIMM |
| Graphics | |
| VGA | Max resolution up to 1920 x 1200 @60Hz |
| DVI | N/A |
| LVDS | N/A |
| HDMI | Max resolution up to 4096 x 2160@24Hz |
| DisplayPort | Max resolution up to 4096 x 2304@60Hz |
| MultiDisplay | Triple Display |
| eDP | N/A |
| Ethernet | |
| Ethernet | 10/100/1000 Mbps |
| Controller | 1 x Intel® I210, 1 x Intel® I219LM |
| Storage | |
| SATA | 6 x SATA3 (6.0Gb/s), one is shared with M.2 Key M |

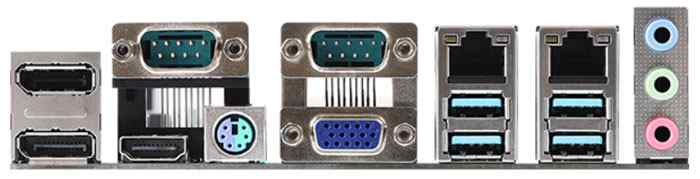

| Rear I/O | |
| VGA | 1 |
| DVI | N/A |
| HDMI | 1 |
| DisplayPort | 2 |
| Ethernet | 2 |
| USB | 4 x USB3.1 |
| Audio | 3 (Micin. Lineout, Linein) |
| Serial | 2 x COM (RS232/422/485) |
| PS2 | 1 x PS/2 Combo |
| Internal Connector | |
| USB | 2 x USB 3.1, 6 x USB 2.0 |
| LVDS / inverter | N/A |
| eDP | N/A |
| VGA | N/A |
| Serial | 8 x COM (RS232) |
| SATA | 6 x SATA3 (6.0Gb/s), one is shared with M.2 Key M |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| TPM | 1 x Onboard IC |
| Watchdog Timer | |
| Output | From super I/O to drag RESETCON# |
| Interval | 256 Segments, 0,1,2…255 Sec |
| Power Requirements | |
| Input PWR | ATX PWR (24+8pin) |
| Power On | AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC – 60ºC |
| Storage Temp | 40ºC – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
