A-HPM-GNRUA
Single Intel®Xeon® 6 Processor ATX Server Board and IPMI2.0. Processor supports up to 350W TDP
- Intel LGA4710 Socket supports Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W)
- 8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM up to 2TB
- TPM 2.0 onboard
- IPMI 2.0 with AST 2600 BMC controller onboard.
- 1 x Intel I210AT 1GbE controller
- 1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports
- 5 x SATA III(1 x MiniSAS HD 4i (for 4x SATA Only) & 1 x 7 pin SATA connector)
- 1 x RS232 port
- 2 x USB 3.2 Gen1 ports at Edge I/O
- 2 x M.2 M-Key slots PCIe 5.0 x4 NVMe SSD 2260/2280/22110 form factor
Datasheet
Product Specification
| System Information | |
| Processor | Intel LGA4710 Socket supports Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W ) |
| System Memory | 8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 2TB |
| Watchdog Timer | System reset event 0 ~ 6553 seconds |
| BIOS | AMI UEFI BIOS |
| H/W Status Monitor | CPU temperature Fan speed and voltage monitoring Fan speed control Case open detection |
| TPM | TPM 2.0 onboard |
| IPMI | IPMI 2.0 with AST 2600 BMC controller onboard |

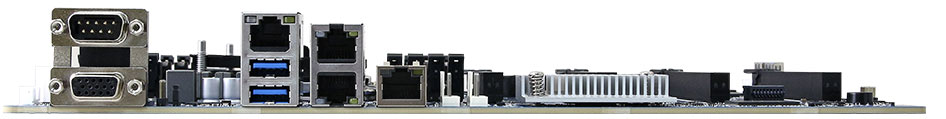

| Rear I/O | |
| USB | 2 x USB 3.2 Gen1 ports |
| COM Port | 1 x RS232 port |
| RJ-45 | 4 x RJ45 MGMT port for dedicated IPMI access only LAN1 port for 1GbE shared with IPMI access LAN2 and 3 ports for 10GbE |
| VGA | 1 x VGA port |
| Display | |
| Graphic Chipset | AST2600 BMC controller |
| Resolution | 1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp |
| Expansion | |
| Expansion | 4 x PCIe Gen5 x16 slots Slot 1, PCIe Gen5 x16 Slot 2, NA Slot 3, PCIe Gen5 x16 Slot 4, NA Slot 5, PCIe Gen5 x16 Slot 6, NA Slot 7, PCIe Gen5 x16(This Slot is closest to the CPU) |
| Storage | |
| M.2 | 2 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU 2260/2280/22110 form factor |
| I/O | |
| USB | 4 x Internal USB 3.2 Gen1 ports |
| SATA | 5 x SATA III (1 x Mini-SAS HD 4i (for 4 xSATA only) & 1 x 7pin SATA connector) |
| Serial | 1 x Internal RS232 port |
| Other | 1 x Slim SAS 4i (SFF-8654) connector |
| CMOS Battery | 1 x Horizontal Socket Type CMOS Battery Holder with CR2450 |
| Ethernet | |
| LAN Chipset | 1 x Intel I210AT 1GbE controller 1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports |
| LAN Port | 4 x RJ45 MGMT port for dedicated IPMI access only LAN1 port for 1GbE shared with IPMI access LAN2 and 3 ports for 10GbE |
| Mechanical & Environmental | |
| Operating Temp. | 0 ~ 55°C (32 ~ 131°F)to support up to 350W TDP CPU 0 ~ 55°C (32 ~ 131°F)to support up to 270W TDP CPU |
| Storage Temp. | -40 °C to 85 °C |
| Operating Humidity | 40°C 95% non-condensing |
| Dimension (L x W) | 12” x9.6” (304.8mm x 243.84mm) , PCB thickness is 2.59mm |
| Software Support | |
| OS | Windows 11 SAC and LTSC Windows Server 2025 Ubuntu Red Hat Enterprise Linux (RHEL) |
Ordering Information
| HPM-GNRUAA-A1R | ATX 1xLGA4710 Intel Xeon6/E610 8xDDR5/4xPCIex16/2x10GbE/1x1GbE/6xUSB3/5xSATA3 |
| HPM-GNRUAL-A1R | ATX 1xLGA4710 Intel Xeon6/ 8xDDR5/4xPCIex16/1x1GbE/6xUSB3/5xSATA3 |
