AS-UTX-115
UTX Motherboard supports Intel® Apollo Lake SoC Processor. 2 x 204-pin SO-DIMM up to 16GB DDR3L
- Intel® Apollo Lake SoC Processor
- 2 x 204-pin SO-DIMM up to 16GB DDR3L 1867 MHz (8GB per DIMM)
- 2 x USB 3.1 Gen1, 3 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B, 1 x SIM slot, 1 x COM
- 2 x Realtek 1 Gigabit LAN
- Supports triple display, 2 x HDMI 1.4b, 1 x LVDS
- TPM header
- 12V DC-In/ 4-pin ATX PWR Con
Datasheet
Product Specification
| Processor System | |
| CPU | Intel® Apollo Lake SoC Processor UTX-115J (J3455, QC, 1.5 GHz, 10 W) UTX-115D (N4200, QC, 1.1 GHz, 6 W) UTX-115L (N3350, DC, 1.1 GHz, 6 W) |
| Chipset | SoC |
| BIOS | AMI SPI 128 Mbit |
| Form Factor | |
| Dimensions | UTX (4.4-in x 4.6-in, 11.2 cm x 11.7 cm) |
| Memory | |
| Technology | Dual Channel DDR3L 1866 MHz |
| Capacity | 16 GB (8GB per DIMM) |
| Socket | 2 x 204-pin SO-DIMM |
| Graphics | |
| Controller | Intel® Gen9 Graphics DX 12 |
| HDMI | HDMI 1.4b Max resolution up to 4096 x 2160@24Hz |
| LVDS | Dual channel 24 bit up to 1920x1200@60Hz |
| MultiDisplay | Triple Display |
| Expansion Slot | |
| M.2 | 1 x M.2 (KEY E, 2230) with PCIe x1 and USB 2.0 for Wireless |
| SIM Socket | 1 x Socket connected to M.2 Key_B |
| Audio | |
| Interface | Realtek ALC233, High Definition Audio,Line-out,Mic-in |
| Ethernet | |
| Controller/ Speed | 2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps |
| Connector | 2 x RJ-45 |

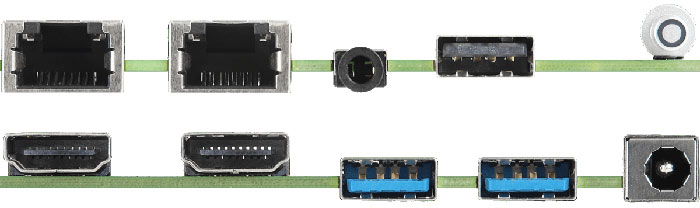

| Front I/O | |
| HDMI | 2 x HDMI 1.4b |
| USB | 2 x USB 3.1 (Gen1) |
| DC Jack | 1 |
| Audio | 1 (Mic-in or Line-out) |
| Rear I/O | |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 1 x USB 2.0 |
| Internal Connector | |
| USB | 1 x USB 2.0 (2 x 2.54 pitch header) |
| COM | 1 x COM (RS232) |
| TPM | TPM Header |
| LVDS | 1 |
| Storage | |
| M.2 | 1 x M.2 (KEY B, 3042) with USB 2.0 + SATA/PCIe x2 + SIM for 4G |
| eMMC | 32GB/64GB |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments 0,1,2....255sec |
| Power Requirements | |
| Input PWR | 12V DC-In/ 4-pin ATX PWR Con |
| Power On | AT/ATX supported AT: Direct PWR on as power input ready ATX:Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 60ºC |
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
